Olympus BX63 - Touch Panel and U-MCZ Controllers

10

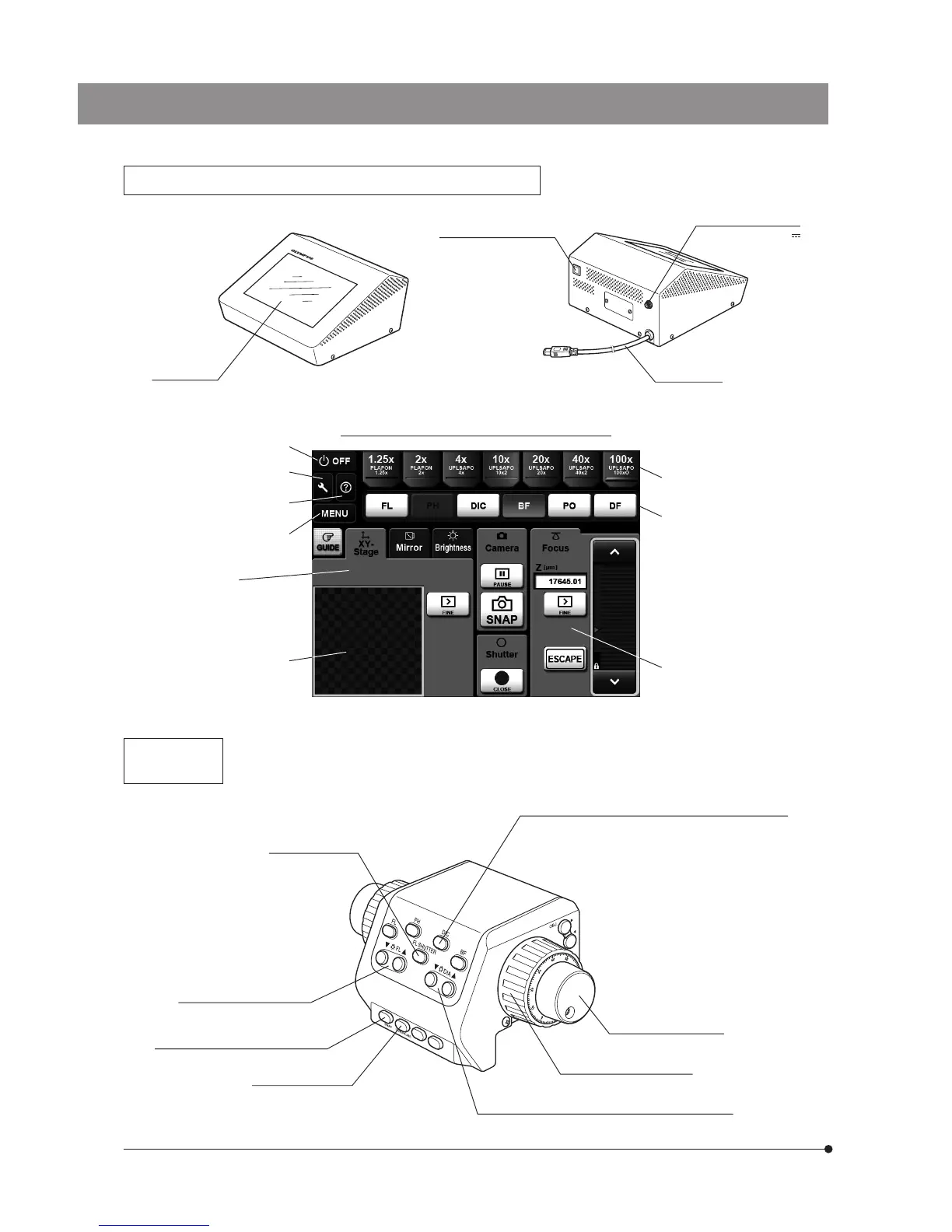

Touch panel controller (provided with the BX63F)
Example of touch panel guidance screen
OFF button
Setting button
Help button
MENU button
Control panel
(Variable depending on
observation mode.)
Screen
Objective buttons
Observation mode buttons
Focus control panel
Controller
U-MCZ
* For details, read the separate instruction manual for “BX3-CBH/U-MCZ”.
Coarse adjustment knob
Fine adjustment knob
Fluorescence brightness
control buttons st
SNAP (still image capture) button
LIVE/PAUSE button
Observation mode selector buttons
· PH: Phase contrast observation
· FL: Fluorescence observation
· DIC: Differential interference contrast observation
· BF: Brightfield observation
SHUTTER button
Transmitted light brightness control buttons st
Touch panel
Main switch
ON: Short push
OFF: Continuous push
DC input connector
24 V, 2.8 A
Signal cable
