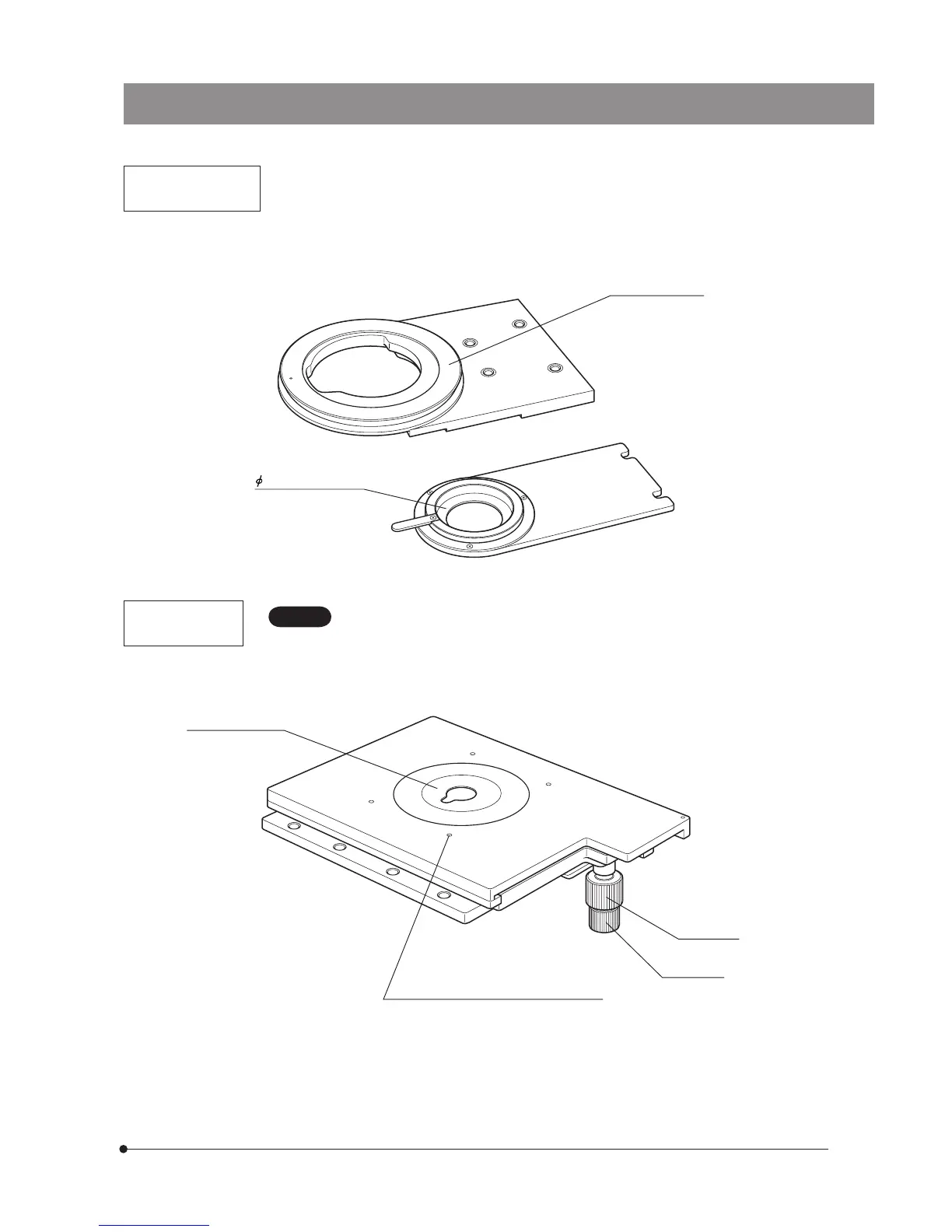

Stage Adapter
BX3-STAD
} This adapter is required when using the U-SVLB-4, U-SVRB-4, U-SVLO or U-SVRO stage for the BX series.
35 mm dish holder
Cross Stage
IX-SVL2
When installing this stage on the BX63, position it so that the stage knobs are on
the right.
Note that the BX3-UCD8A motorized universal condenser cannot be used when
this stage is installed.
CAUTION
Stage center plate
Y-axis knob
X-axis knob
IX-SCL stage clip mounting screw holes
}Use two holes on the front side.
(Do not use the holes on the rear side to
avoid interference with the objectives.)
Mounting dovetail
