ASSEMBLY
9

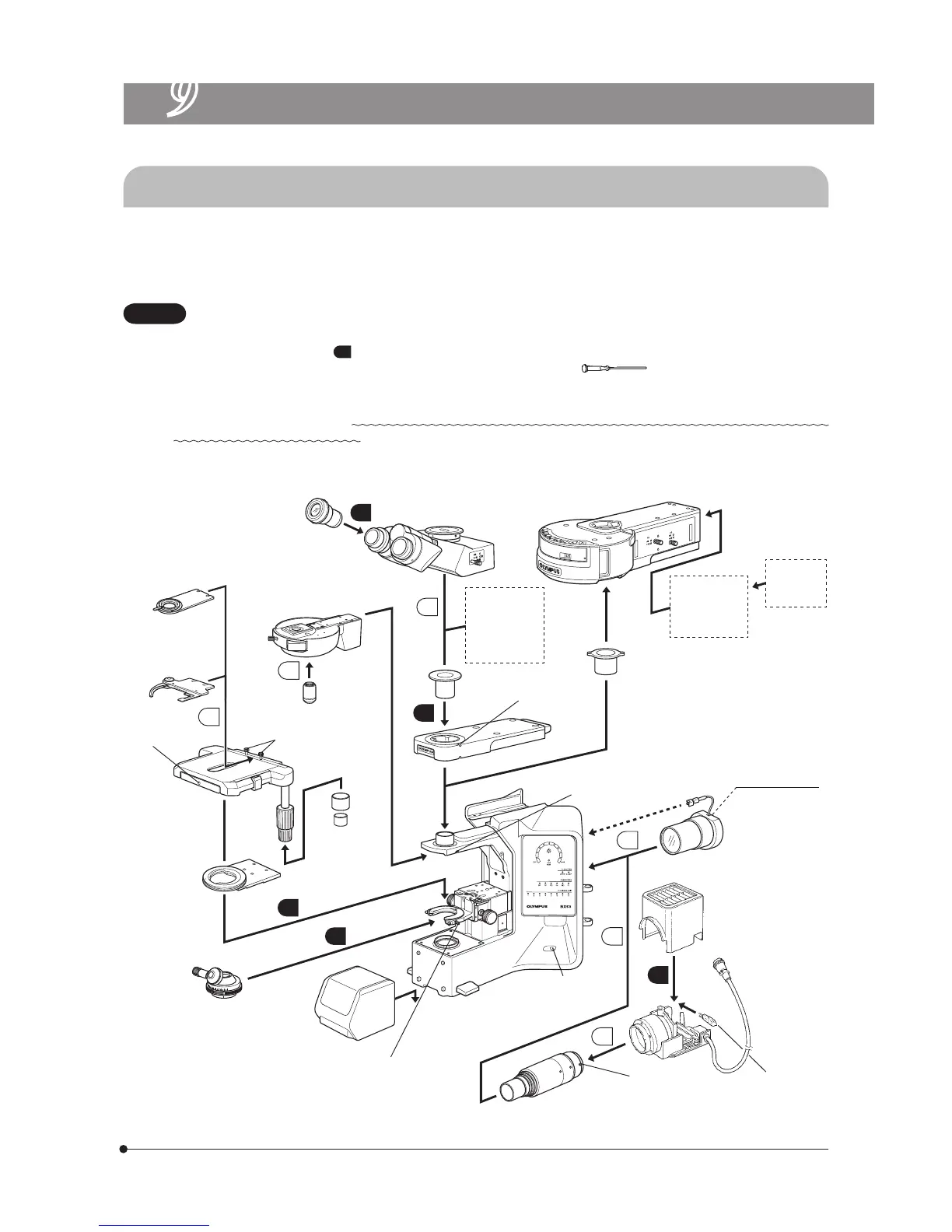

9-1 Assembly Diagram
} For the wiring of connection cables, refer to the instruction manual for “BX3-CBH/U-MCZ.”
The diagram below shows the sequence of assembly of the various modules. The numbers indicate the order of assembly.
The module model numbers shown in the following diagram are merely the typical examples. For the modules with
which the model numbers are not given, please consult your Olympus representative or the catalogues.
When assembling the microscope, make sure that all parts are free of dust and dirt, and avoid scratching
any parts or touching glass surfaces.
Assembly steps enclosed in
will be detailed on the subsequent pages.
} Most assembly operations are possible by using the Allen screwdriver (
) provided with the microscope.
However, the assembly of the BX3-ARM standard arm, the fluorescence illuminator (including the light shield tube for the
illuminator), BX3-SSU scanning stage with ultrasonic and the U-MCZ controller requires the use of the provided Allen
wrench for clamping the screws (to ensure the performance, we recommend that you have your Olympus representative
install or uninstall these modules).
CAUTION
Eyepieces
WHN10X
WHN10X-H
Dish holder
Slide holder
U-HLDT-4
U-HRDT-4
U-HLST-4
Revolving nosepiece
U-D7REA
U-D7RES
UIS2 series
objective
Stage clamping
knob
Stage
U-SVRB-4
U-SVLB-4
Slide holder
clamping knobs
Stage adapter
BX3-STAD
Condenser
U-SC3
U-AAC
BX3-UCD8A
Microscope frame
BX63F
Condenser
clamping knob
Observation tube
U-BI30-2
U-TR30-2
U-TBI3-CLI
U-TTR-2
Light
shield
tube
Observation tube
clamping screw
Standard
arm
BX3-ARM
Revolving nosepiece
clamping screw
Fluorescence illuminator
BX3-RFAA
BX3-RFAS
Light shield tube for
illuminator
Lamp housing
clamping screw
LED lamp housing
U-LHLEDC
Lamp housing for
100W halogen bulb
U-LH100-3
100 W halogen bulb
12V100WHAL-L
Lamp housing
adapter clamping
screw
Lamp housing adapter
U-LH100ADP
Lamp housing clamping
screws (x 2)
Intermediate
attachment
U-EPA2
U-DO3
U-TRU, etc.
Extension ad-
apter for lamp
housing
U-LHEAD
Reflected
light lamp
housing
Rubber caps
U-SHG
U-SHGT
