42

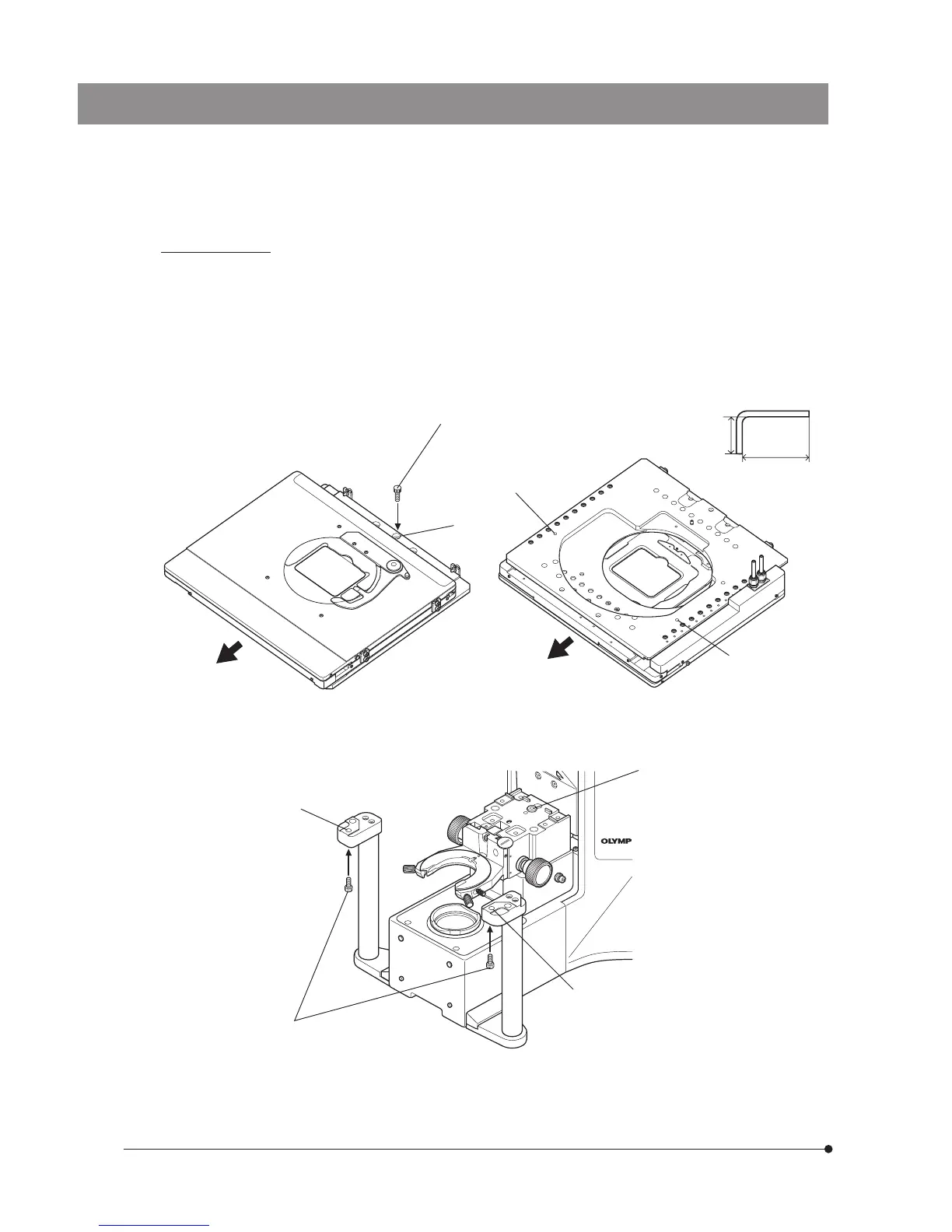

Installing BX3-SSU
1. Place BX3-SSU over BX63 so that the respective screw numbers (see the figure below) of BX3-SSU and BX63 are
overlapped.
2. Tighten the screw hole @ with the clamping screw (attached with BX3-SSU) from the upper side of BX3-SSU. Use Allen
wrench (40x70mm) attached with BX63 for tightening.
3. Tighten the screw holes 2 and 3 with the clamping screw (attached with BX63) from the lower side of the stage fixing
pillar of BX63. Use Allen wrench (40x70mm) attached with BX63 for tightening.
Clamping screw (attached with BX3-SSU)
}Tighten with Allen wrench (40x70mm).
Clamping screw (attached with BX3-SSU)
}Tighten with Allen wrench (40x70mm).
Allen wrench (AxBmm)
A
B
Front side
Front side
Upper side of BX3-SSU
BX63
Lower side of BX3-SSU
3
3
2
2
1
1
