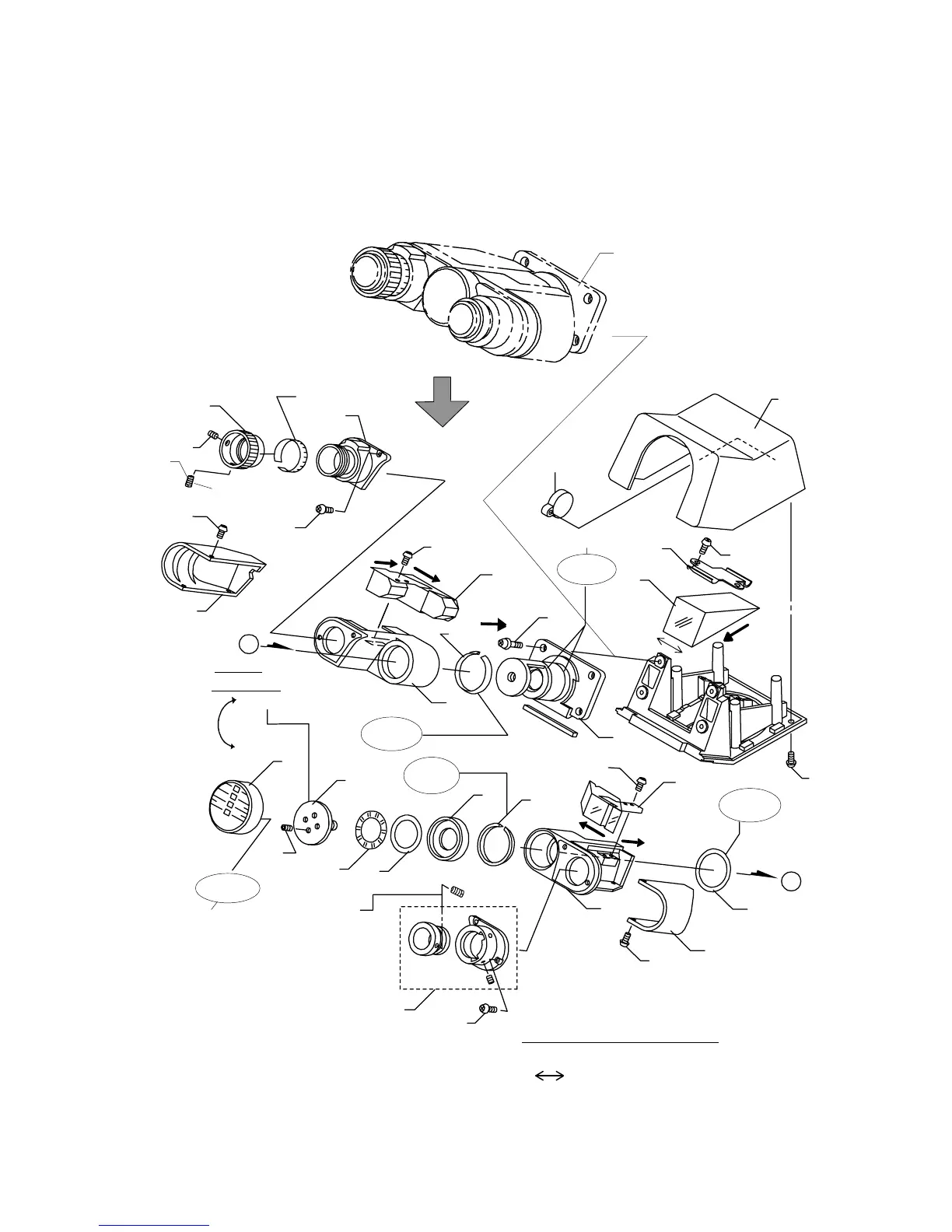

Olympus CKX31 - 4. Binocular tube (U-CBI30-2) for CKX41

A
A
(A)
(B)
(C)
(D)
(E)
(F)
(G)
(H)
(I)
(J)(K)
(L)
(M)
(N)
(O)
(P)
(Q)
(R)
(S)
(T)
(U)
(V)
Screw for
fixing eyepiece
Screw for
fixing eyepiece
4. Binocular tube ( U-CBI30-2) for CKX41
*1
*2
*3
*4
*5
*7
*8
*9
*10
*12
Anti-fungus
agent
heavy
light
Tension
adjustment:
Adhesive
tape
Grease;
OT3189
Grease;
OT3189
Grease;
OT3189
Grease;
OT3189
Scale seal
Contacting surface
Prism ass’y and inclined prism:
: Pushing direction when assembling
: Making it even in left and right direction
*11
C-7
CKX31/CKX41  C. DISASSEMBLY AND ASSEMBLY PROCEDURES
*6
*6: When removing diopter ring (F);
Loosen the scews (*5) and remove the
screw (*6) for fixing eyepiece.
Double-sided
