Disassembly and Reassembly ProcedureCLV-180
4-2
ISSUE1
1. Jigs and Tools
No. Name Specification Remark
1 Box bit Size 5.5 mm
2 Phillips bit (No1)
3 Phillips bit (No2)
4 Open head 10 mm, 14 mm
5 Torque driver 0.02~0.15 [Nm]
6 Torque driver 0.2~1.2 [Nm]
7 Torque driver 0.6~2.6 [Nm]
8 Long-nose Pliers
9 Nipper
10 Tweezers
11 Filter retaining jig
12 Diaphragm positioning jig
13 Heat cover positioning jig

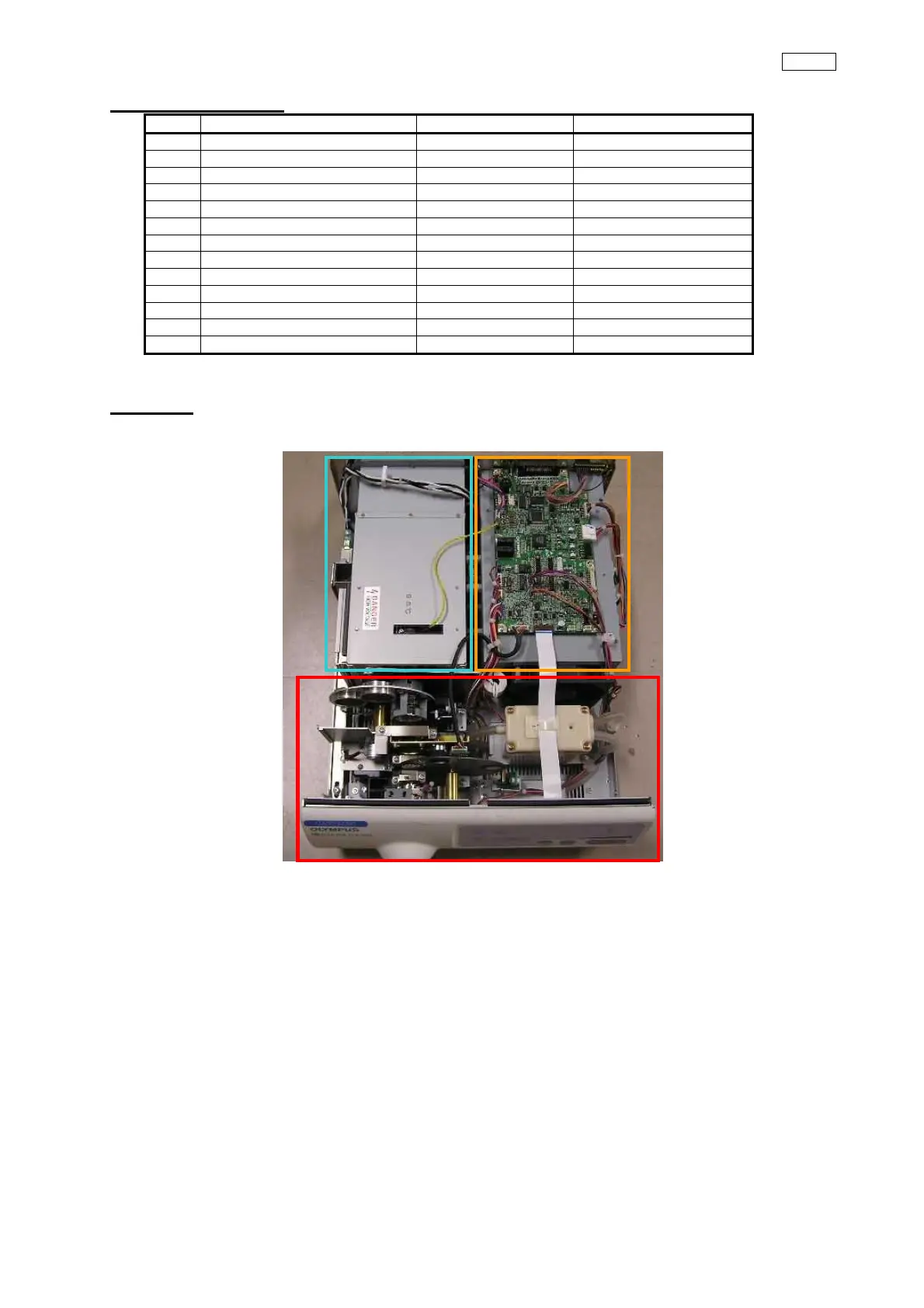

2. Areas
Disassembling procedure is described by 3 areas.
C
B
A
