Olympus CX23 User Manual

7
CX23

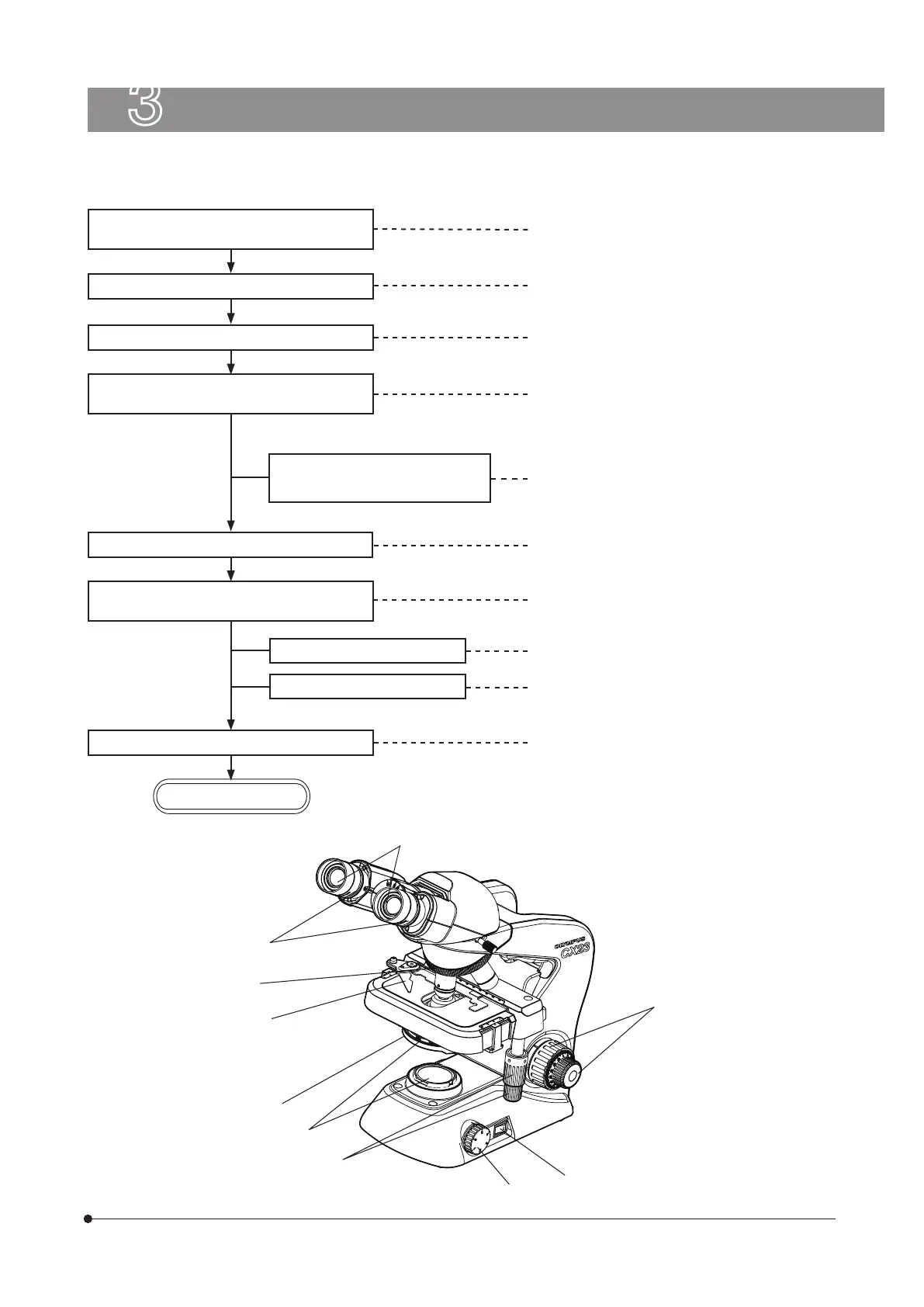

3 Summary of brightfield observation procedure
Set the specimen on the stage.
Engage the 10X objective in the light path.
Engage the objective to be used in the light
path and bring the specimen into focus.
Adjust the interpupillary distance.
Adjust the diopter.
Adjust the brightness.
Observation.
(Operation portion) (Page)
a Filters (Diameter: 45 mm) (p.6)
Turn “ I ” (ON) the main switch
and adjust the brightness.
5 Revolving nosepiece (p.12)
6 Coarse/fine focus adjustment knobs (p.9)
2 Brightness adjustment knob (p.8)
9 Aperture stop lever (p.10)
5 Revolving nosepiece (p.12)
6 Coarse/fine adjustment knobs (p.9)
Engage the required filters.
Adjust the aperture iris diaphragm.
9 Aperture stop lever (p.10)
Adjust the aperture iris diaphragm.
1 Main switch (p.8)
2 Brightness adjustment knob (p.8)
3 Specimen holder (p.8)
4 X-axis/Y-axis feed knobs (p.8)
7 Binocular tube (p.10)
8 Diopter adjustment ring (p.11)
a
1
2
3
4
5
7
6
9
8
Bring the specimen into focus
and adjust the brightness.
2 Brightness adjustment knob (p.8)

Olympus CX23 Specifications

General

Type	Biological Microscope
Observation Method	Brightfield
Objective Lenses	4x, 10x, 40x, 100x (oil immersion)
Stage	Mechanical Stage
Illumination	LED
Condenser	Abbe condenser (NA 1.25)
Optical System	UIS2 (Universal Infinity System)
Magnification	40x to 1000x
Power Supply	AC 100-240V, 50/60Hz
Eyepiece	10x (FN 20)
Focusing	Coaxial coarse and fine focusing
