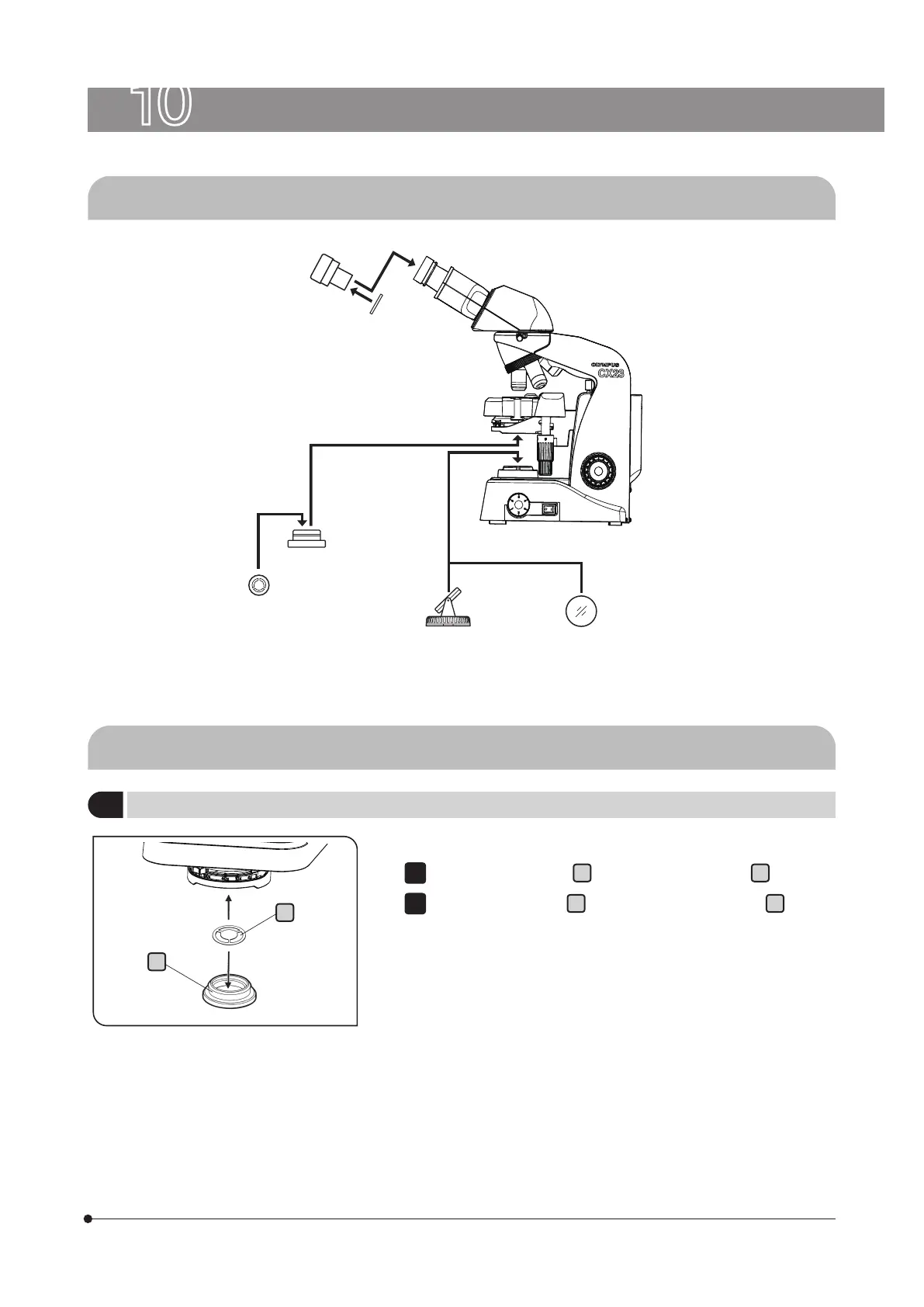

10-1 System diagram of optional accessories
10 Optional accessories
10-2 Installation and operation of optional accessories
1
Filter holder CH2-FH and darkfield ring CH2-DS
} This holder accommodates the CH2-DS darkfield ring.
Insert the darkfield ring
a
in the CH2-FH filter holder
b
.
Push the filter holder
b
containing the darkfield ring
a
into the
bottom of the condenser until it clicks into place.
} The darkfield ring enables darkfield observation using an objective
from 4X to 40X.
1
2
a
b
Eyepieces
WHSZ15X-H
Eyepiece
micrometer
Darkfield ring
CH2-DS
Filter holder
CH2-FH
Microscope frame
CX23
Reflection
mirror
CH20-MM
45 mm filter
