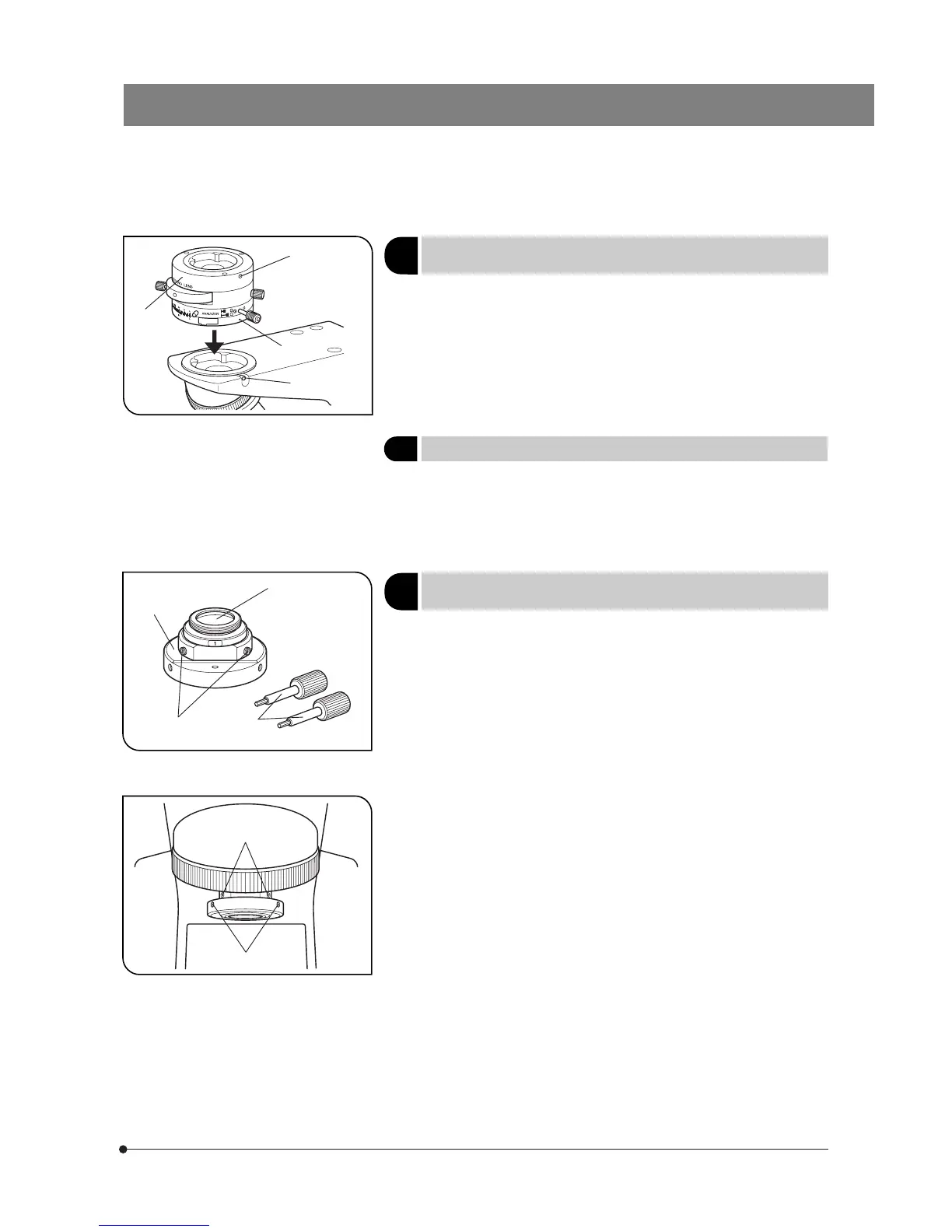

Olympus CX31-P - Mounting Tubes and Adapters

25
CX31-P
Fig. 32
Mounting the U-CTAD Centering
Adapter for Objective Lens
1
Fig. 31
Fig. 33
Mounting the U-PA Intermediate
Tube for Polarizing Observation
4
Mounting the Observation Tube
(Fig. 31)
1. Fully loosen the observation tune clamping screw 4 of the intermediate
tube for polarizing observation 2 using the Allen wrench.
2. Fit the circular dovetail at the bottom of the observation tube into the
observation tube mount of the attachment, bring the binocular tube at
the operator’s position and tighten the clamping screw 4.
#The accuracy of the centering adapter for objective lens is guaran-
teed using the fixed combination of mount 1 and centering seat
2 by giving the same identification numbers. Do not change the
combination.
Also do not use the unit in combination with another centering
adapter for objective lens.
1. Using the centering knobs 3 provided with the centering adapter for
objective lens, loosen the two screws 4 clamping the mount 1 and
centering seat 2 to separate them.
2. Screw the mount 1 firmly into the revolving nosepiece.
3. Insert the centering seat having the same identification number as the
mount attached to the revolving nosepiece, and tighten the two clamping
screws 4. At this time, set the combination so that both of the two center-
ing holes 5 are uniformly visible from the front. Otherwise, it would be
impossible to attach another centering seat.
3
(Fig. 31)
}For the mounting method of other intermediate tube models, refer to their
instruction manuals.
1. Fully loosen the observation tube clamping screw 1 of the microscope
frame using the Allen wrench provided with it.
2. Fit the circular dovetail at the bottom of the intermediate tube for
polarizing observation 2 into the observation tube mount by aligning the
positioning index · 3 with the clamping screw position 1 and tighten the
clamping screw 1.
6
(Figs. 32 & 33)
2
3
4
1
4
2
3
4
5
