CX31-P
CONTROLS
}If you have not yet assembled the microscope, read Chapter 9, “ASSEMBLY” (pages 23 to 26) first.

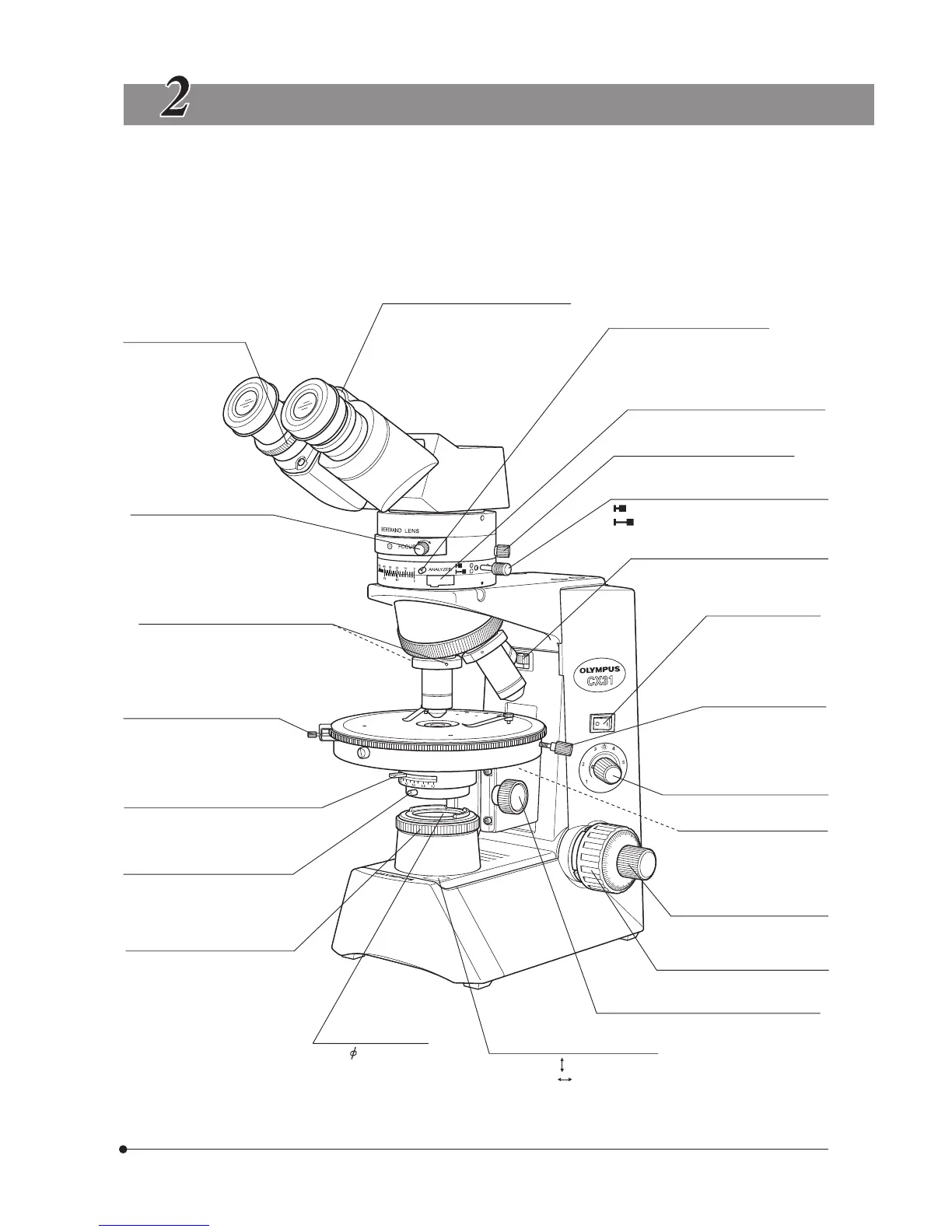

· The illustration shows the microscope together with the U-BI30P binocular observation tube for polarizing observation
U-PA intermediate tube for polarizing observation and U-CTAD centering adapter for objective lens.
Interpupillary distance scale (Page 9)
Diopter adjustment ring
(Page 9)
Bertrand’s lens engaging/
focusing knob (Page 11)
) : IN. ( : OUT.
Objective centering screws (Page 17)
Stage rotation clamping knob
Aperture iris diaphragm lever (Page 13)
Field iris diaphragm ring (Page 8)
Test plate/compensator insertion slot
Analyzer rotation assist knob
Provided on 2 positions.
Analyzer clamping knob (Page 11)
Analyzer engaging/rotation knob (Page 11)
) : IN.
( : OUT.
Simplified pre-focusing knob (Page 9)
Main switch (Page 8)
Light intensity adjustment knob
(Page 8)
Stage centering knobs
Provided on both sides
Fine adjustment knob (Page 9)
Coarse adjustment knob (Page 9)
Condenser height adjustment knob (Page 13)
Oscillation direction indications
A : Analyzer
P : Polarizer
Filter holder
For 45 mm filters.
Polarizer rotation knob (Page 15)
Condenser centering knobs
Provided on both sides
