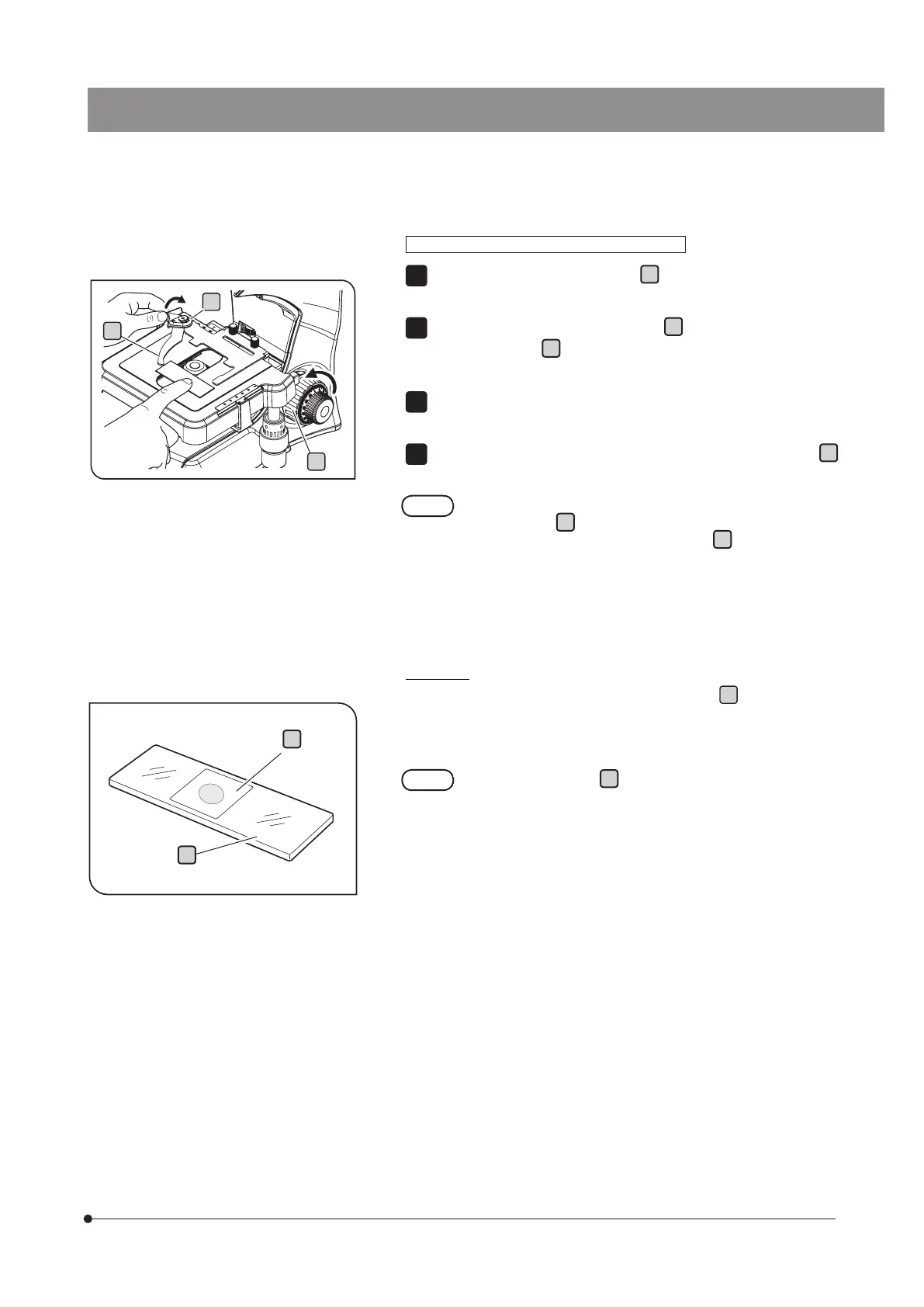

When using the specimen holder CX3-HLDT
(Option)
Rotate the coarse focusing knob
a
in the arrow direction to fully
lower the stage.
Press the specimen holding lever knob
b
backward (arrow direction)
to open the lever
c
, and slide the specimen from front to back on
the stage to place it.
After placing the first specimen until it touches the end, place the
second specimen so that it touches the first specimen.
After placing the specimens, return the specimen holding lever
c
gently.
Place the specimen carefully. If you return the specimen
holding lever
c
with excess force or release your hand
from the specimen holding lever knob
b
in the middle,
the lever may collide with the slide glass to damage it.
1
2
3
4
Slide glass
It is recommended to use the following slide glasses
a
.
Length: 76 mm, Width: 26 mm, Thickness: 0.9 to 1.4 mm
(Thickness: 0.9 to 1.2 mm for darkfield observation)
Use the cover glass
b
with the thickness of 0.17mm to
fully deliver the performance of objective.
b
c
a
