18

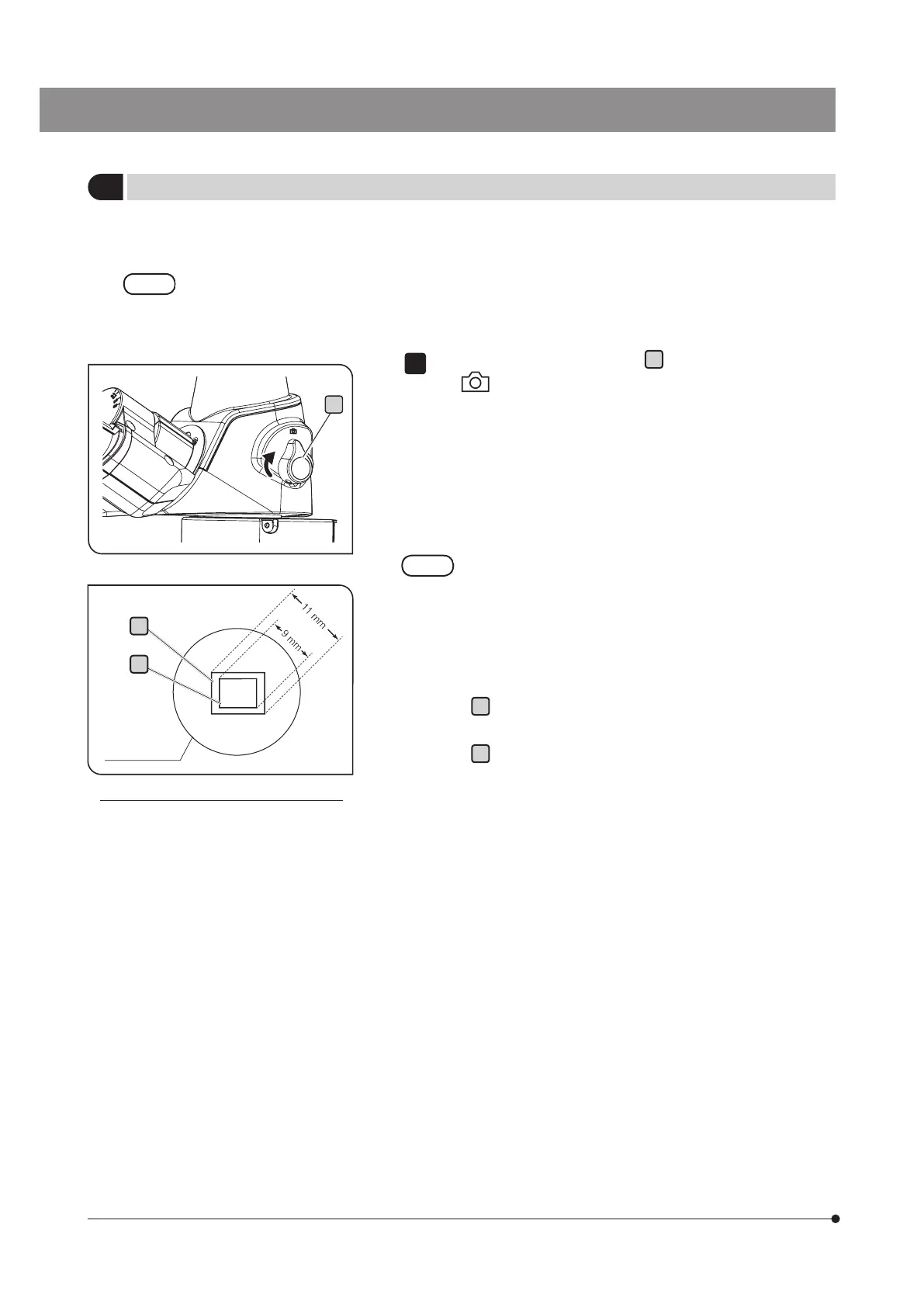

The observed image can be acquired by attaching the camera adapter and the digital camera for microscope to the
trinocular tube. (For attaching the camera adapter and the camera, see page 30.)
When using the camera adapter, be sure to adjust the parfocality. Otherwise, the image through
eyepieces and the image acquired by the camera are not focused at the same position.
For procedures to adjust the parfocality, refer to the instruction manual of the respective camera
adapter.
The image acquisition range is determined by the size of the
image sensor used in the camera and the magnification of
the camera adapter.
The comparison between the observation range by standard
10X eyepieces and the image acquisition range by the
camera is shown in the picture on the left.
10
Acquiring the image with the camera
a
b
Observation
range by
standard 10X
eyepieces
Rotate the light path selection knob
a
of the trinocular tube to move
it to
position. (See page 9.)
1
When using the camera adapter 1 x (U-TV1XC)
a
Digital camera for microscope (DP22)
Image sensor size (diagonal): 1/1.8-inch (9mm)
b
Digital camera for microscope (DP27)
Image sensor size (diagonal): 2/3-inch (11mm)
a
