13
CX33
How to track the
image that moves
to the left (how to
move the image to
the right)?
Move the
specimen to the
front.
How to move
the image in the
lower area to the
upper area?
Move the
specimen to the
left.

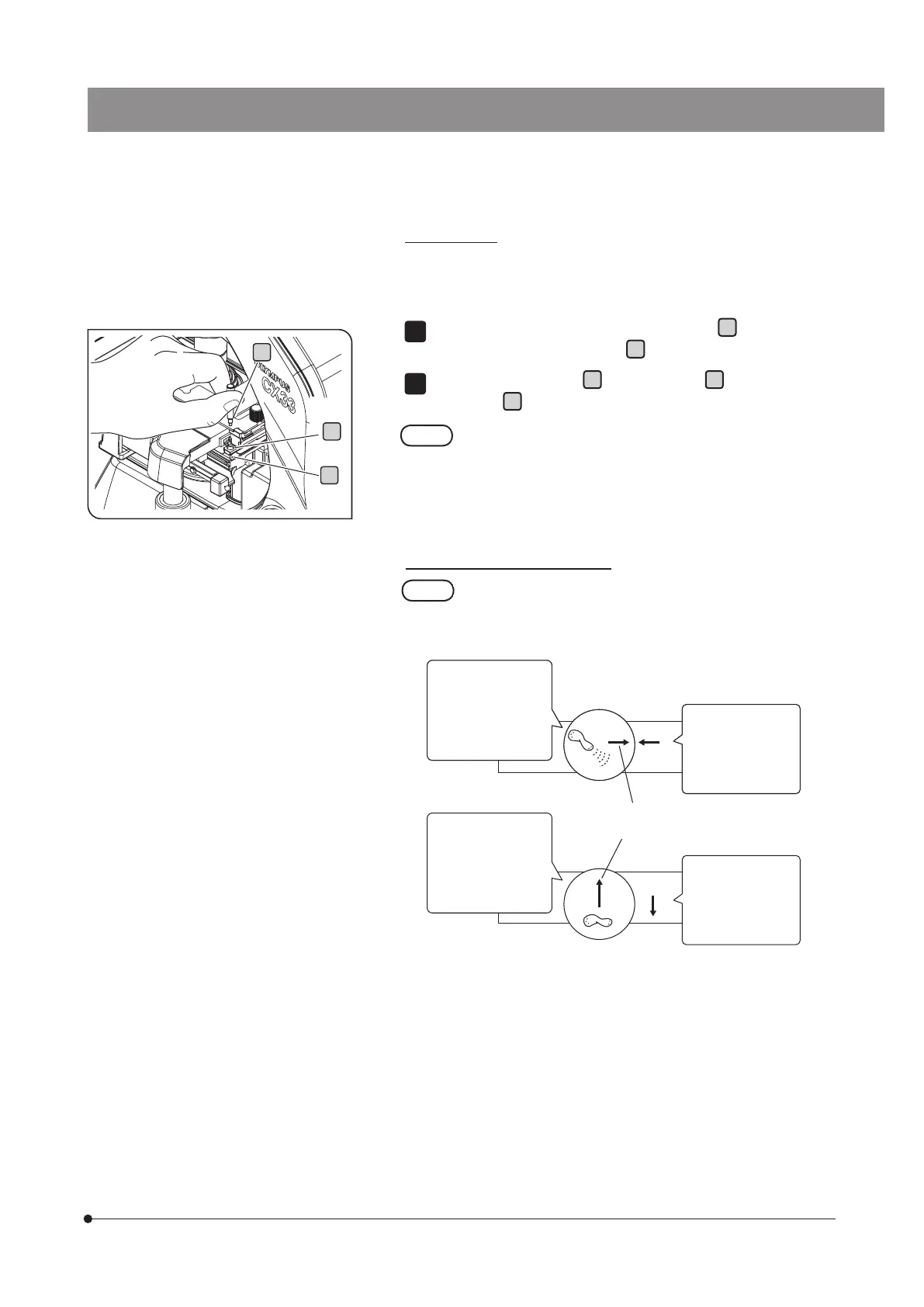

Direction of moving the image
How to track an observation image
The up-down and left-right movements of the image
observed through eyepieces are opposite to the
movements of the specimen.
Fixing the stage
If you want to move the observation position by moving the specimen with
your finger without using the specimen holder, the stage can be fixed so
that it does not move unexpectedly.
Move the X-axis/Y-axis knobs to match the hole
a
at the back right
of the stage with the screw hole
b
.
Put the stage fixing knob
c
through the hole
a
, and screw it in the
screw hole
b
to fix the stage.
The stage fixing knob is provided with the microscope.
Be sure to store the stage fixing knob in the safe place.
1
2
b
a
c
To Next Page
