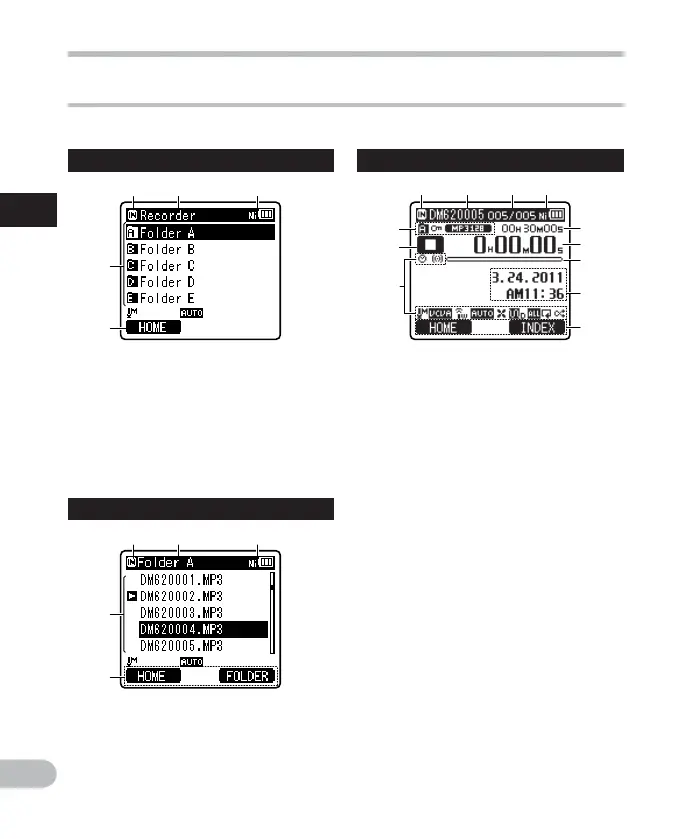

Display (LCD panel)
1 Recording media indicator
[l]: Built-in flash memory
[
m]: microSD card
2 Current folder name
3 Battery indicator
4 Folder name
5 Function guide indicator
File list display
1 Recording media indicator
2 Current folder name
3 Battery indicator
4 File name
5 Function guide indicator
4 [Recorder] mode display:
File display
1 Recording media indicator
2 Current file name
3 Current file number/ Total
number of recorded files in the
folder
4 Battery indicator
5
Folder indicator, File Lock indicator,
Recording mode indicator
6 Recorder status indicator
[K]: Record indicator
[
≠
]: Pause indicator
[
L
]: Stop indicator
[•]: Play indicator
[ß]: Forwarding indicator
[
™
]: Rewinding indicator
[N]: F. Play indicator
[
M
]: S. Play indicator
7 Icon display (☞ P.14)
8 Remaining recording time,
File length
9 Elapsed recording time,
Elapsed playback time
0 Remaining memory bar indicator,
Playback position bar indicator
!
Level meter, Recording date and time
@ Function guide indicator
Folder list display
