DP72
14
4
Connecting the Cables
The cords and cables are vulnerable to bend or twist. Do not apply
excessive force to them.
Be sure to switch off the computer before proceeding to the
connections.
Always use the cables designated by Olympus.

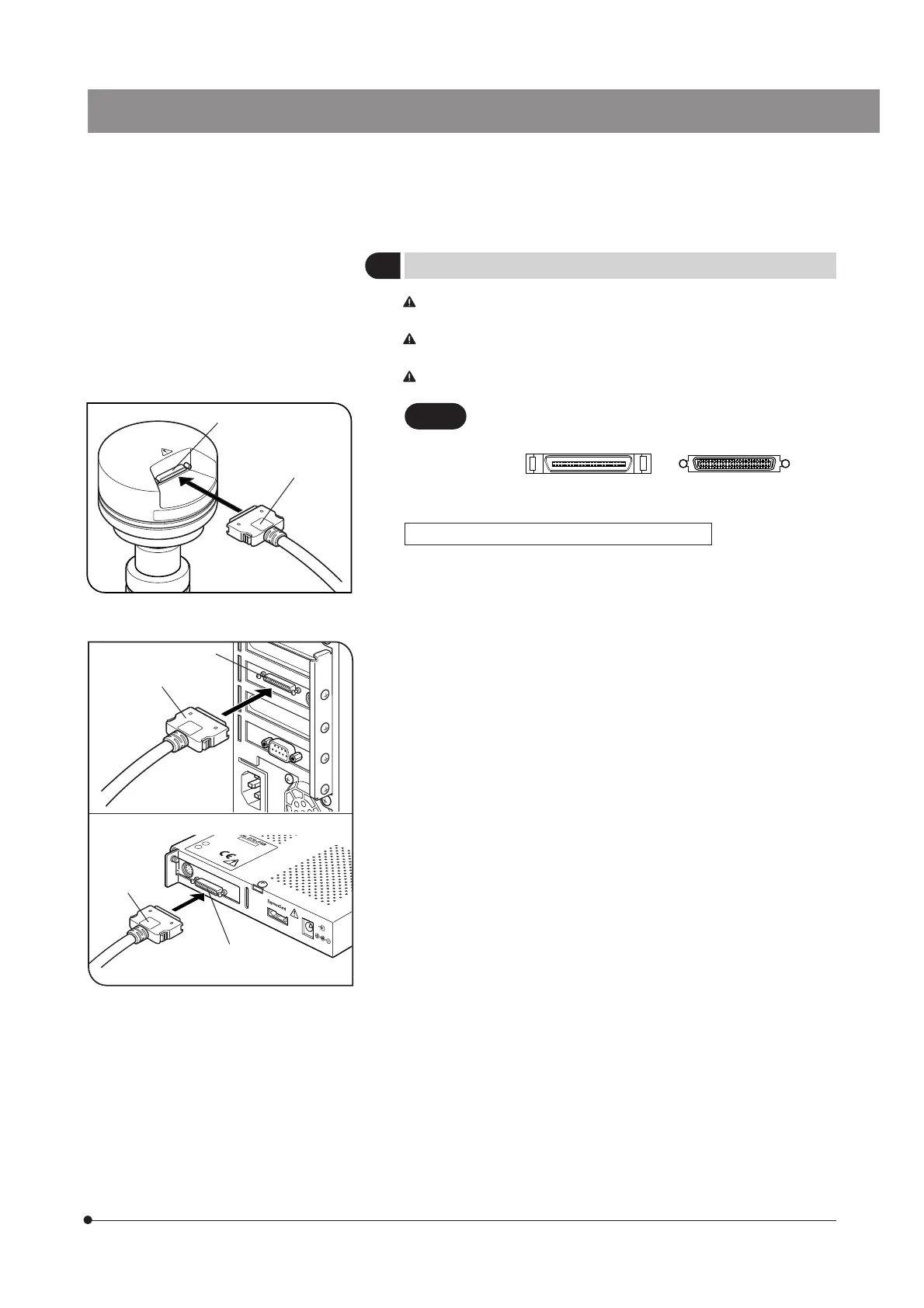

1. Push the connector @ on one end of the interface cable into the connector
² on the camera head until it clicks, and check that the interface cable
is will not slip out.
2. Push the connector ³ on the other end of the interface cable into the
connector | on the camera head until it clicks, and check that the cable
will not slip out.
Fig. 9
Fig. 10
²
@
Computer
PCIe Extension Box
|
³
|
³
NOTE When connecting the cable, insert the connector plug in
the proper direction.
Connecting the Interface Cable (Figs. 9 & 10)
Cable side Device side
To Next Page
