Olympus DP72 - Image Recording Procedure; Brightfield Observation; Fluorescence Observation

23
IMAGE RECORDING PROCEDURE
(Notes) The encircled numbers indicate the control positions in the windows shown on the next page.
For detailed operating procedures, refer to the instruction manual for the DP2-TRAIN.
*1. “TWAIN-compatible application” means software with TWAIN interface compatibility such as Photoshop*, Microsoft
Office*, etc. (*: Operations of these applications have been confirmed.)
*2. With Photoshop, DP2-TWAIN can be launched by selecting [File]-[Import]-[OLYMPUS DP2-TWAIN2.1].
For how to launch DP2-TWAIN from other TWAIN-compatible application, refer to the manual for the TWAIN-
compatible application.
*3. For zooming, scrolling and image saving, refer to the manual for the TWAIN-compatible application.

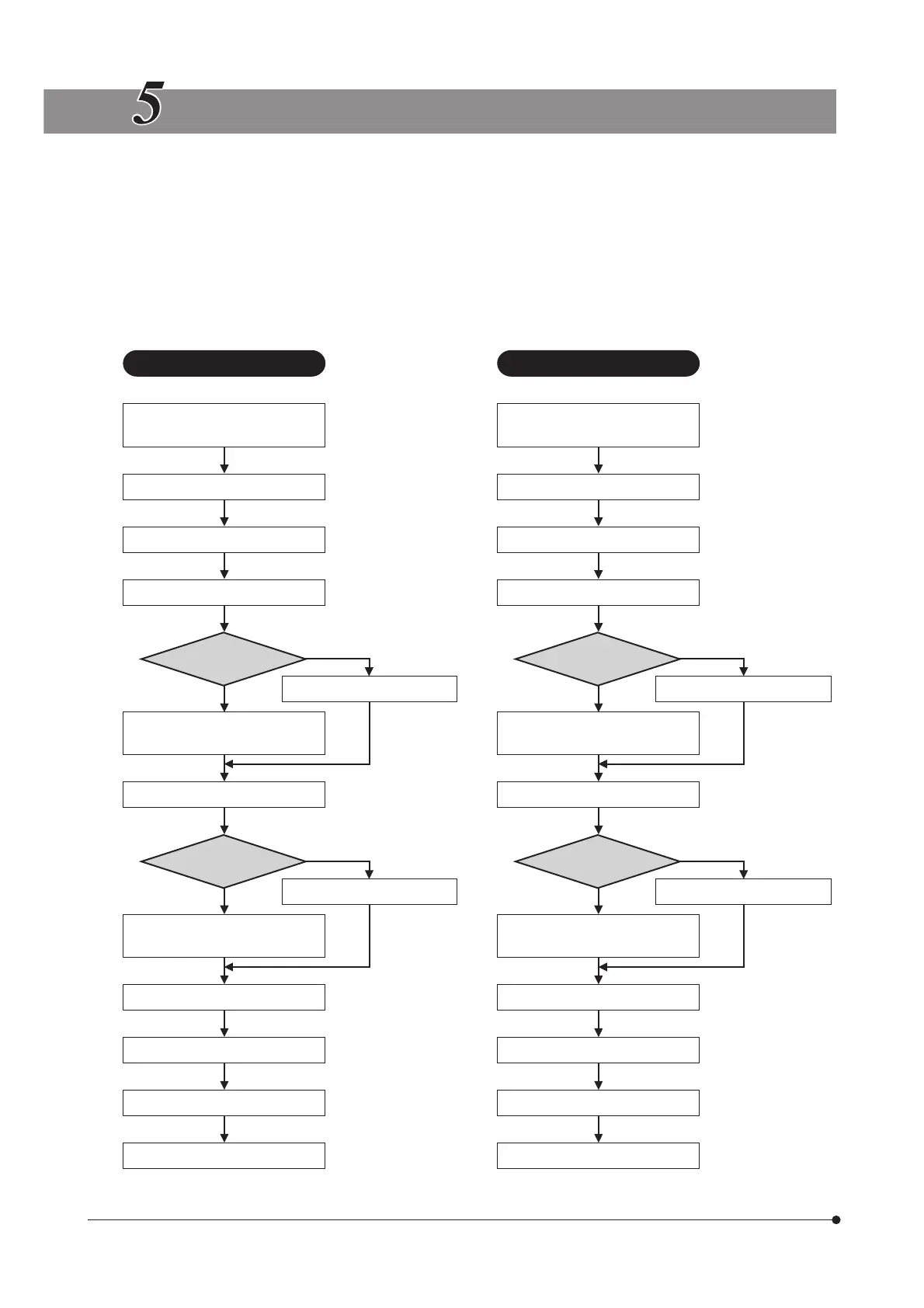

Brightfield Observation Fluorescence Observation
Launch TWAIN-compatible
application.
Launch TWAIN-compatible
application
Launch DP2-TWAIN.
Launch DP2-TWAIN.
Set up the microscope. Set up the microscope.
@ Set the exposure mode. @ Set the exposure mode.
Exposure mode?
Manual
Exposure mode?
Manual
Auto
² Set the exposure time.
SFL Auto
² Set the exposure time.
³ Select the area (30%, 1%,
0.1%, full-image).
³ Select the area (30%, 1%,
0.1%, full-image).
Perform framing and focusing. Perform framing and focusing.
Exposure mode?
Manual
Exposure mode?
Manual
²
Fine-adjust the exposure time. ² Fine-adjust the exposure time.
Auto SFL Auto
| Move the area and correct
exposure.
| Move the area and correct
exposure.
5 Adjust the white balance. 7 Adjust the black balance.
6 Record an image. 6 Record an image.
Perform zooming or scrolling. Perform zooming or scrolling.
Save the image. Save the image.
*1 *1
*2 *2
*3 *3
*3 *3
