DSX1000

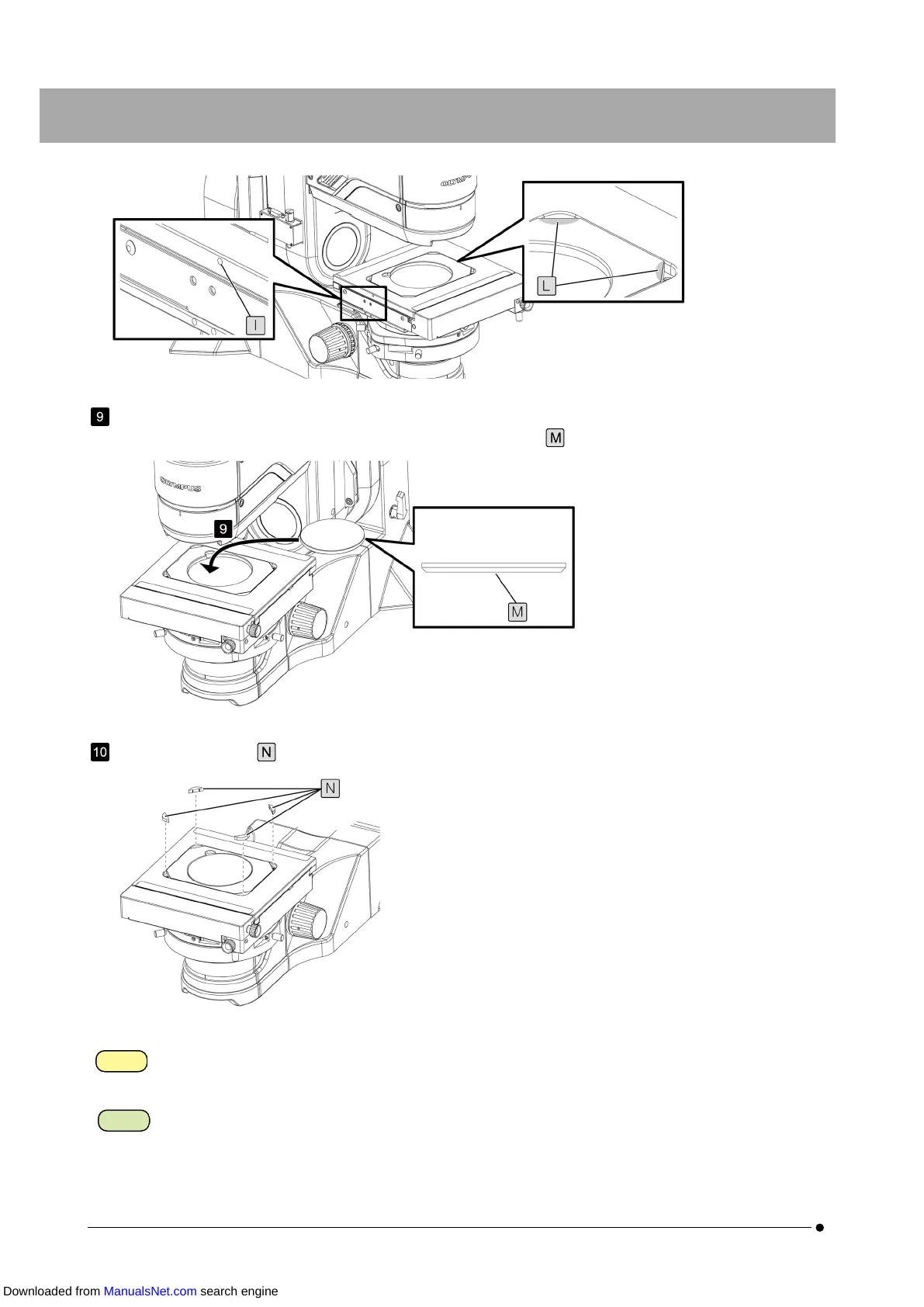

Place either the high-precision plate or the black-and-white plate on the stage.
In the case of the high-precision plate, place the obliquely-cut surface facing down.
Attach the rubber caps (4 pcs.) provided with the stage to the holes at four corners of the stage.
If you attach the rotatable motorized XY stage DSX10-RMTS, the centering and the XY alignment are necessary.
For details, see "1.9 Stage Adjustment" in Operation manual.
To detach the motorized stage, perform the procedure described above in reverse order.
36
8. Assembly
