DSX1000

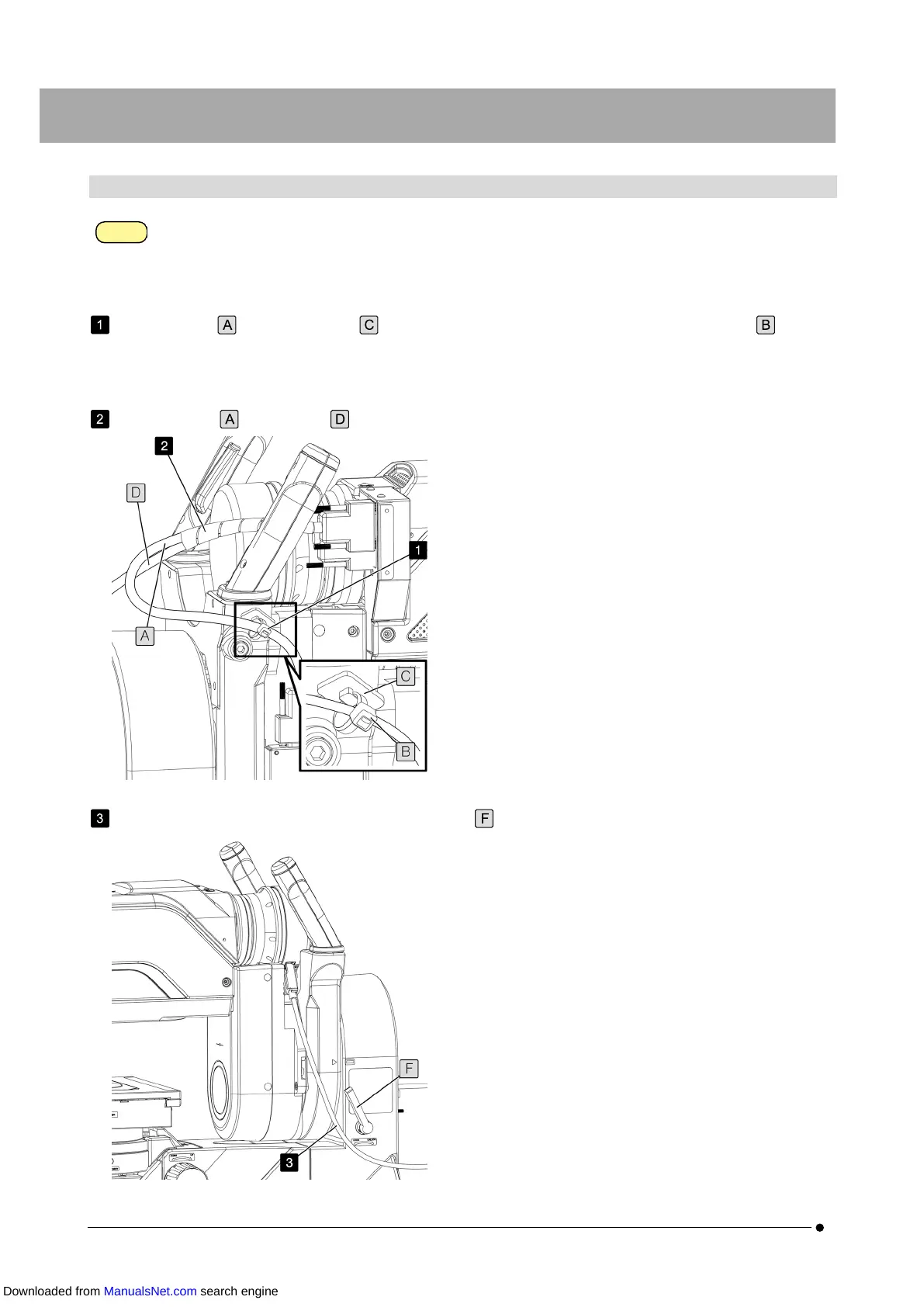

8.10.1 Routing the cables
Route the cables giving plenty of length to allow the zoom head or the stage to move without tension.
Particularly, the camera cable of the zoom head must be routed so as not to be caught in the zoom head in all
stroke range.
Secure the cable at the cable binder position of the tilting frame DSX10-TF using the cable binder provided
with the tilting frame DSX10-TF.
(The illustration shows the case of the tilting frame DSX10-TF, but the same cable binder is also attached to the upright
frame DSX10-UF.)
Bundle the cable and the cable with the spiral tube provided with the zoom head.
Route the camera cable passing under the tilting lock lever .
46
8. Assembly 8.10 Connection/disconnection of cables
