DSX1000

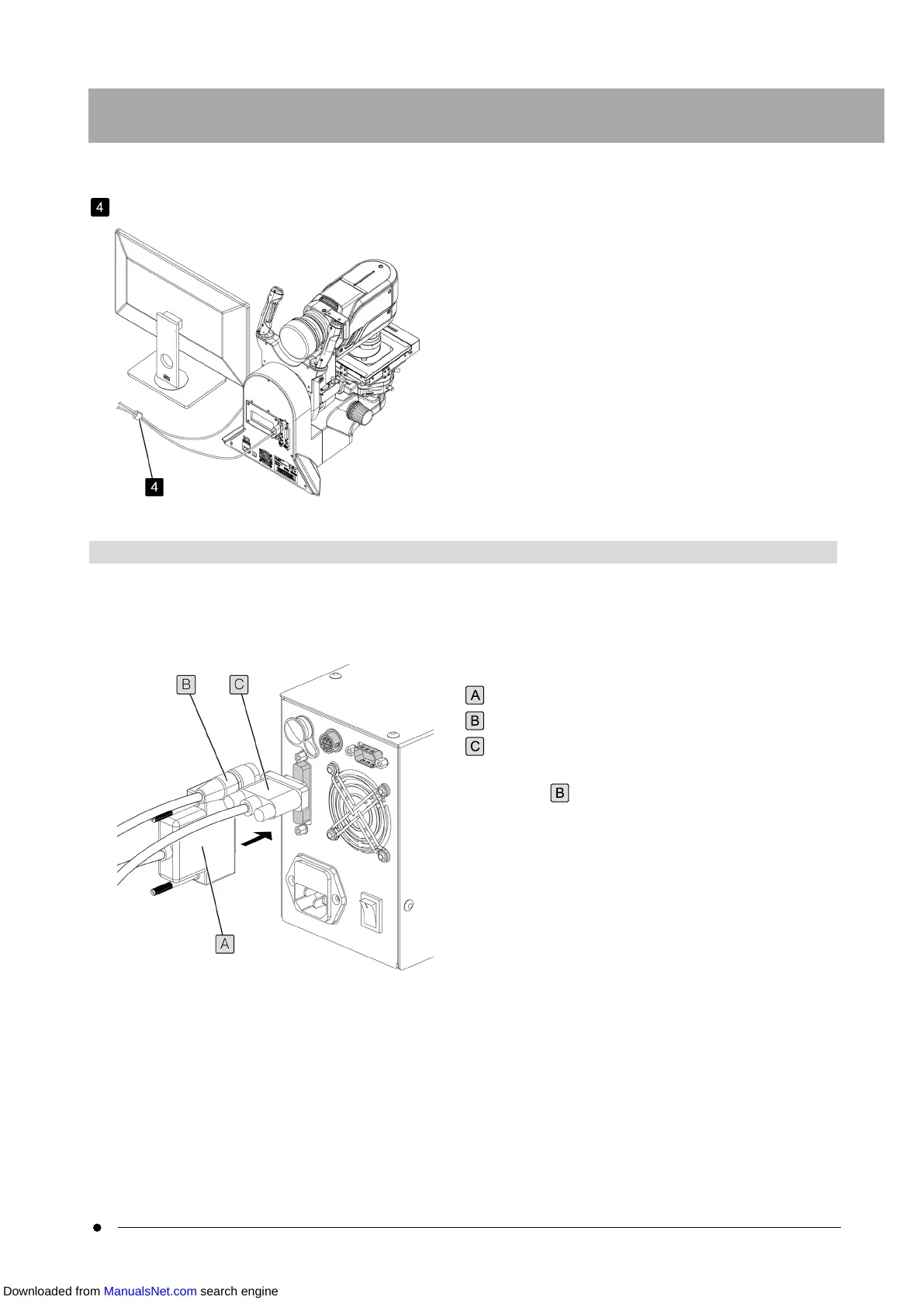

Bundle the camera cable and the RS232C cable with the Velcro tape provided with the zoom head.
8.10.2 Connecting with the control box (Optional)
If you want to enable the functions of the digital microscope using the microscope frame other than the DSX1000 series
microscope frame (DSX10-TF or DSX10-UF), connect the control box DSX10-CB.
This procedure is necessary only for the user who purchased the zoom head alone.
Connection to:
Zoom head DSX10-UZH/DSX10-SZH
Console DSX10-CSL
Controller PC (Serial port)
The cable can be connected to either [OUT1] or
[OUT2] on the back of the control box.
47
8.10 Connection/disconnection of cables8. Assembly
