Olympus E-M1 - Page 43

11 EN
Preparing the camera and  ow of operations
1
1
7
5
4
8
0
9
a
f
b
c
e
d
g
h
6
3
2
i
j
k
l
m
n

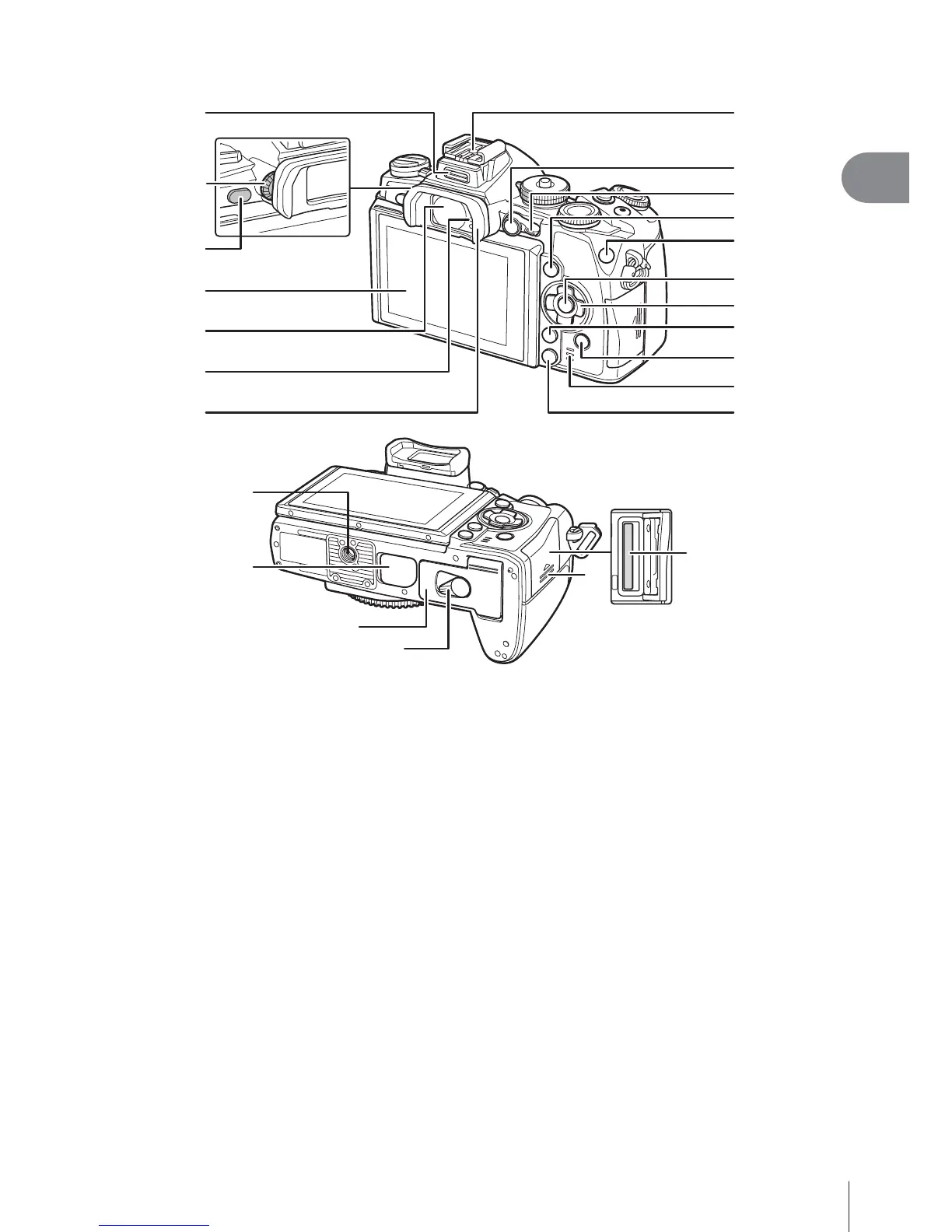

1 Accessory port ..............................P. 108
2 Diopter adjustment dial ...................P. 20
3 u (LV) button ..............................P. 19
4 Monitor (Touch screen)
................................P. 16, 27, 34, 36, 60
5 View nder ..........................P. 19, 20, 39
6 Eye sensor
7 Eyecup ..........................................P. 133
8 Hot shoe .......................................P. 130
9 AEL/AFL button..................P. 32, 49, 98
0 Lever ..................................P. 38 – 41, 91
a INFO button .............................P. 37, 60
b Fn1 button ......................................P. 52
c Q button ..................................P. 30, 75
d Arrow pad* ......................................P. 31
e MENU button .................................P. 75
f q (Playback) button ................P. 31, 61
g Speaker
h  (Erase) button ............................P. 33
i Tripod socket
j PBH cover.....................................P. 129
k Battery compartment cover.............P. 12
l Battery compartment lock ...............P. 12
m Card slot cover................................P. 13
n Card slot .........................................P. 13
* In this manual, the FGHI icons represent operations performed using the arrow
pad.
