Olympus E-M1 -  Ow of Operations 10; Preparing the Camera and À Ow of Operations; Names of Parts

10 EN
Preparing the camera and  ow of operations
1
1

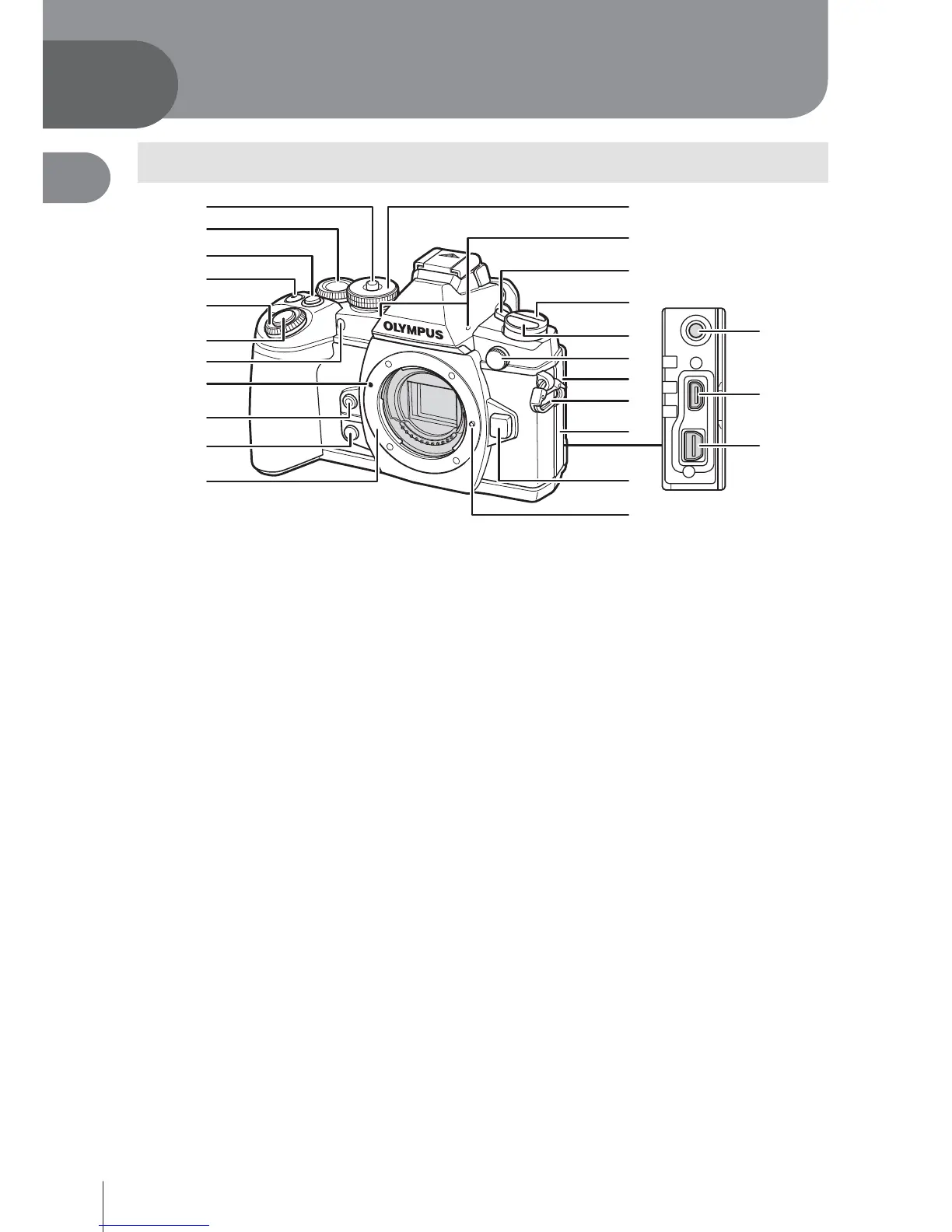

Names of parts
1
2
3
4
5
6
7
8
9
0
a
b
c
d
f
g
h
i
j
k
l
n
o
m
e
1 Mode dial lock .................................P. 18
2 Rear dial*
1
(o)
.......................P. 23, 38 – 41, 56, 58, 105
3 Fn2 button ................................P. 23, 49
4 H/R (Movie) button ........P. 33/P. 22, 99
5 Front dial*
1
(r) .................P. 31, 38 – 41
6 Shutter button .................................P. 21
7 Self-timer lamp/AF illuminator
...............................................P. 55/P. 91
8 Lens attachment mark ....................P. 14
9 Y (One-touch white balance) button
........................................................P. 57
0 Z (Preview) button .........................P. 39
a Mount (Remove the body cap before
attaching the lens.)
b Mode dial ........................................P. 18
c Stereo microphone .............P. 64, 74, 87
d ON/OFF lever ................................P. 16
e AFm (AF/Metering mode) button
(#/w settings*
2
) ..........P. 50, 71, 72, 73
f jYHDR (Sequential shooting/Self-
timer/HDR) button
(Bracket settings*
2
) .............P. 55, 37, 80
g External  ash connector ...............P. 132
h Microphone connector cover
i Strap eyelet.......................................P. 9
j Connector cover
k Lens release button ........................P. 14
l Lens lock pin
m Microphone connector (Third-party
commercial microphones can be used.
l3.5 stereo mini-plug)
n HDMI connector (Type D) .............P. 101
o Multi-connector ............. P. 101, 113, 116
*
1
In this manual, the r and o icons represent operations performed using the front dial
and rear dial.
*
2
When the lever is set to 2
