Installation

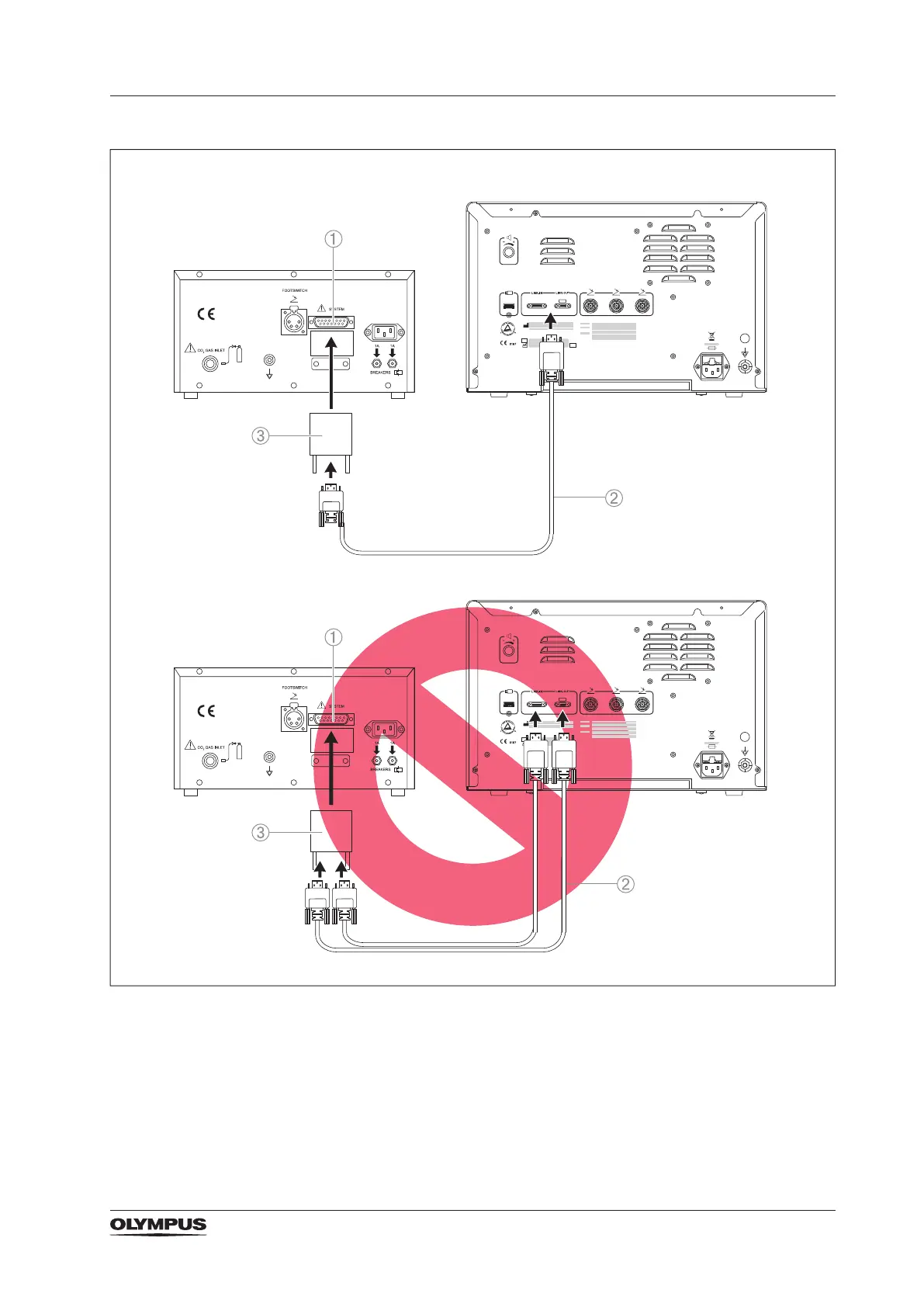

1) System connector
2) Adapter “MAJ-1873” for UHI-2/3
3) Communication cable “MAJ-1872”
1. Ensure that both devices, the ESG-410 and the UHI-2/3 are switched off.
2. Connect the system plug of the adapter to the system connector of the UHI-2/3.
3. Fasten the screws on both sides of the adapter to secure the connection.
ESG-410
UHI-2/3
