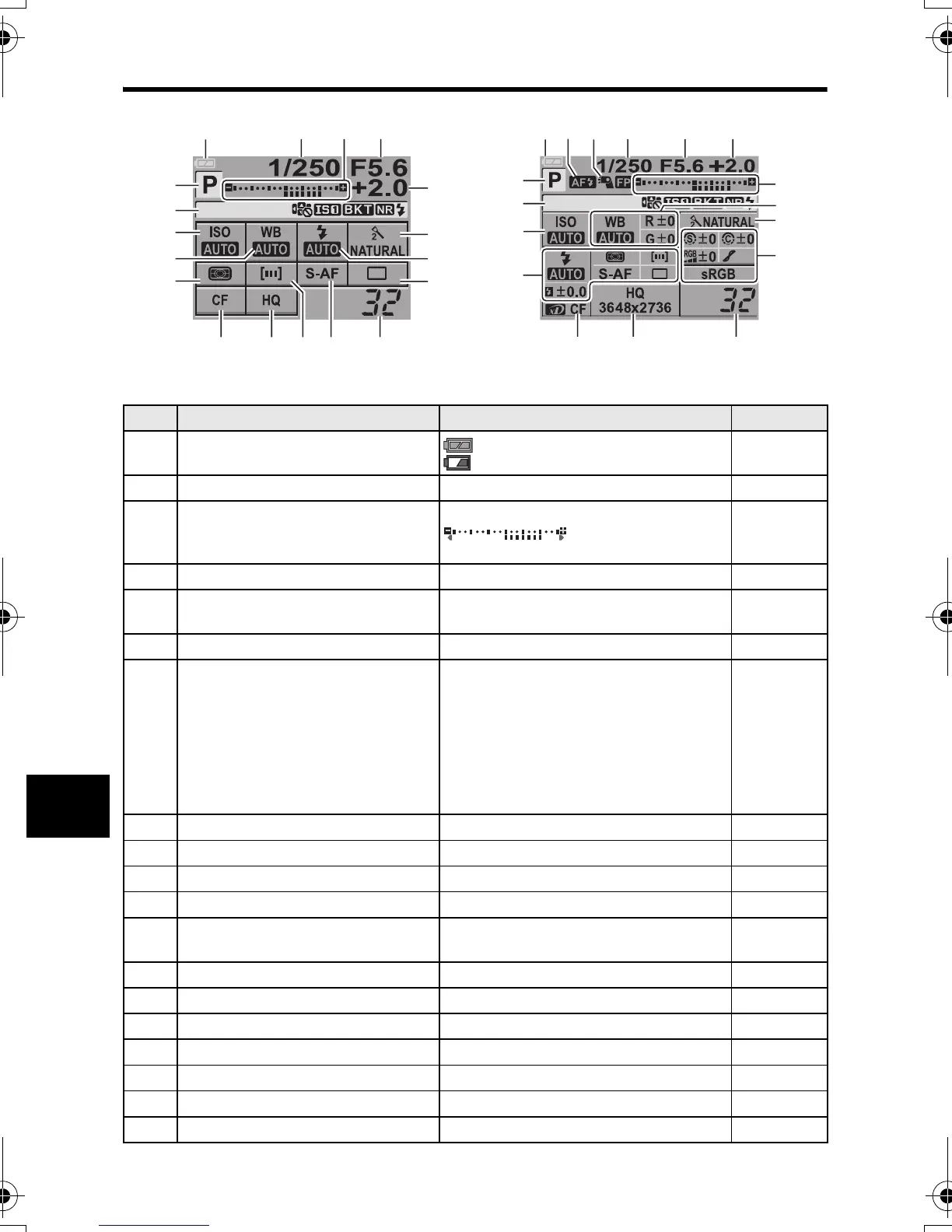

Control panel screen
No. Items Indication examples Ref. page
1 Battery check
(ready for use),
(charging required)
k
2 Shutter speed 1/250 P. 31 - 34
3
Exposure compensation indicator
Exposure level indicator
Flash intensity level indicator
P. 55
P. 34
P. 42
4 Aperture value F5.6 P. 31 - 34
5 Exposure mode P, A, S, M, i, l, &, j, /
P. 18,
P. 30 - 34
6 Exposure compensation value +2.0 P. 55
7
Date
Arrow pad lock
Image stabilizer
Auto bracketing
Noise reduction
Flash
Internal temperature warning
2007.08.16
p
q, r
0
O
# (blinks: charging in progress, lights
up: charging completed)
m
P. 8
P. 84
P. 36
P. 37
P. 62
P. 42
P. 103
8 ISO AUTO, 100, 200, 400 P. 56
9 White balance 1, 5 P. 58
10 Picture mode iNATURAL P. 61
11 Flash mode H, # P. 41
12
Sequential shooting/Self-timer/
Remote control
j, Y2s, <0s P. 45
13 Metering mode e, 4, n, nHI, nSH P. 54
14 Card 4, CF P. 107
15 Record mode HQ P. 53
16 AF frame P P. 49
17 AF mode S-AF P. 49
18 Number of storable still pictures 32 k
19 Super FP flash 1 P. 44
Basic Detailed
2007.08.16
1234
6
10
11
12
1817161514
13
9
8
7
5
2007.08.16
12419 2 4 6
3
21
10
22
182314
20
8
7
5
