Fig. 22
Fig. 23
Fig. 24
Fig. 25
Fig. 26

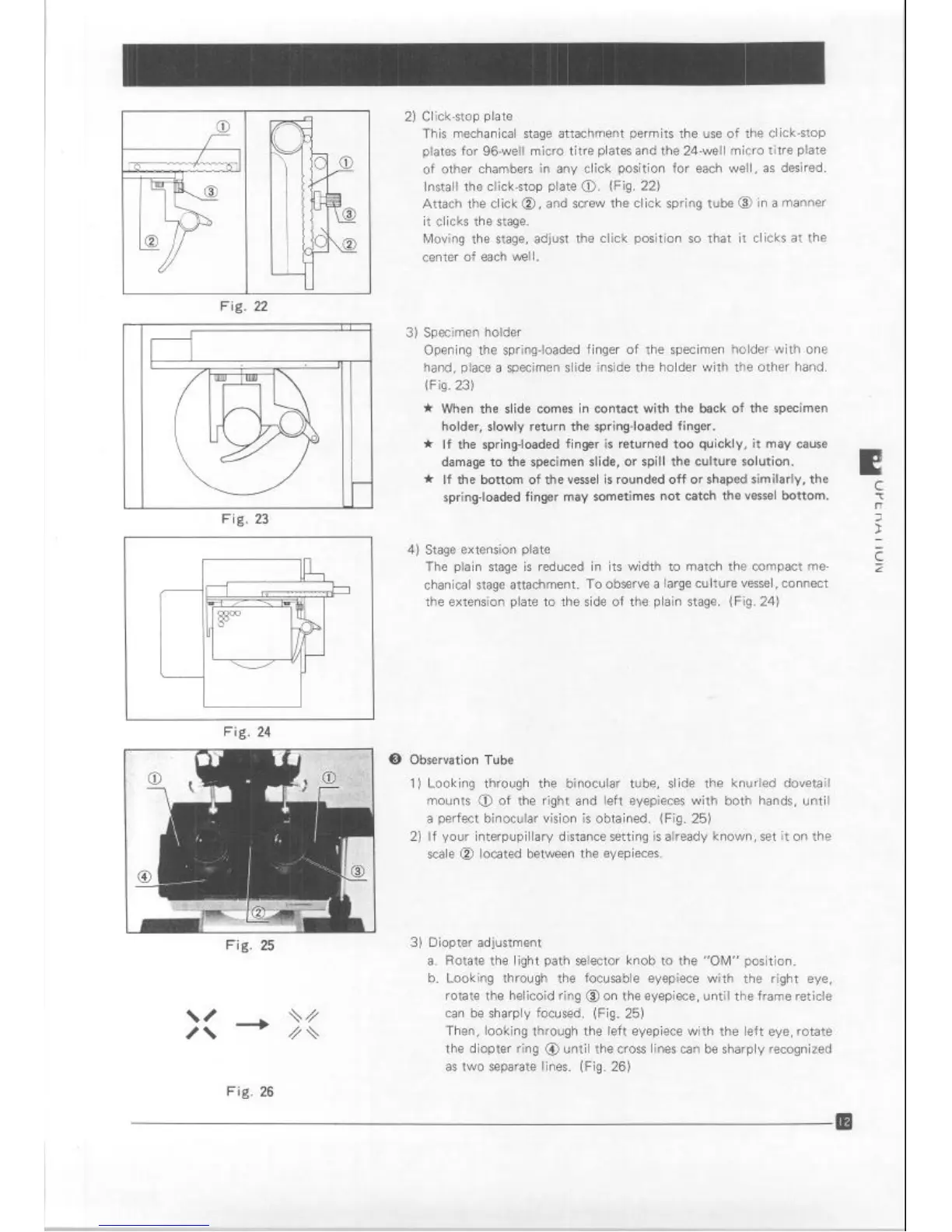

2) Click-stop plate
This mechanical stage attachment permits the use of the click-stop
plates for 96well micro titre plates and the 24.well micro titre plate
of other chambers in any click position for each well, as desired.
Install the click-stop plate 0. (Fig. 22)
Attach the click 0, and screw the click spring tube 0 in a manner
it clicks the stage.
Moving the stage, adjust the click position so that it clicks at the
center of each well.
3) Specimen holder
Opening the spring-loaded finger of the specimen holder with one
hand, place a specimen slide inside the holder with the other hand.
(Fig. 23)
* When the slide comes in contact with the back of the specimen
holder, slowly return the spring-loaded finger.
* If the spring-loaded finger is returned too quickly, it may cause
damage to the specimen slide, or spill the culture solution.
* If the bottom of the vessel is rounded off or shaped similarly, the
spring-loaded finger may sometimes not catch the vessel bottom.
C
z
?
3
4) Stage extension plate
The plain stage is reduced in its width to match the compact me-
chanical stage attachment. To observe a large culture vessel, connect
the extension plate to the side of the plain stage. (Fig. 24)
0 Observation Tube
1) Looking through the binocular tube, slide the knurled dovetail
mounts @ of the right and left eyepieces with both hands, until
a perfect binocular vision is obtained. (Fig. 25)
2) If your interpupillary distance setting is already known, set it on the
scale @ located between the eyepieces.
3) Diopter adjustment
a. Rotate the light path selector knob to the “OM” position.
b. Looking through the focusable eyepiece with the right eye,
rotate the helicoid ring @ on the eyepiece, until the frame reticle
can be sharply focused. (Fig. 25)
Then, looking through the left eyepiece with the left eye, rotate
the diopter ring @ until the cross lines can be sharply recognized
as two separate lines. (Fig. 26)
