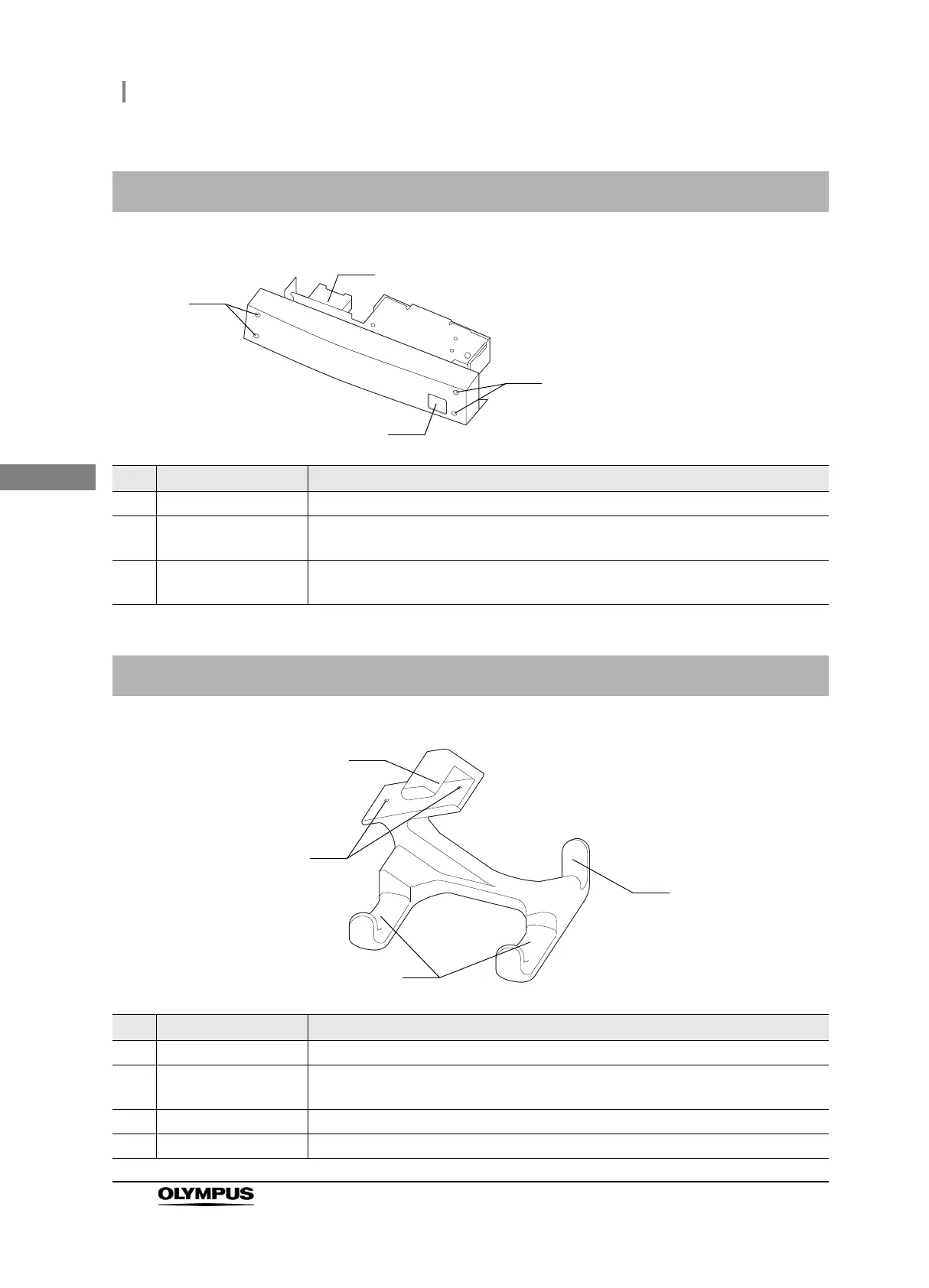

2.3 Wireless unit
MAJ-2301 INSTRUCTION MANUAL
Ch.2
2.3 Wireless unit
No. Name Description
1 Connection terminal Means of electrical connection to the surgical microscope.
2 Attaching holes Used to attach the wireless unit to the surgical microscope using the provided
retaining screws (M4 × 5 mm).
3 Pairing sticker
attaching part
Attach the pairing sticker.
2.4 Foot switch hanger
No. Name Description
1 Attaching section Used when attaching to the movement handle of the surgical microscope.
2 Attaching holes Used to attach the foot switch hanger to the surgical microscope using the provided
retaining screws (M4 × 12 mm).
3 Hook Used to hook the foot switch.
4 Cable hook Used to hook the cable when storing it.
