Chapter 2 Instrument Nomenclature
COLPOSCOPE OCS-500
Chapter 2 Instrument Nomenclature

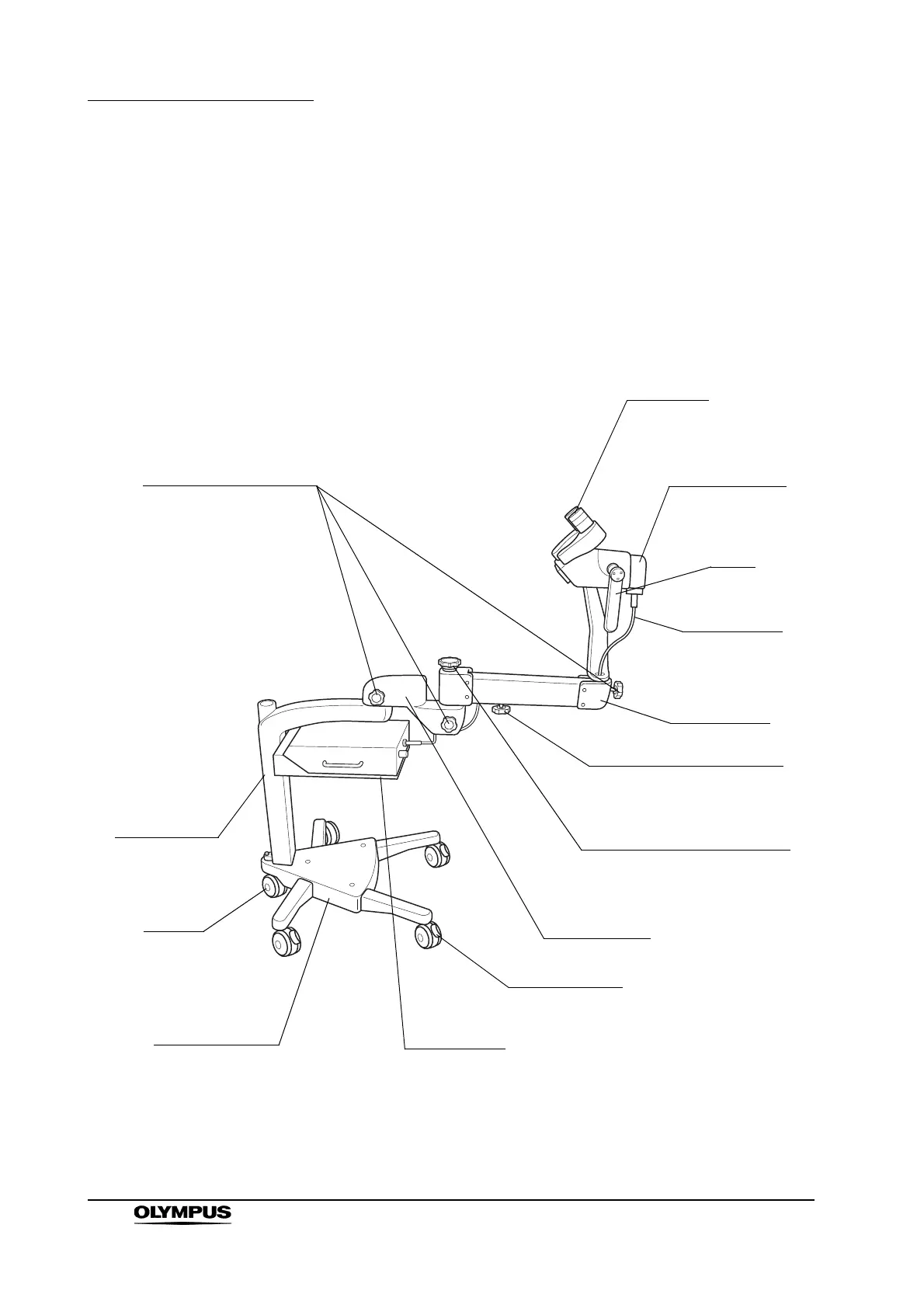

2.1 Major components
Rotation tension
adjustment handle
Zoom
microscope
body (OCS5-ZB)
Light guide
(OCS5-LG)
Balance arm
(OCS5-BA)
Vertical tension
adjustment handle
Balance adjustment handle
Horizontal arm
(OCS5-HA)
Caster stopper
Floorstand base
(OCS5-STB)
Caster
Stand
(OCS5-STD)
Eyepiece
Rotating the handle
adjusts horizontal rotation
tension of each arm.
Rotating the handle adjusts
up-down movement tension
of the balance arm.
Rotating the handle adjusts the
balance of the balance arm.
Grip
Small tray
(OCS5-TYS)
