Olympus OCS-500 - Zooming

22
Chapter 4 Operation
COLPOSCOPE OCS-500
4.9 Zooming
Rotate the zoom magnification knob to obtain the desired magnification (see
Figure 4.16).

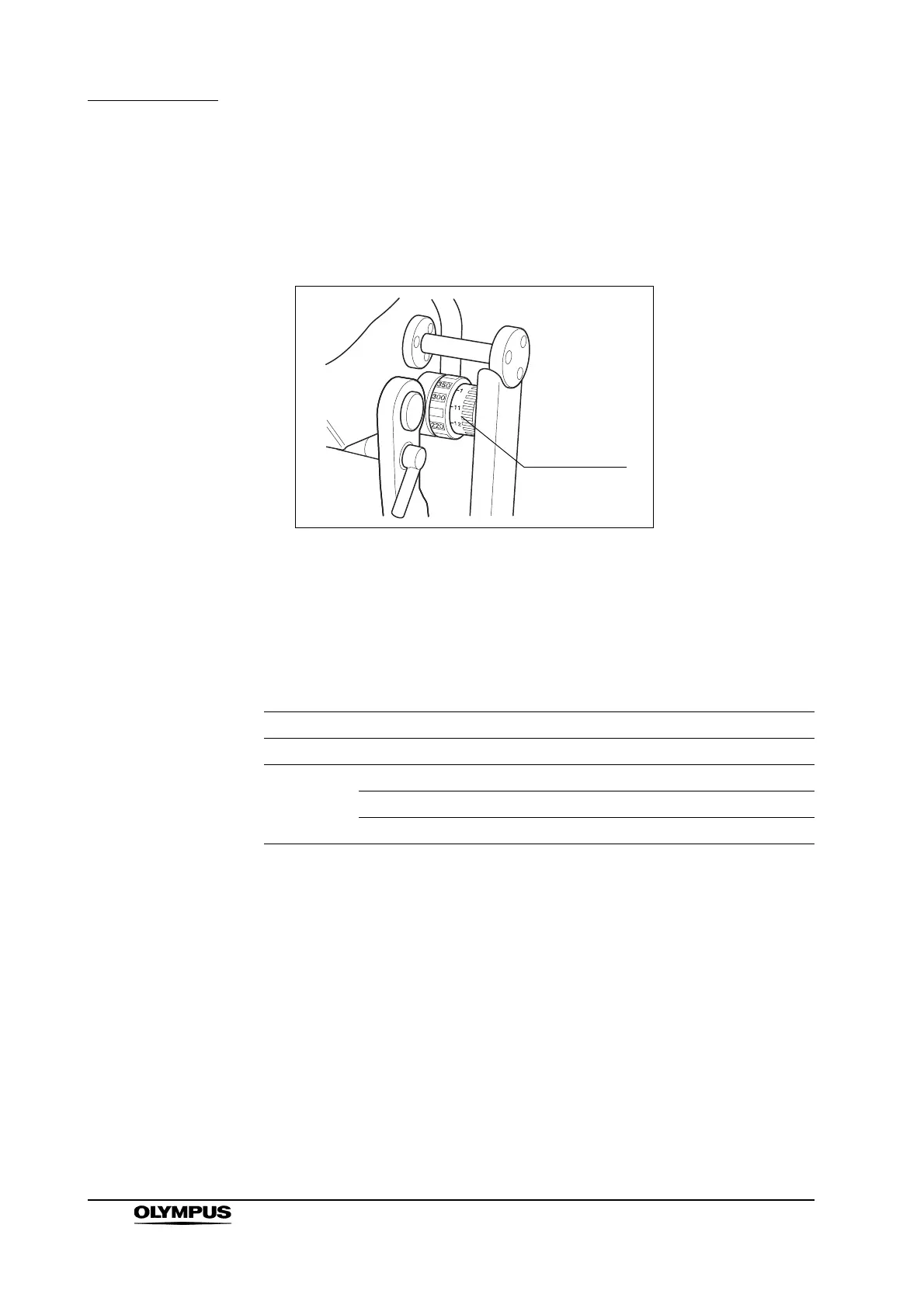

Figure 4.16
Magnification
As shown in the table below, the actual value of the magnification corresponds to
the value shown on the scale on the zoom magnification knob and the focusing
knob.
Scale on the zoom magnification knob
11.11.21.522.53 4 56.3
Scale on the
focusing
knob
220 3.7 4.1 4.5 5.6 7.5 9.4 11.3 15.0 18.8 23.7
300 3.0 3.3 3.6 4.5 6.0 7.5 9.0 12.0 15.1 18.8
350 2.7 2.9 3.2 4.0 5.3 6.7 8.0 10.7 13.4 16.9
Zoom
magnification
knob
