Olympus OM-1 - Shutter Can Not be Charged.8

E-_e

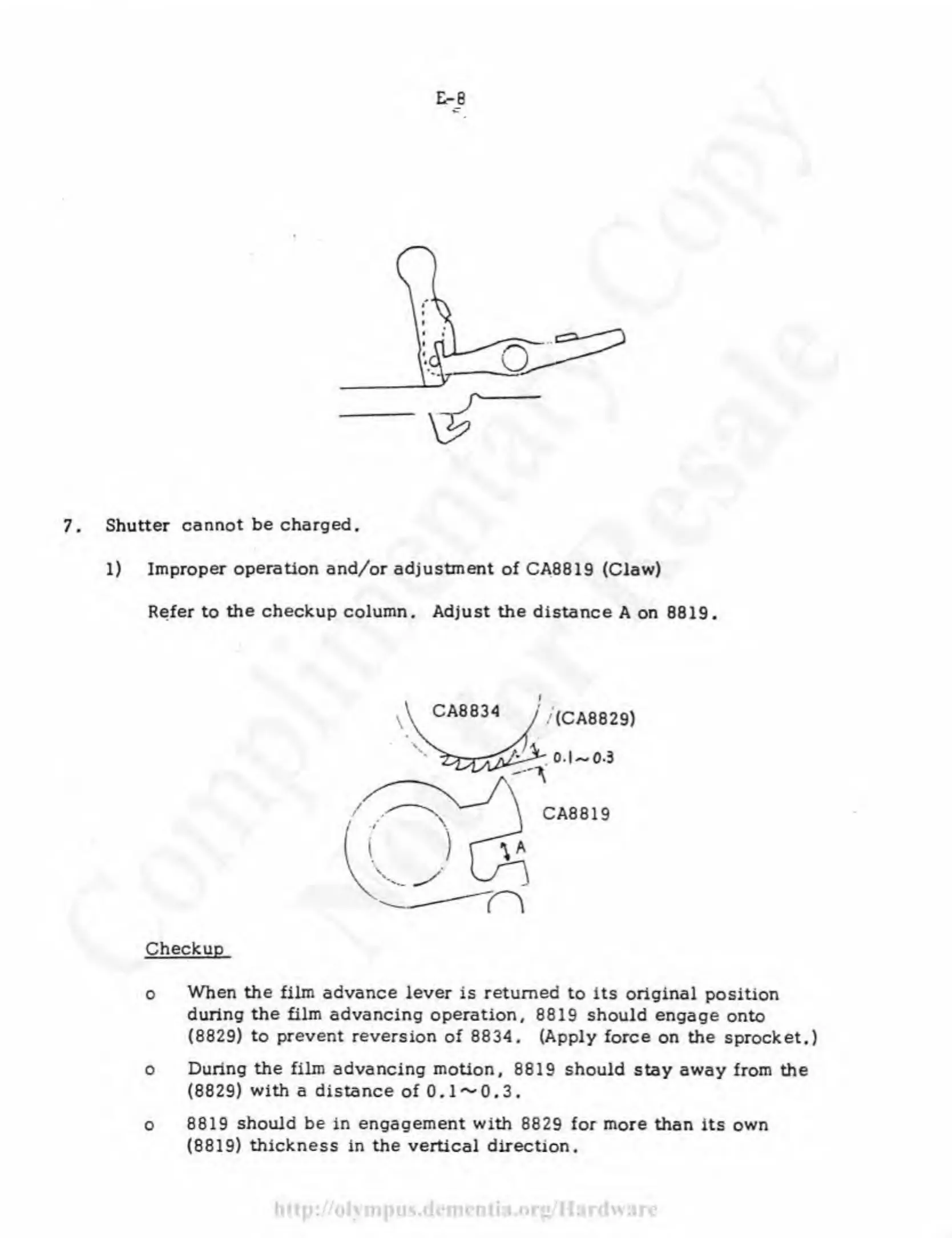

7. Shutter cannot be charged.
1) Improper operation and/or adjustment of CA8819 (Claw)
Refer to the checkup column. Adjust the distance A on 8819.
Checkup
o When the film advance lever is returned to its original position
during the film advancing operation, 8819 should engage onto
(8829) to prevent reversion of 8834. (Apply force on the sprocket.)
o During the film advancing motion, 8819 should stay away from the
(8829) with a distance of 0.1^0.3.
o 8819 should be in engagement with 8829 for more than its own
(8819) thickness in the vertical direction.
