Olympus OM-1 Repair Manual

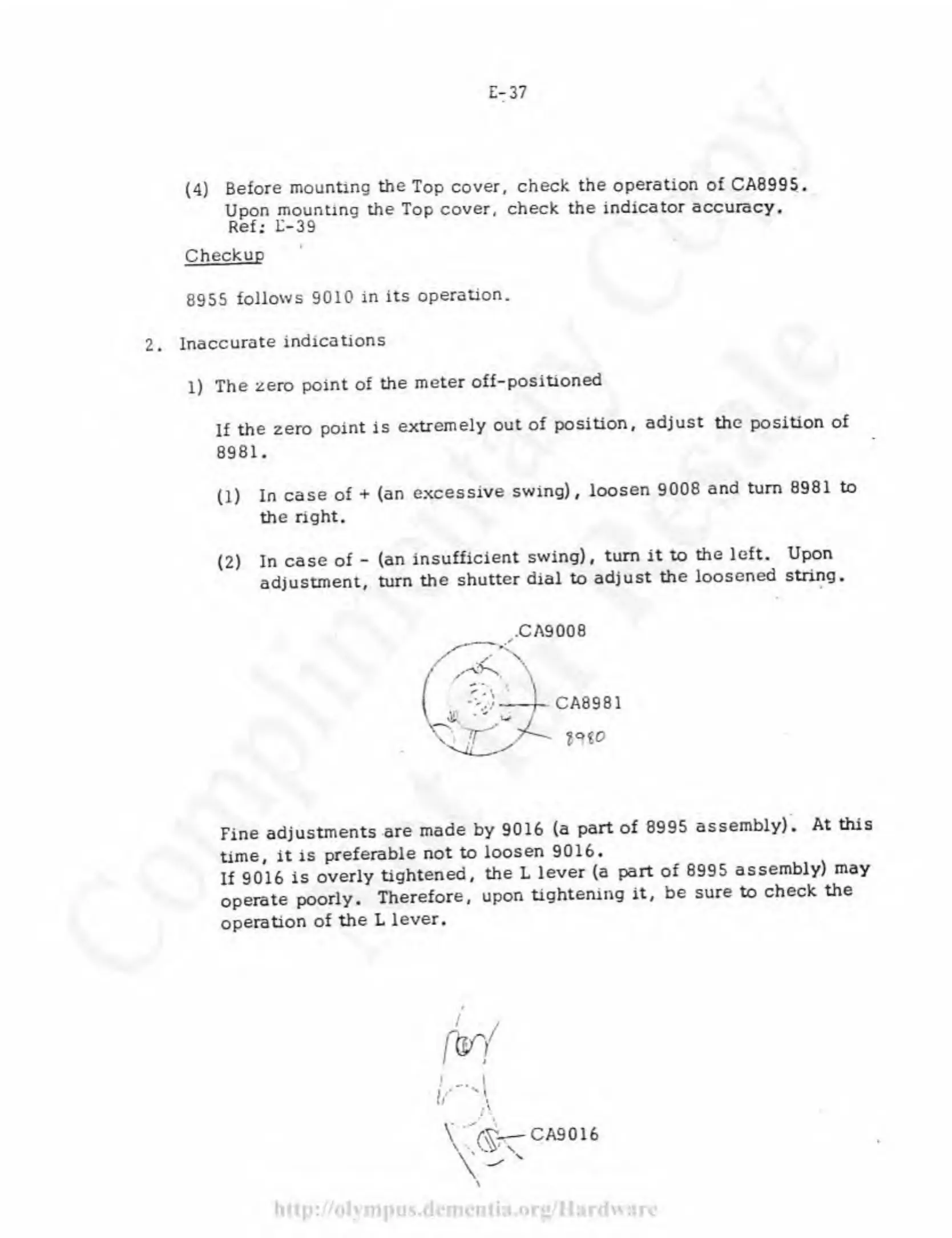

E-37
(4) Before mounting the Top cover, check the operation of CA8995.
Upon mounting the Top cover, check the indicator accuracy.
Ref; 1>39
Checkup
8955 follows 9010 in its operation.
2. Inaccurate indications
1) The zero point of the meter off-positioned
If the zero point is extremely out of position, adjust the position of
8981.
(1) In case of + (an excessive swing), loosen 9008 and turn 8981 to
the right.
(2) In case of - (an insufficient swing), turn it to the left. Upon
adjustment, turn the shutter dial to adjust the loosened string.
.CA9008
CA8981
WtO
Fine adjustments are made by 9016 (a part of 8995 assembly). At this
time, it is preferable not to loosen 9016.
If 9016 is overly tightened, the L lever (a part of 899 5 assembly) may
operate poorly. Therefore, upon tightening it, be sure to check the
operation of the L lever.
#
CA9016
p://olvmi
r* | | , , 1
lementi a.org/f
