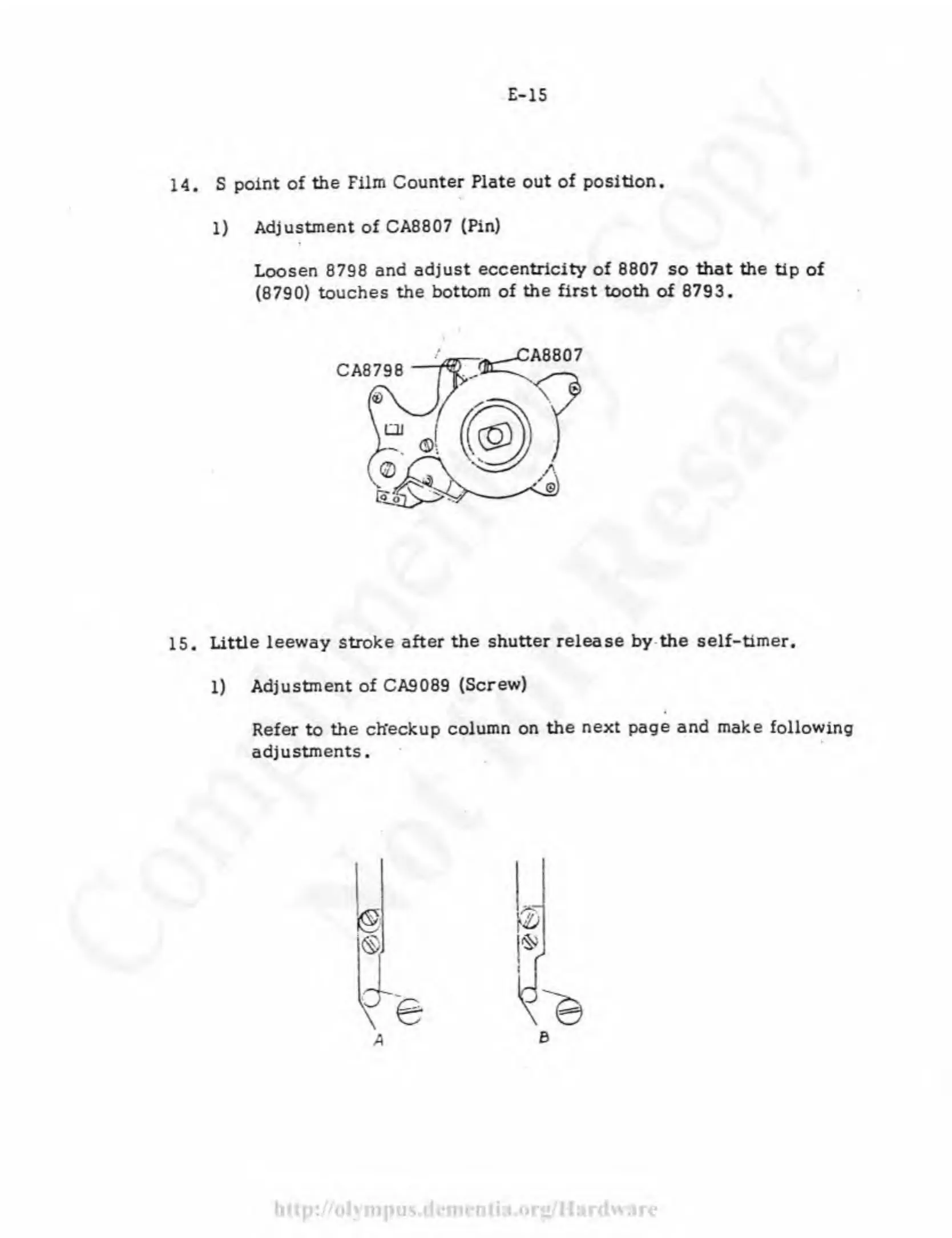

E-15
14.
S
point
of
the
Film
Counter
Plate
out
of
position.
1)
Adjustment
of
CA8807
(Pin)
Loosen
8798
and
adjust
eccentricity
of
8807
so
that
the
tip
of
(8790)
touches
the
bottom
of
the
first
tooth
of
8793.
15.
Little
leeway
stroke
after
the
shutter
release
by
the
self-timer.
1)
Adjustment
of
CA9089
(Screw)
Refer
to
the
checkup
column
on
the
next
page
and
make
following
adjustments.
ttp://olvmpus.dcmentia.org/Hardware
r
*
r
n
i
