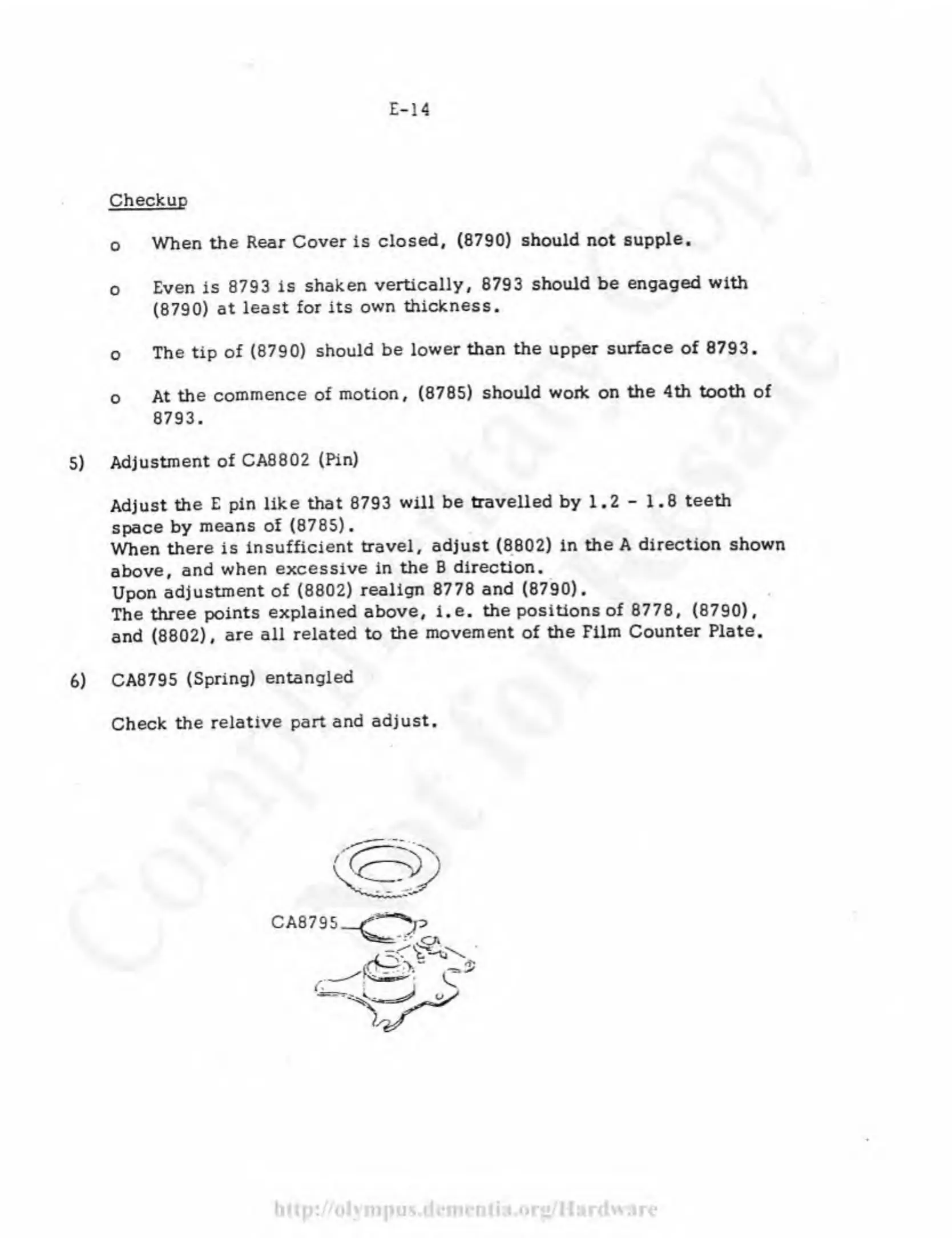

E-14
Checkup
o
When
the
Rear
Cover
is
closed,
(8790)
should
not
supple.
o
Even
is
8793
is
shaken
vertically,
8793
should
be
engaged
with
(8790)
at
least
for
its
own
thickness.
o
The
tip
of
(8790)
should
be
lower
than
the
upper
surface
of
8793.
o
At
the
commence
of
motion,
(8785)
should
work
on
the
4th
tooth
of
8793.
5)
Adjustment
of
CA8802
(Pin)
Adjust
the
E
pin
like
that
8793
will
be
travelled
by
1.2
-
1.8
teeth
space
by
means
of
(8785).
When
there
is
insufficient
travel,
adjust
(8802)
in
the
A
direction
shown
above,
and
when
excessive
in
the
B
direction.
Upon
adjustment
of
(8802)
realign
8778
and
(8790).
The
three
points
explained
above,
i.e.
the
positions
of
8778,
(8790),
and
(8802),
are
all
related
to
the
movement
of
the
Film
Counter
Plate.
6)
CA8795
(Spring)
entangled
Check
the
relative
part
and
adjust.
http://olympus.dementia.org/Harchvare
