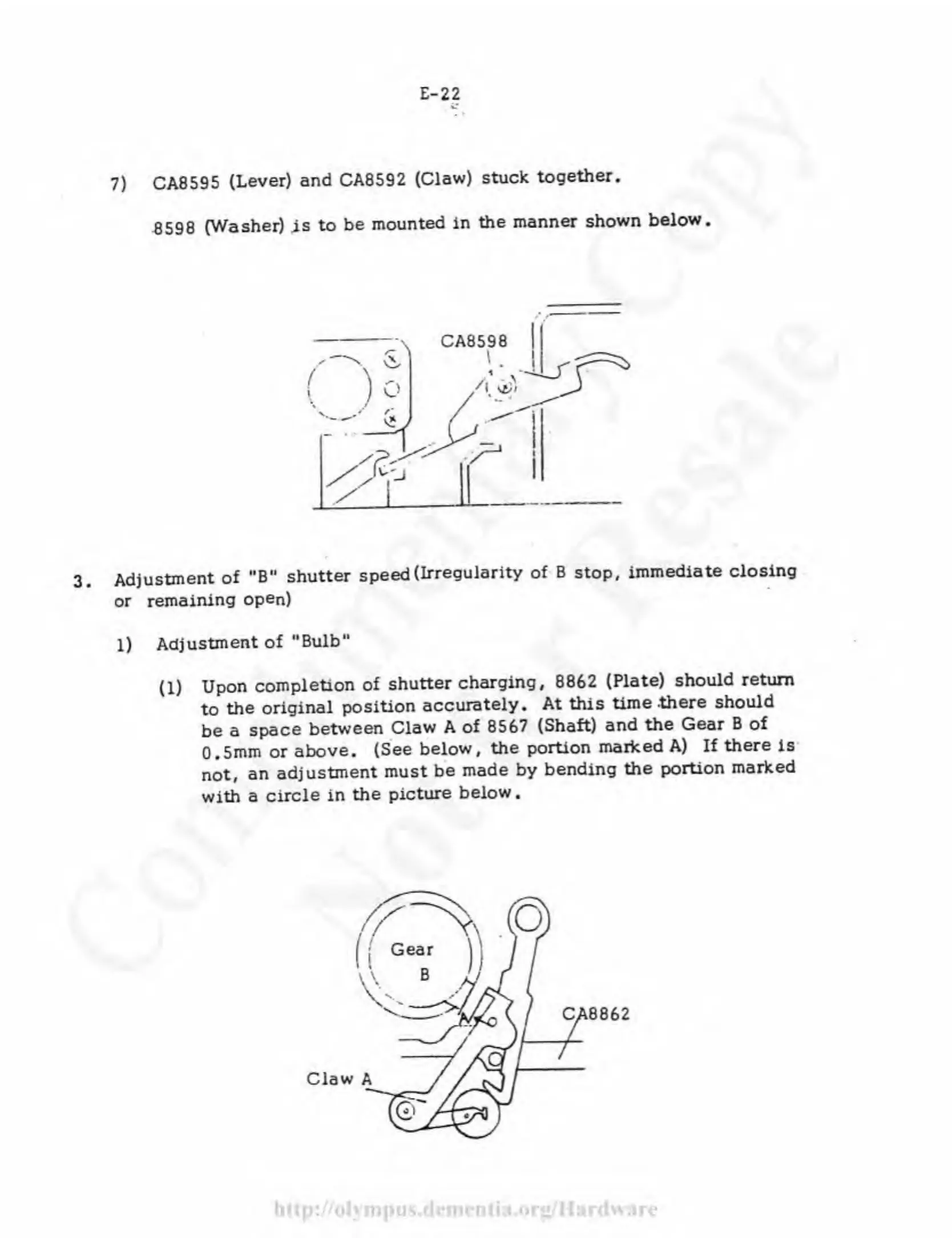

Olympus OM-1 Repair Manual

E-22
7) CA8595 (Lever) and CA8592 (Claw) stuck together.
6598 (Washer) is to be mounted in the manner shown below.
3. Adjustment of "B" shutter speed (Irregularity of B stop, immediate closing
or remaining open)
1) Adjustment of "Bulb"
(1) Upon completion of shutter charging, 8862 (Plate) should return
to the original position accurately. At this time there should
be a space between Claw A of 8567 (Shaft) and the Gear B of
0.5mm or above. (See below, the portion marked A) If there is
not, an adjustment must be made by bending the portion marked
with a circle in the picture below.
http://olympus.dcmentia.org/Hardware
