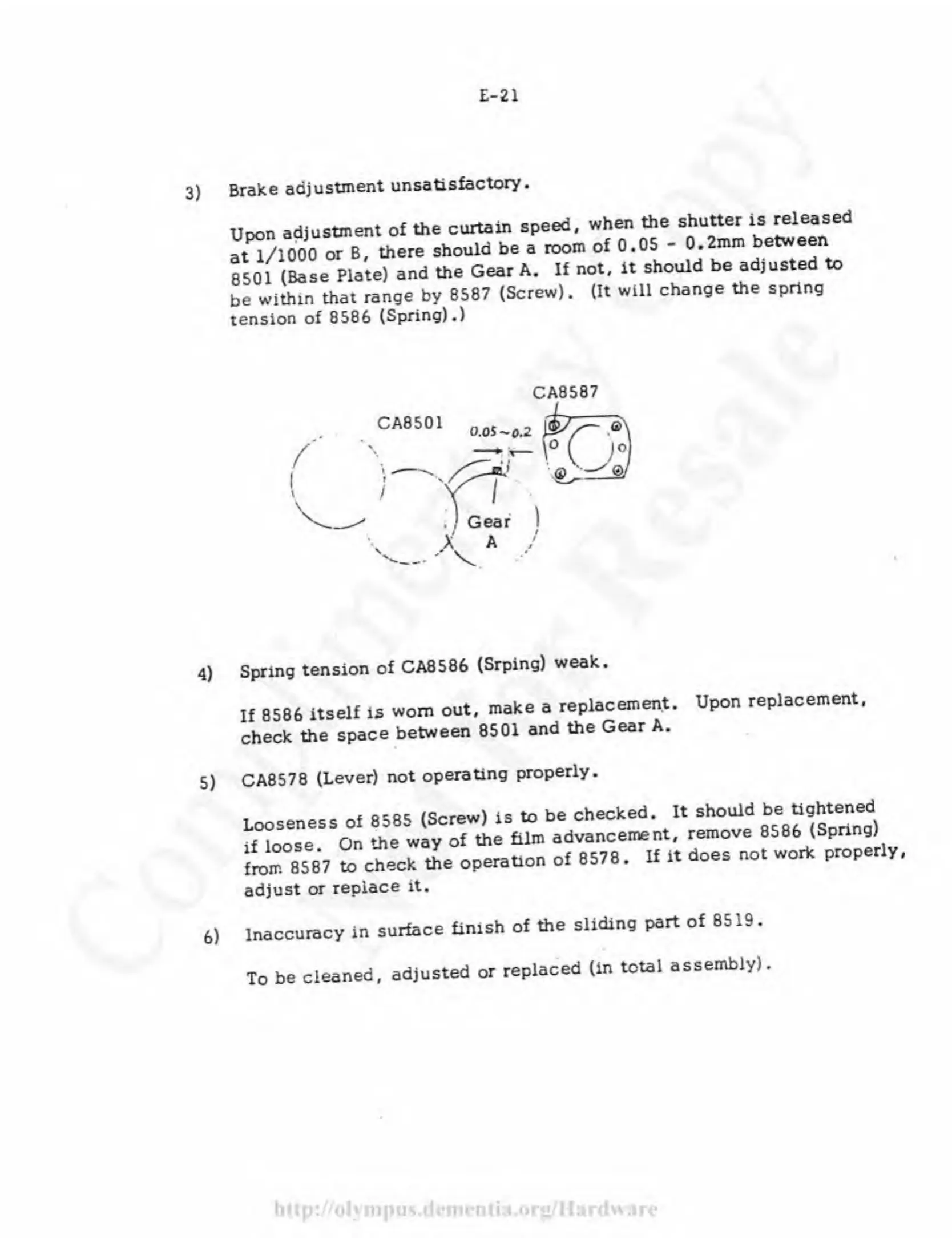

E-21
3)
Brake adjustment unsatisfactory.
Upon adjustment of the curtain speed, when the shutter is released
at 1/1000 or B, there should be a room of 0.05 - 0. mm e
8501 (Base Plate) and the Gear A. If not. it should be adjusted to
be within that range by 8587 (Screw). (It will change the spring
tpn«inn nf 8586 (Soring).)
CA8587
4)
Spring tension of CA8586 (Srping) weak.
If 8586 itself is worn out, make a replacement. Upon replacement,
check the space between 8501 and the Gear A.
5 ) CA8578 (Lever) not operating properly.
Looseness of 8585 (Screw) is to be checked. It should be tightened
if loose On the way of the film advancement, remove 8586 (bpnngj
to I’bV “took to e»~to ol 6578. U K to. ... work p.op.rly.
adjust or replace it.
6) Inaccuracy in surface finish of the sliding part of 8519.
To be cleaned, adjusted or replaced (in total assembly).
