Olympus OM-1 - Uneven Intervals between Picture Frames

£-11

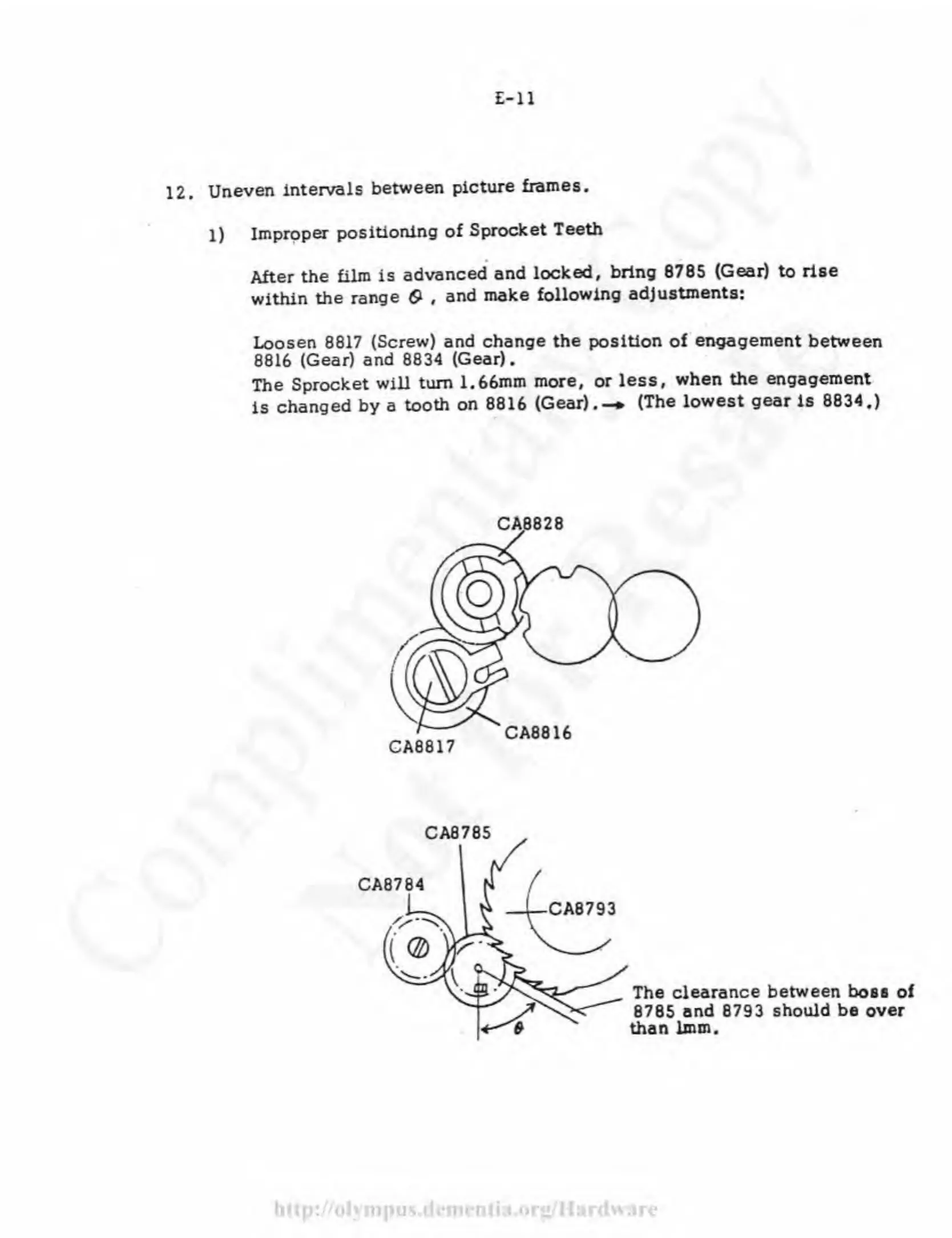

12. Uneven intervals between picture frames.
1) Improper positioning of Sprocket Teeth
After the film is advanced and locked, bring 8785 (Gear) to rise
within the range & , and make following adjustments:
Loosen 8817 (Screw) and change the position of engagement between
8816 (Gear) and 8834 (Gear).
The Sprocket will turn 1.66mm more, or less, when the engagement
is changed by a tooth on 8816 (Gear).-* (The lowest gear is 8834.)
CA8828
CA8817
The clearance between boss of
8785 and 8793 should be over
than 1mm.
