Olympus OM-1 - Improper Timing at High Shutter Speeds.2

. E-25

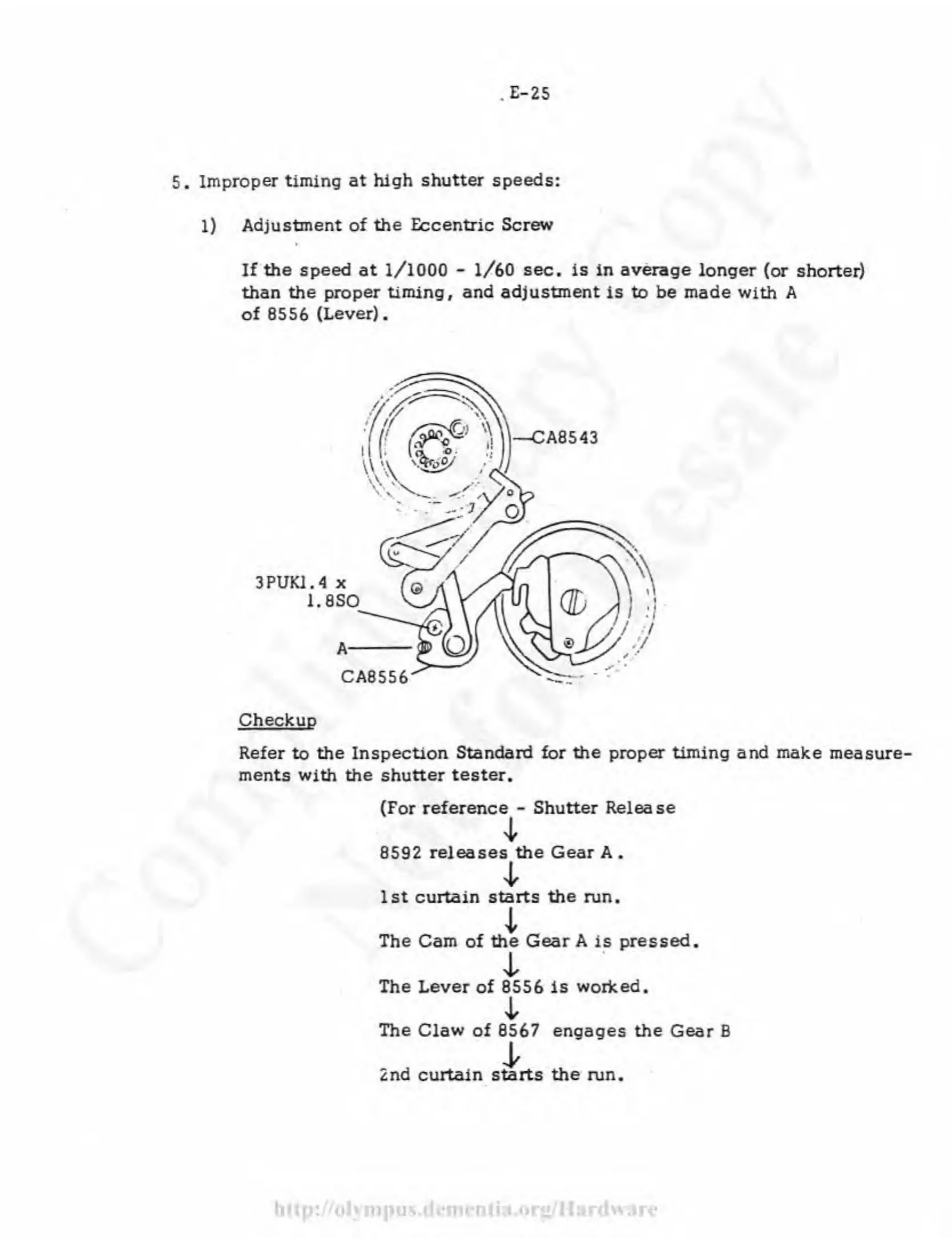

5. Improper timing at high shutter speeds:
1) Adjustment of the Eccentric Screw
If the speed at 1/1000 - 1/60 sec. is in average longer (or shorter)
than the proper timing, and adjustment is to be made with A
of 8556 (Lever).
Checkup
Refer to the Inspection Standard for the proper timing and make measure¬
ments with the shutter tester.
(For reference - Shutter Release
y
8592 releases the Gear A .
i
1st curtain starts the run.
1
The Cam of the Gear A is pressed.
1
The Lever of 8556 is worked.
i
The Claw of 8567 engages the Gear B
i
2nd curtain starts the run.
