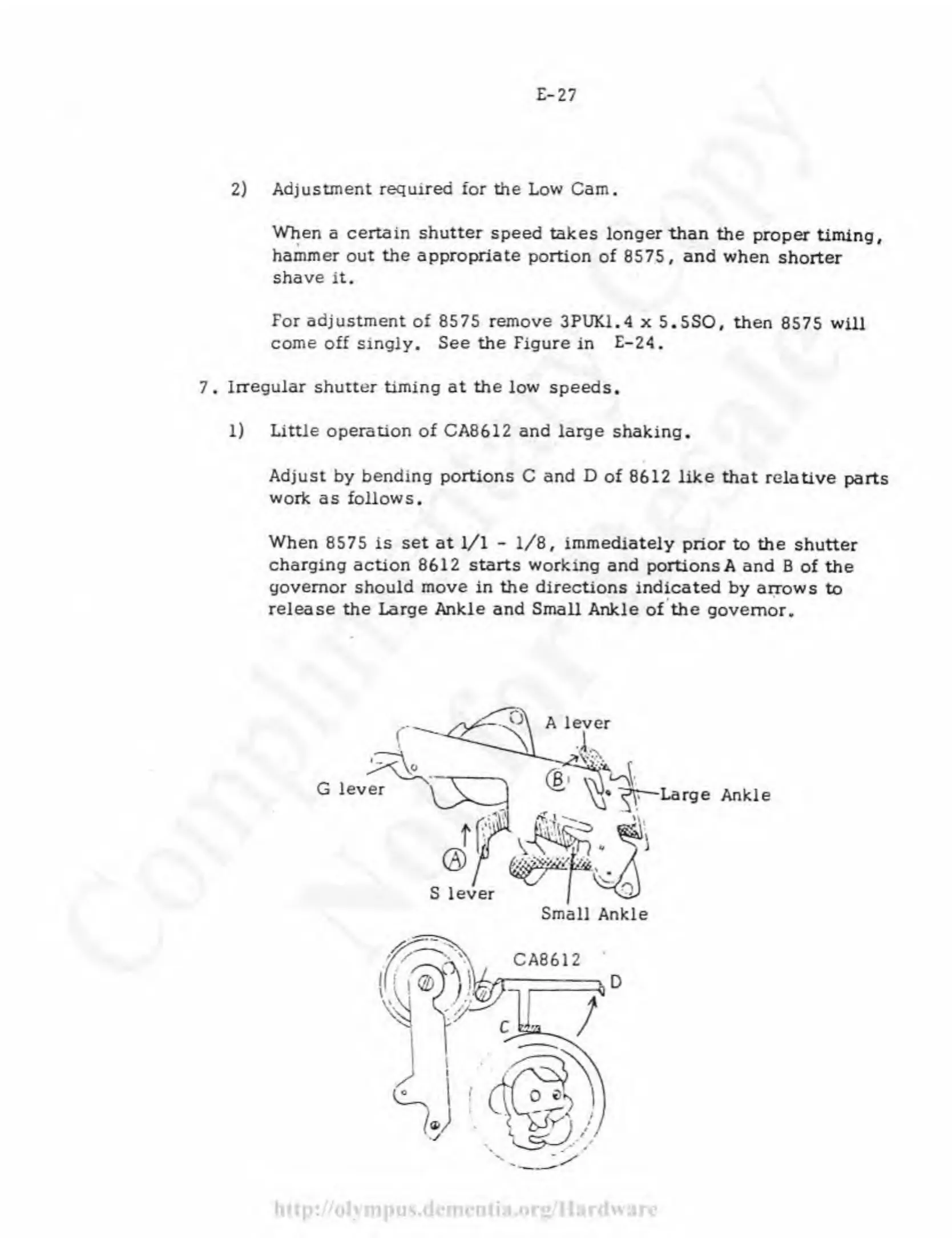

E-27
2)
Adjustment
required
for
the
Low
Cam.
When
a
certain
shutter
speed
takes
longer
than
the
proper
timing,
hammer
out
the
appropriate
portion
of
8575,
and
when
shorter
shave
it.
For
adjustment
of
8575
remove
3PUK1.4
x
5.5SO,
then
8575
will
come
off
singly.
See
the
Figure
in
E-24.
7.
Irregular
shutter
timing
at
the
low
speeds.
1)
Little
operation
of
CA8612
and
large
shaking.
Adjust
by
bending
portions
C
and
D
of
8612
like
that
relative
parts
work
as
follows.
When
8575
is
set
at
1/1
-
1/8,
immediately
prior
to
the
shutter
charging
action
8612
starts
working
and
portions
A
and
B
of
the
governor
should
move
in
the
directions
indicated
by
arrows
to
release
the
Large
Ankle
and
Small
Ankle
of
the
governor.
Ankle
http://olvmpus.dementia.org/Hardwiirc
