Olympus OM-1 Repair Manual

E-23

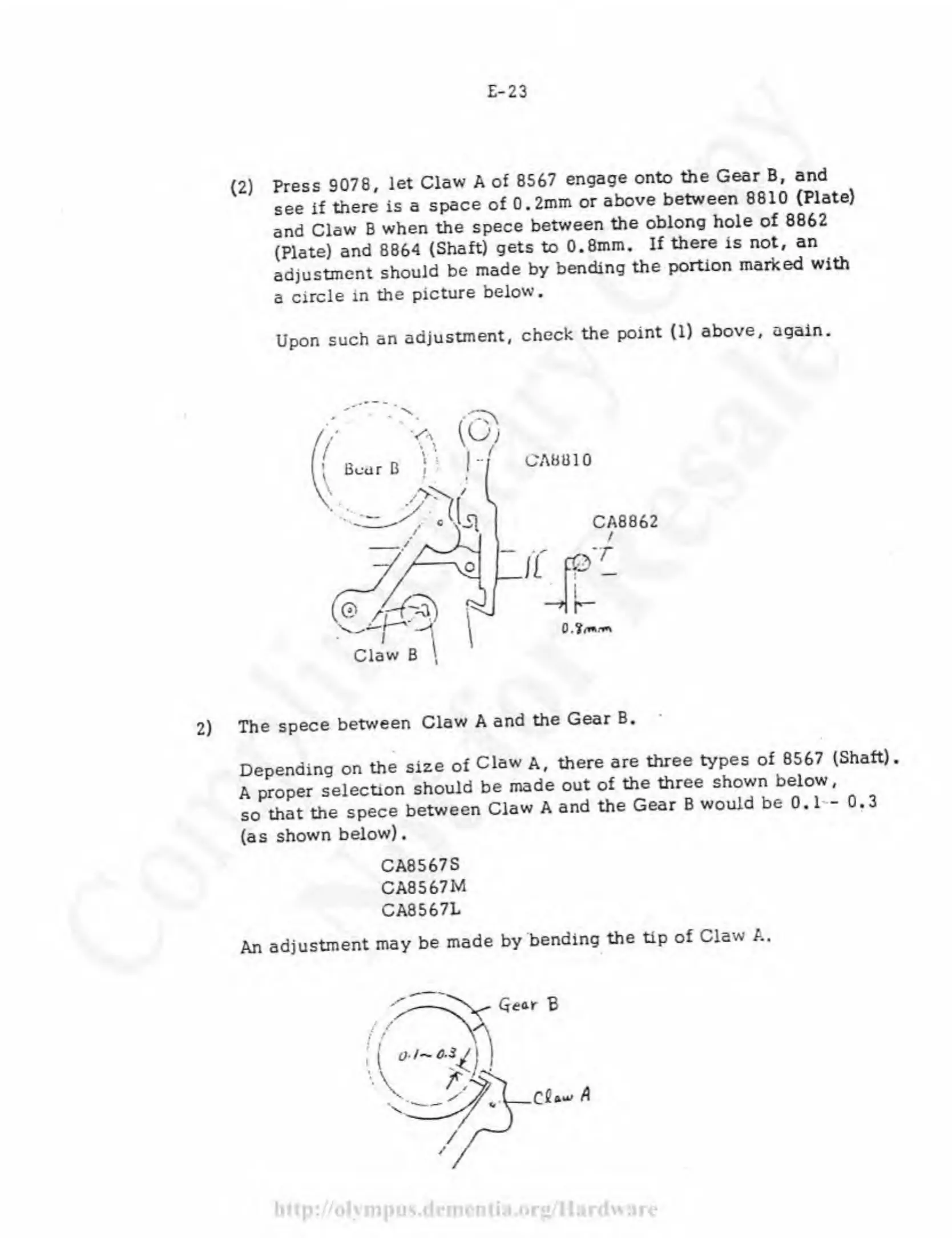

(2) Press 9078, let Claw A of 8567 engage onto the Gear B, and
see if there is a space of 0.2mm or above between 8810 (Plate)
and Claw B when the spece between the oblong hole of 8862
(Plate) and 8864 (Shaft) gets to 0.8mm. If there is not, an
adjustment should be made by bending the portion marked with
a circle in the picture below.
Upon such an adjustment, check the point (1) above, again.
2) The spece between Claw A and the Gear B.
Depending on the size of Claw A, there are three types of 8567 (Shaft).
A proper selection should be made out of the three shown below,
so that the spece between Claw A and the Gear B would be 0.1 - 0.3
(as shown below).
CA8567S
CA8567M
CA8567L
An adjustment may be made by bending the tip of Claw A.
