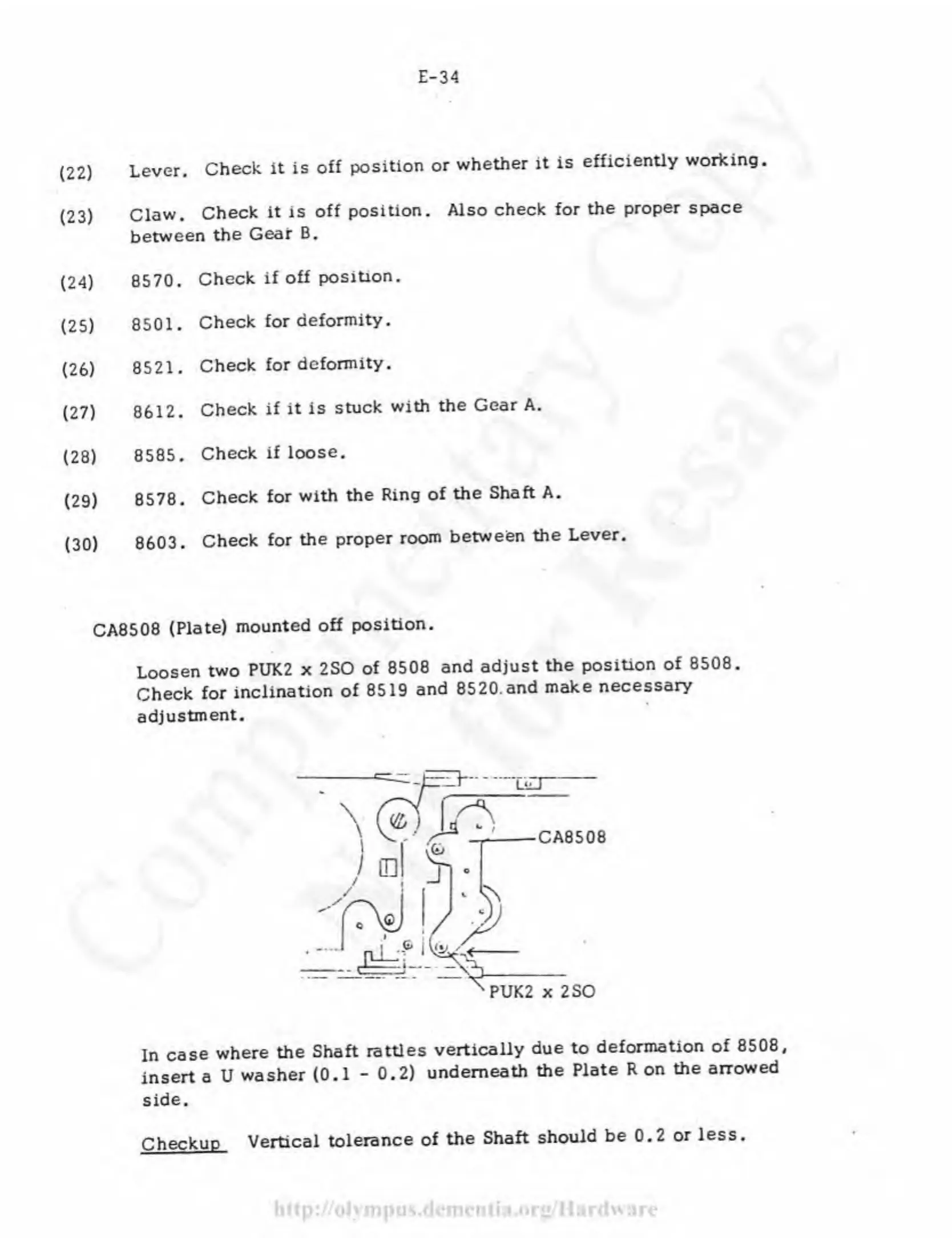

Olympus OM-1 Repair Manual

E-34
(22)
Lever.
Check it is off position or whether it is efficiently working
(23)
Claw. Check it is off position. Also check for the proper space
between the Gear B.
(24)
8570.
Check if off position.
(25)
8501.
Check for deformity.
(26)
8521.
Check for deformity.
(27)
8612.
Check if it is stuck with the Gear A.
(28)
8585.
Check if loose.
(29)
8578.
Check for with the Ring of the Shaft A.
(30)
8603.
Check for the proper room between the Lever.
CA8508 (Plate) mounted off position.
Loosen two PUK2 x 2SO of 8508 and adjust the position of 8508.
Check for inclination of 8519 and 8520.and make necessary
adjustment.
In case where the Shaft rattles vertically due to deformation of 8508,
insert a U washer (0.1 - 0.2) underneath the Plate R on the anrowed
side.
Vertical tolerance of the Shaft should be 0.2 or less.
http://0lvmpus.dementia.0r2/Hardwarc
Checkup
