Olympus Stylus 1 Basic Manual

3 EN
3

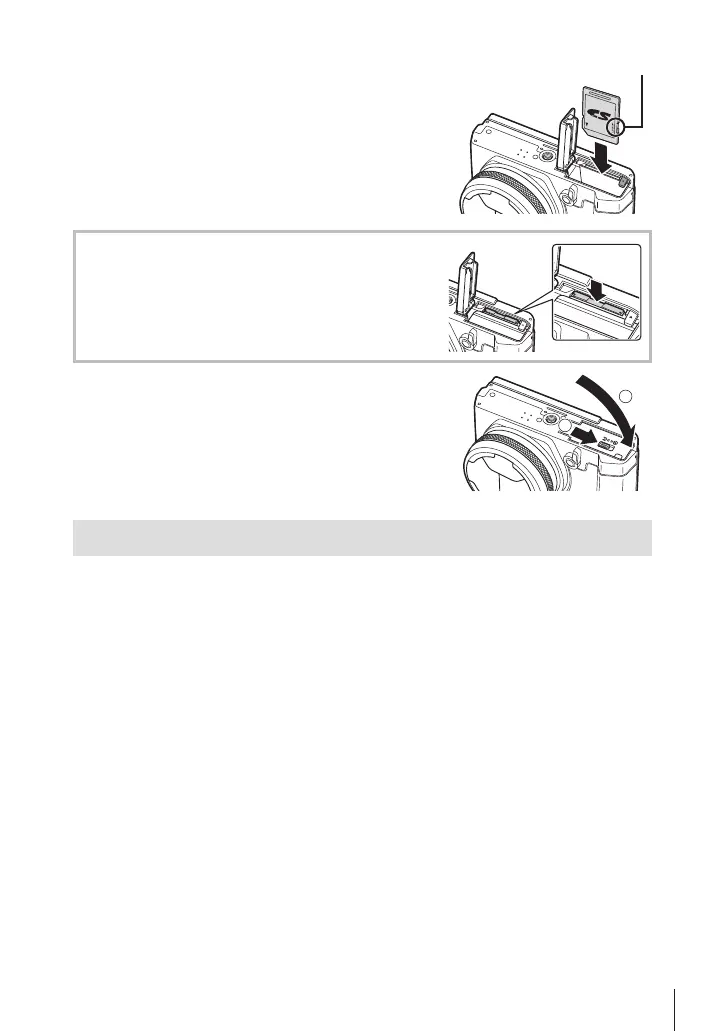

Insert the card straight until it clicks into place.
• Always use SD/SDHC/SDXC cards or Eye-Fi card
with this camera. Do not insert other types of memory
cards.
• Do not touch the metallic parts of the card directly.
Write-protect switch
To remove the card
Press the card in until it clicks and comes out slightly,
then remove the card.
4
Follow Steps 1 and 2 to close battery/card
compartment cover.
• When using the camera, be sure to close the battery/
card compartment cover.
2
1
Turning on the camera and making the initial settings
When you turn on the camera for the first time, a screen appears enabling to set the
language for the menus and messages displayed in the monitor, and the date and time.
1
After turning the camera on with the n button, select a language using
FGHI and press the A button.
2
Use FG to select the year for [Y].
3
Press I to save the setting for [Y].
4
As in Steps 2 and 3, use FGHI to set [M] (month), [D] (day), [Time]
(hours and minutes), and [Y/M/D] (date order), and then press the A button.
• For precise time setting, press the A button as the time signal strikes 00 seconds.
5
Use HI to select the [x] time zone and then press the A button.
• Use
FG
to turn daylight saving time ([Summer]) on or off.
d4572BasicE.indb3d4572BasicE.indb3 2013/10/0416:03:122013/10/0416:03:12

Olympus Stylus 1 Specifications

General

Megapixel	12 MP
Camera type	Bridge camera
Sensor type	BSI CMOS
Image stabilizer	Yes
Total megapixels	12.76 MP
Image sensor size	1/1.7 \
Image formats supported	JPG, RAW
Supported aspect ratios	1:1, 3:2, 4:3, 16:9
Maximum image resolution	3968 x 2976 pixels
Image sensor size (W x H)	7.3 x 5.5 mm
Still image resolution(s)	2560 x 1920
Digital zoom	- x
Optical zoom	10.7 x
Focal length range	6 - 64.3 mm
Maximum aperture number	2.8
Minimum aperture number	-
Number of aspheric elements	8
Lens structure (elements/groups)	12/10
Maximum focal length (35mm film equiv)	300 mm
Minimum focal length (35mm film equiv)	28 mm
Focus adjustment	Auto/Manual
Auto Focus (AF) points	35
Auto focusing (AF) modes	Continuous Auto Focus, Single Auto Focus
Closest focusing distance	0.05 m
Light metering	Centre-weighted, Spot
ISO sensitivity	100, 12800
Light exposure modes	Aperture priority AE, Auto, Manual, Shutter priority AE
ISO sensitivity (max)	12800
ISO sensitivity (min)	100
Light exposure correction	± 3EV (1/3EV step)
Fastest camera shutter speed	1/2000 s
Slowest camera shutter speed	60 s
Flash modes	Auto, Fill-in, Flash off, Manual, Red-eye reduction, Slow synchronization
Flash range (tele)	0.8 - 10.3 m
Flash range (wide)	0.1 - 10.3 m
Video resolutions	320 x 240, 1280 x 720, 1920 x 1080 pixels
Motion JPEG frame rate	30 fps
Maximum video resolution	1920 x 1080 pixels
Audio formats supported	PCM
Internal memory	- MB
Compatible memory cards	SD, SDHC, SDXC
Display diagonal	3 \
Display aspect ratio	3:2
Display resolution (numeric)	1040000 pixels
Viewfinder type	Electronic
PictBridge	No
USB version	2.0
HDMI connector type	Micro
Scene modes	Beach, Documents, Night, Night portrait, Panorama, Portrait, Snow, Sports, Sunset, Landscape (scenery)
Photo effects	Neutral, Vivid
White balance	Auto, Flash, Fluorescent, Shade, Sunny, Tungsten
Self-timer delay	2, 12 s
Power source type	Battery
Battery type	BLS‑5
Material	Metal
Product color	Black
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	30 - 90 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	56.5 mm
Width	116.2 mm
Height	87 mm
Weight	- g
Weight (including battery)	402 g
