SZ2-STU1/SZ2-STU3
MODULES, EXTERNAL VIEW AND DIMENSIONS
(Unit: mm)

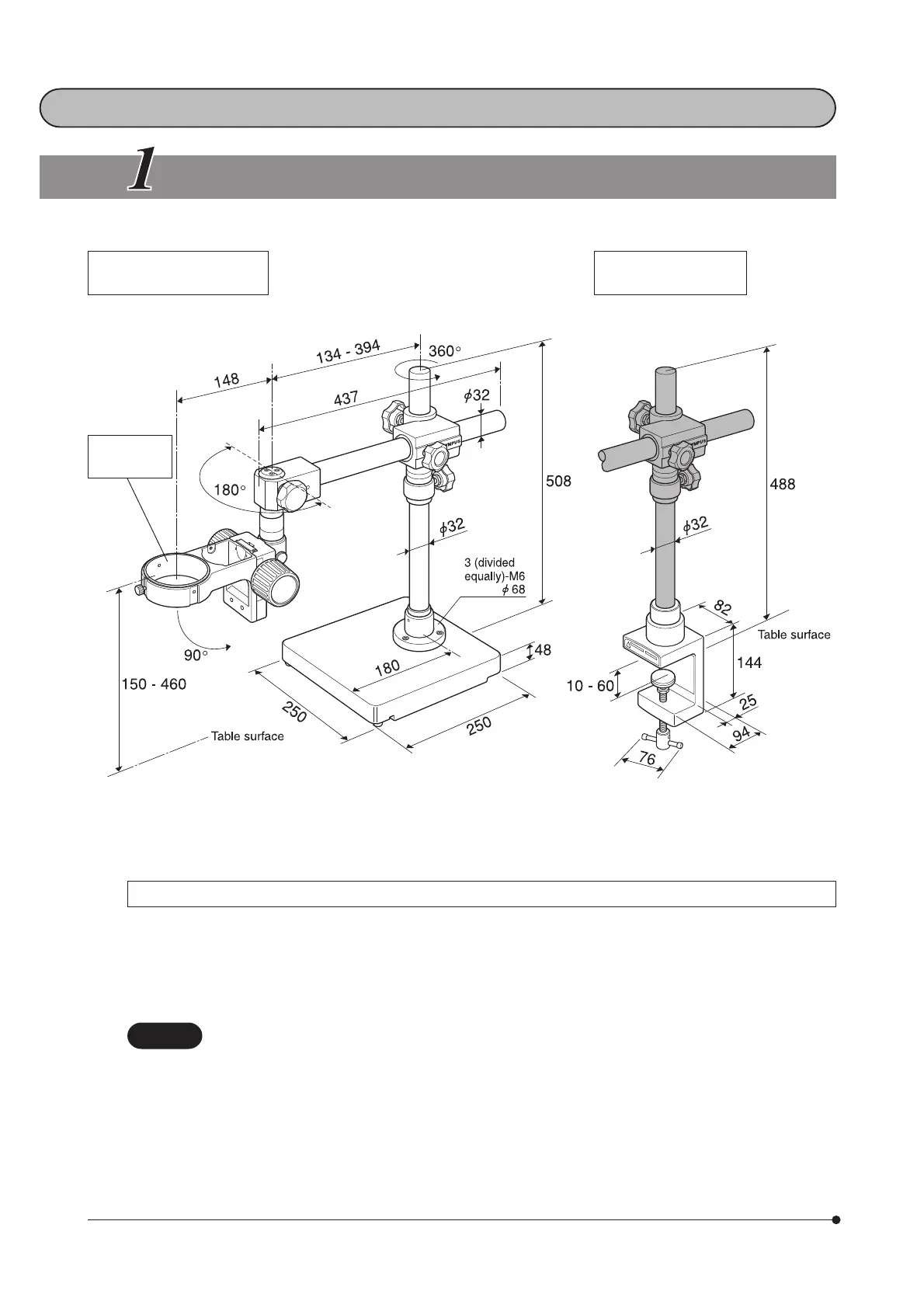

Universal Stand Type 1
SZ2-STU1
Bonder Arm
SZ2-STB1
· Base plate weight: 17.5 kg
· Total weight: 25.4 kg
(including the 0.9 kg bonder arm)
Table Clamp Stand
SZ2-STU3
(The shaded parts are identical to the
SZ2-STU1.)
· Clamp section weight: 2 kg
· Total weight: 9.9 kg
(including the 0.9 kg bonder arm)
Mountable Modules
}To maintain the ESD protection performance, the following modules should also be provided with the ESD protection
performance.
· Microscope body: SZ2 series, SZX7, SZ series or SD/SF series
· Oblique illumination system: LSGA (mountable on the SZ2-STB1)
· Other modules mounted on the microscope body
CAUTION From the viewpoint of safety, it is prohibited to mount the photography unit on the stand.
