Olympus U-LGPS - Nomenclature of Main Operating Portions

10
1

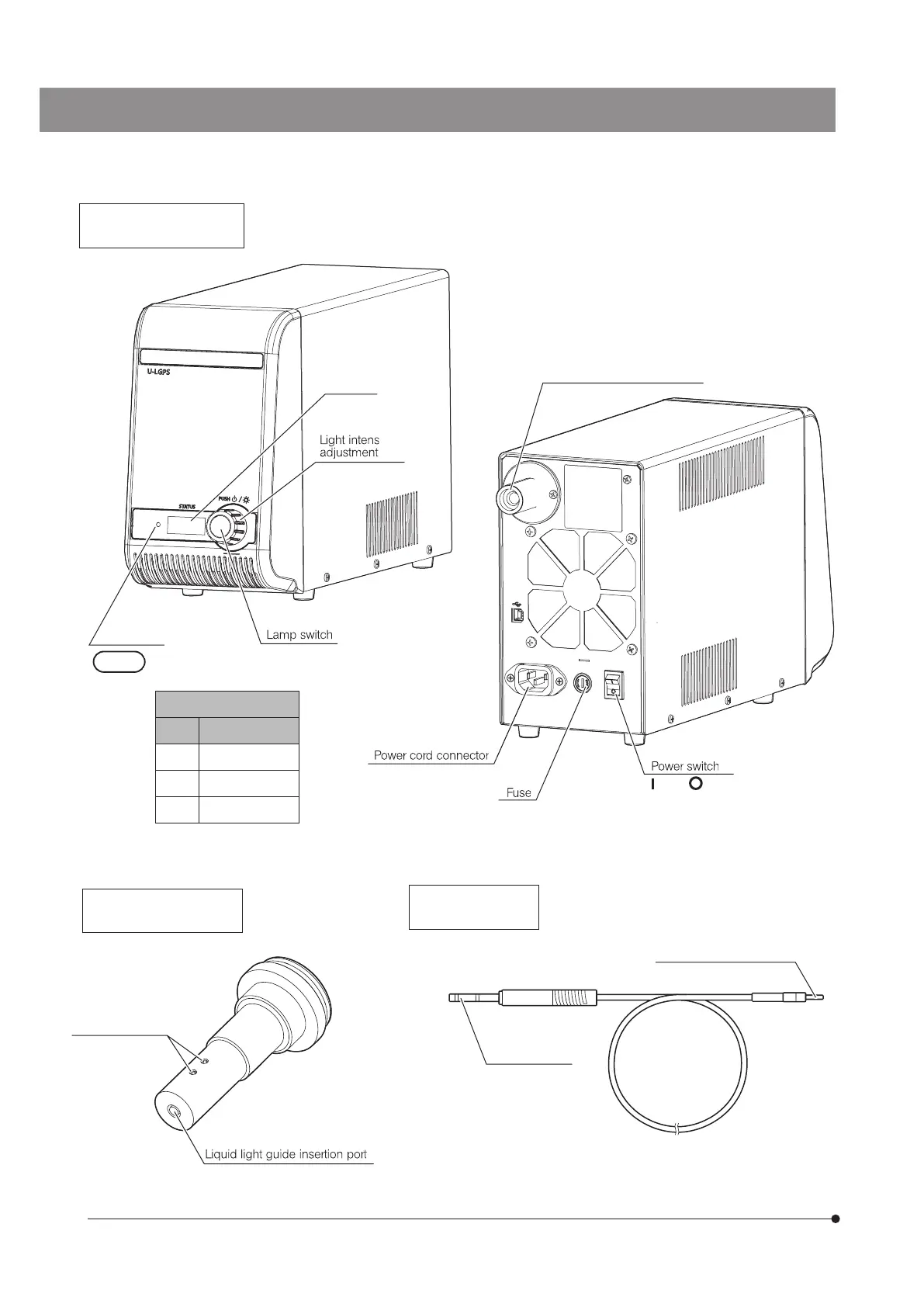

1 Nomenclature of main operating portions
This section describes the nomenclature of main operating portions of U-LGPS, U-LLG150/U-LLG300 and U-LLGAD.
LED and LDP Light Source
U-LGPS
Liquid light guide adapter
U-LLGAD
Liquid light guide
U-LLG150/U-LLG300
Light intensity
adjustment dial
Lamp switch
Liquid light guide insertion port
Power cord connector
Power switch
(ON) / (OFF)
Light intensity
adjustment dial
Power switch
Power cord connector
Incidence side
connector
Clamping screw
Emission side connector
Liquid light guide insertion port
Liquid light guide insertion port
Fuse
Fuse
Pilot lamp
Color Status
Green Standby
Blue ON
Red Error *
Pilot lamp
The color of the pilot lamp
indicates the following status.
TIP
Lamp switch
Counter
* For procedures to recover from the error, see page 12.
