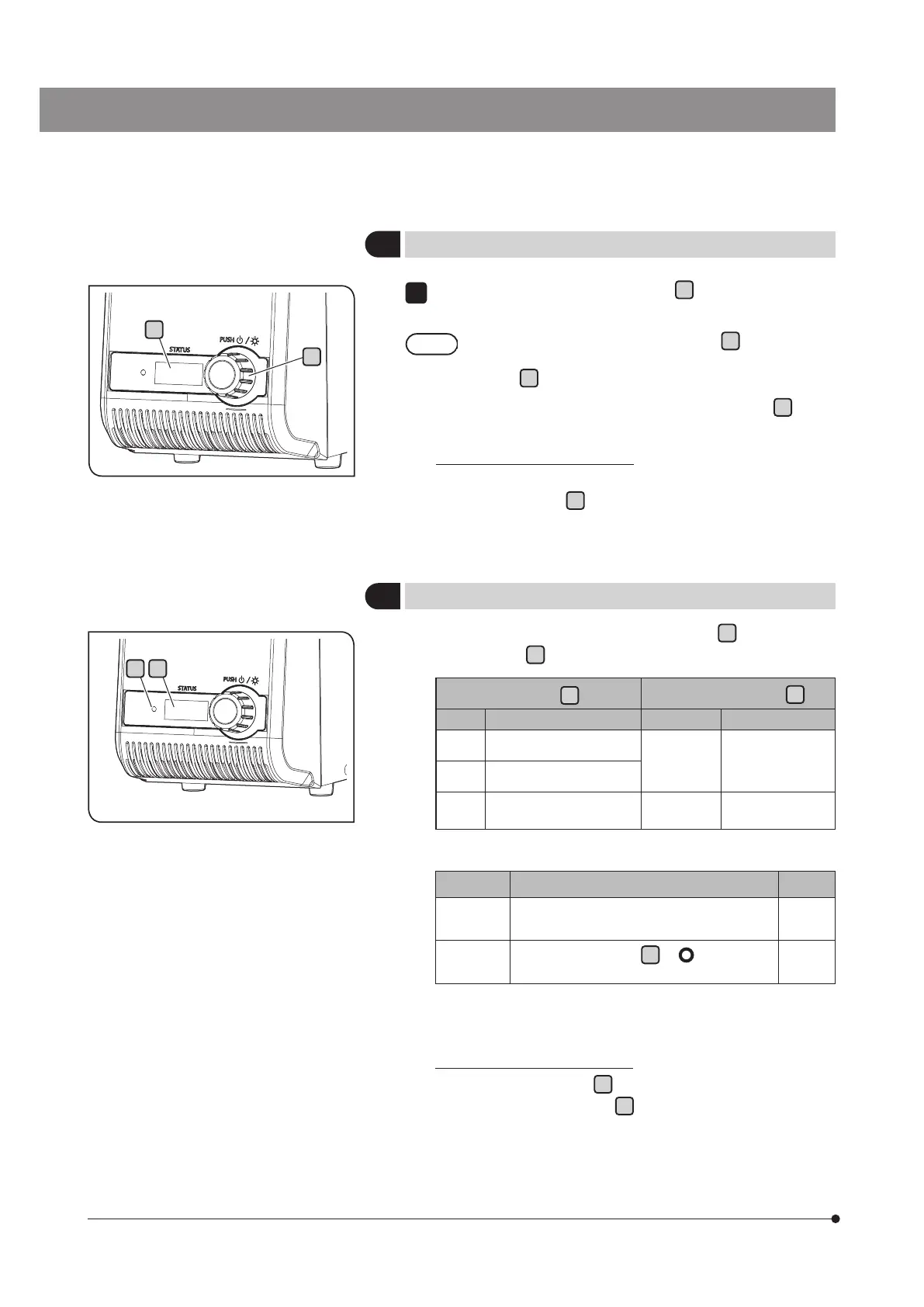

Olympus U-LGPS - Adjusting the Brightness; Pilot Lamp Color and Counter Display

12
Rotate the light intensity adjustment dial
E
to adjust the light
intensity.
· Rotating the light intensity adjustment dial
E
allows you to
change the numerical characters (Min: 010, Max: 100) on the
counter
D
in increments of 5.
· The larger the numerical characters on the counter
D
become, the brighter the lamp becomes.
When using U-LGPS control software:
· You cannot adjust the light intensity using the light intensity
adjustment dial
E
. Adjust the light intensity on the U-LGPS
control software.
1
TIP
3
Adjusting the brightness
E
D
The relation between the color of the pilot lamp
B
and the display
on the counter
D
are listed as follows.
4
Pilot lamp color and counter display
DB
Pilot lamp
B
Display on counter
D
Color Status Display Description
Green Lamp is OFF 010-100 Brightness of the
lamp when the
lamp is ON
Blue Lamp is ON
Red Error in U-LGPS (Lamp
turns OFF automatically)
c01-c23 * Details of the
error in U-LGPS
When using U-LGPS control software:
The color of the pilot lamp
B
changes as the table shown above,
and the display of the counter
D
always shows 000.
* The procedure to recover from the error is described below.
Display Recovery procedure Page
c06 Insert the liquid light guide into the liquid
light guide insertion port of U-LGPS properly.
15
Other than
c06
Set the power switch
A
to
(OFF), wait
for a while and turn ON the lamp.
11
If you cannot recover from the error according to the above
procedure, contact Olympus for assistance.
