Olympus U-LGPS - Attaching the Power Cord; Connecting the USB Cable

16
· Always use the power cord provided by Olympus. If the
proper power cord is not used, the electric safety and the
EMC (Electromagnetic Compatibility) performance of the
product cannot be assured. If no power cord is provided,
please select the proper power cord by referring to the
section “Proper selection of the power cord” at the end of
this instruction manual.
· Connect the power plug to the grounded 3-core outlet. If
the outlet is not grounded, the electric safety performance
intended by Olympus cannot be assured.
· Be careful not to apply excessive force to power cords.
· Be sure to set the main switch to
(OFF) before
connecting the power cord.

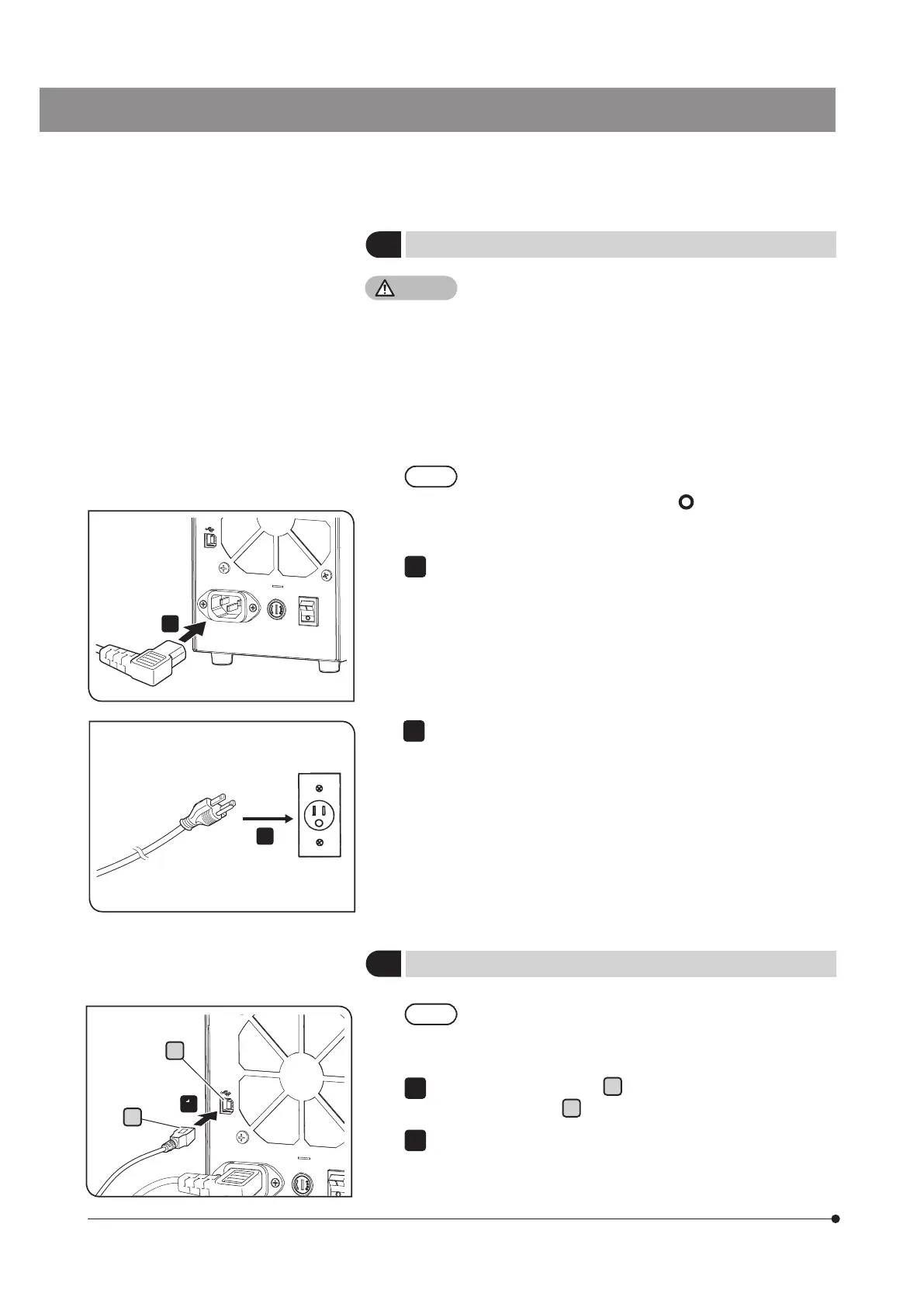

Insert the power cord completely to the end of the connector on the
back of U-LGPS.
CAUTION
NOTE
1
1
2
Attaching the power cord
2
Insert the power cord plug completely to the end of the power outlet.
2
The USB cable is connected when using U-LGPS control
software.
Insert the connector (B-type)
A
of the USB cable completely to the
end of the connector
B
on the back of U-LGPS.
Insert the connector (A-type) of the USB cable completely to the end
of the connector of the control PC.
TIP
1
2
3
Connecting the USB cable
1
1
B
A
