Preparation for Use
MOBILE WORKSTATION WM-DP1
13
4.3 Remote switch
The remote switch enables the power to the system components to be controlled from a
single point. The switch is located beneath the top tray and connects to the remote switch
connector on the separation transformer via a 2m cable.
The remote switch has an integral two-colour LED which illuminates whenever the
transformer is connected to the mains supply. Yellow indicates ‘standby’, green indicates
‘output on’.
NOTE
• The remote switch only controls the output socket on the transformer. To
switch OFF the input power supply, set the remote switch to its
‘stand-by’ position, then disconnect the mains connector from the wall
outlet socket.
• In ‘stand-by’ condition, the transformer consumes a small amount of
power, typically 4% of its full load rating. If it is anticipated that the
system will not be used for a significant period of time, it is
recommended that the mains connector is removed from the wall outlet
socket to conserve energy.
1. The mobile workstation is supplied with the remote switch connected to the separation
transformer and no assembly is required. However, check the connection (see Figure 4.3) is
secure before completing full installation.

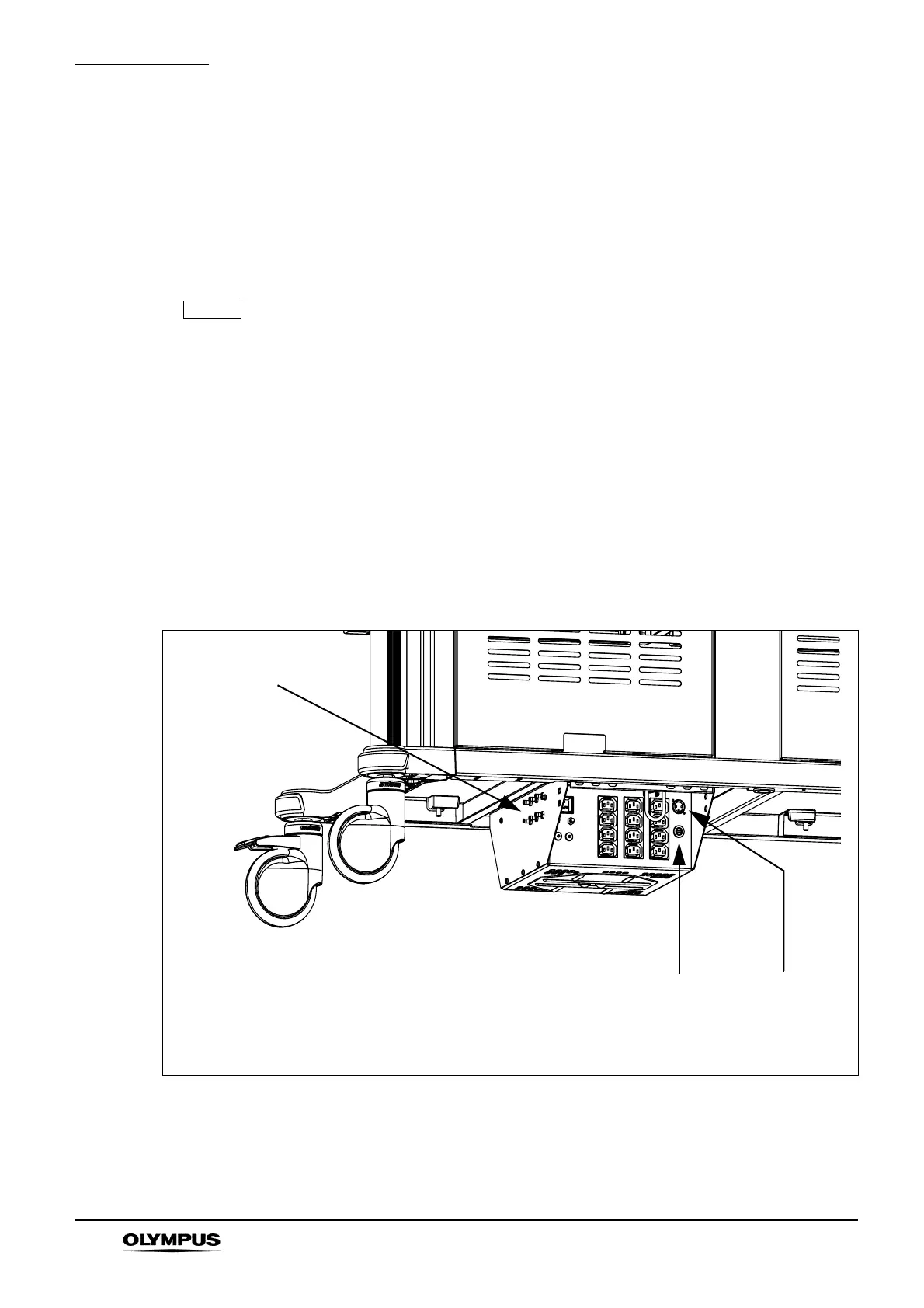

Figure 4.3
Potential
equalisation
terminals
Remote switch
connector
Fuse
