Preparation for Use
MOBILE WORKSTATION WM-DP1
17

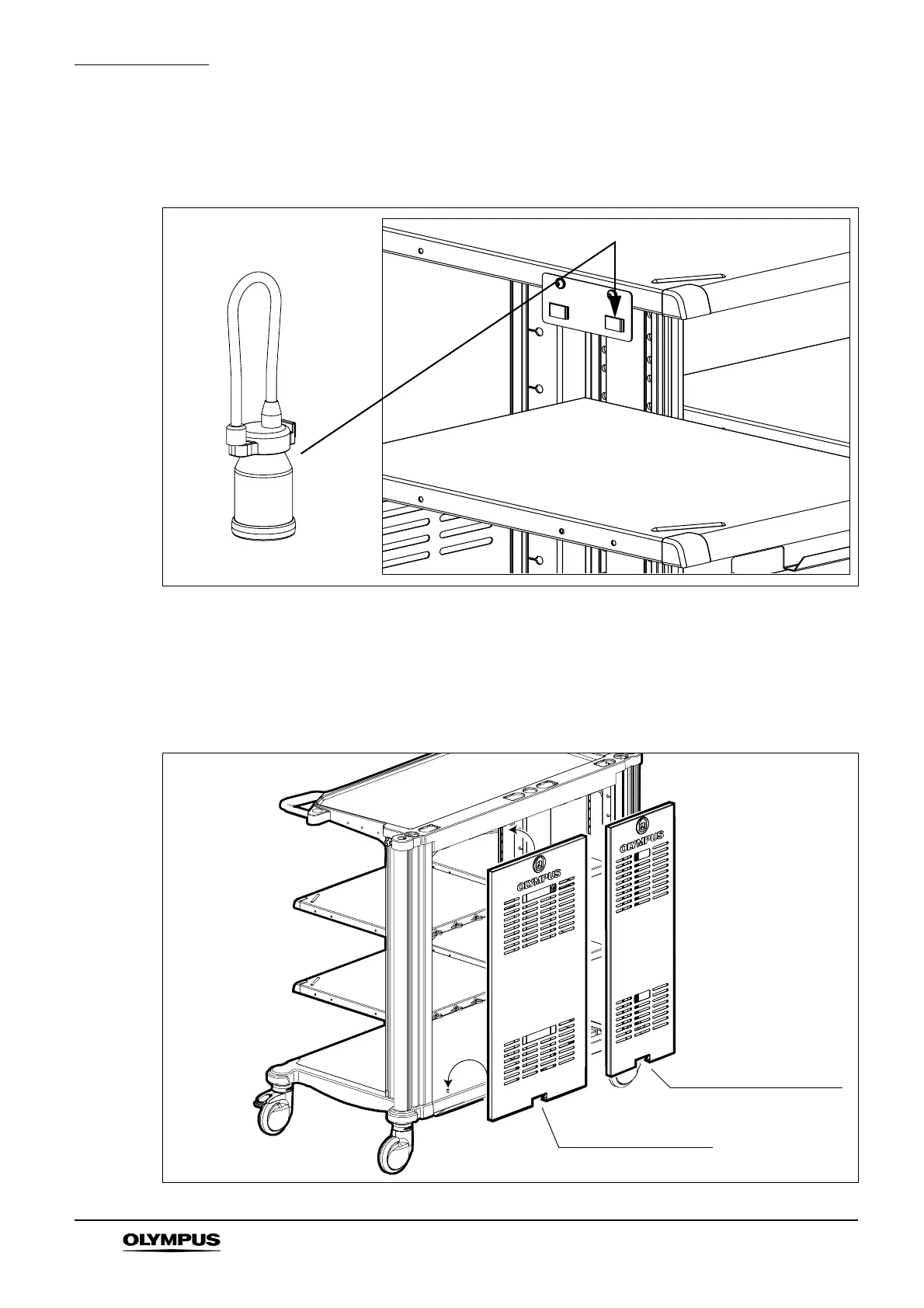

4.6 Water container holder
1. The WM-DP1 mobile workstation is fitted with a water container bracket to hold two water
containers (not supplied). The water container simply clips onto the bracket as shown in
Figure 4.6.
4.7 Rear panels
1. When installation of equipment is complete, lift each rear panel in turn onto the locating studs
on the base of the workstation (Figure 4.7) then push the top of the panel until the latch
engages with an audible click.
Figure 4.6
Figure 4.7
Rear panel - wide
Rear panel - narrow
