Preparation for Use
MOBILE WORKSTATION WM-DP1
16
CAUTION
• Check that all installed equipment operates correctly before using the
system ‘on patient’.
• The WM-T1 separation transformer incorporates a circuit to limit the
input current surge when power is applied. Operating an input power
ON/OFF switch several times in rapid succession may interfere with the
correct functioning of this circuit and may cause the mains power supply
protection to operate.
• Ensure that the video system centre is switched OFF when attaching or
removing the videoscope cable. Serious damage may result if the
videoscope is connected with the video system centre switched ON.
6. When equipment installation is complete, fit the rear door(s) taking care not to trap any
cables.
4.5 Cable hanger and blanking caps
NOTE
• If the cable hanger is not required, fit one blanking cap to the left hand
port in the top tray.
• Blanking caps are provided for each of the accessory fittings and cable
exits in the top tray. If accessories are fitted, the appropriate blanking
cap will not be required and should be stored in case of future use.
1. The blanking caps locate in the positions shown in Figure 4.5 and can be removed/fitted if
required.
2. The cable hanger locates into either left or right hand port in the top tray and is secured in the
required position using handwheel as shown in Figure 4.5.

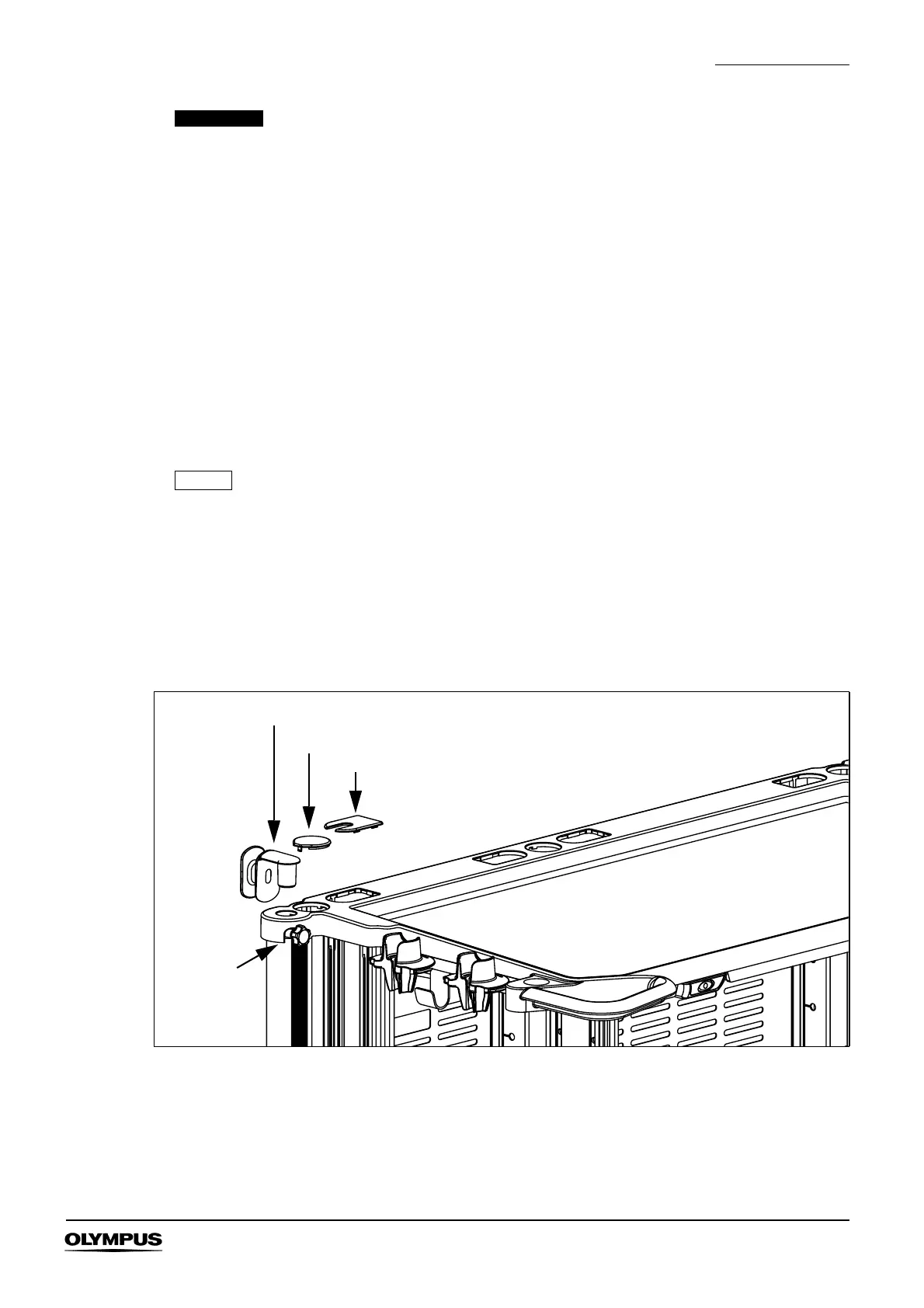

Figure 4.5
Cable winder (or blanking cap, scope port if cable winder is not used)
Blanking cap, monitor port
Blanking cap, cable port
Handwheel
