Preparation for Use
MOBILE WORKSTATION WM-DP1
15
2.
When all equipment is positioned on the workstation, install LCD monitor arms or control
panels as required according to their instructions and noting the configuration diagrams
given in Chapter 2 Warnings and Cautions.
MAJ-181 only: One MAJ-181 restrictor (supplied) must be fitted to each MAJ-181 being
fitted, up to a maximum of two. The restrictor provides additional stability by preventing the
monitor arm from swinging outside the footprint of the workstation. Refer to Section 4.8 for
assembly.
WARNING
Do not use the MAJ-181 LCD monitor arm on the workstation without a
restrictor fitted. Otherwise the workstation may lose stability and topple,
causing equipment damage and/or personal injury.
3. Check that all equipment power ON/OFF switches are in the OFF position and connect the
separation transformer (and light source, where separate) power supply cables to properly
grounded AC power outlets. The power outlets should be located such that they are not
obstructed when the mobile workstation is in its normal operating position. The remote switch
LED will illuminate yellow indicating ‘standby’.
4. Set the mobile workstation remote switch to the ON position, the LED will now illuminate
green indicating ‘output on’.
5. Set the power switches for the installed equipment to the ON position.

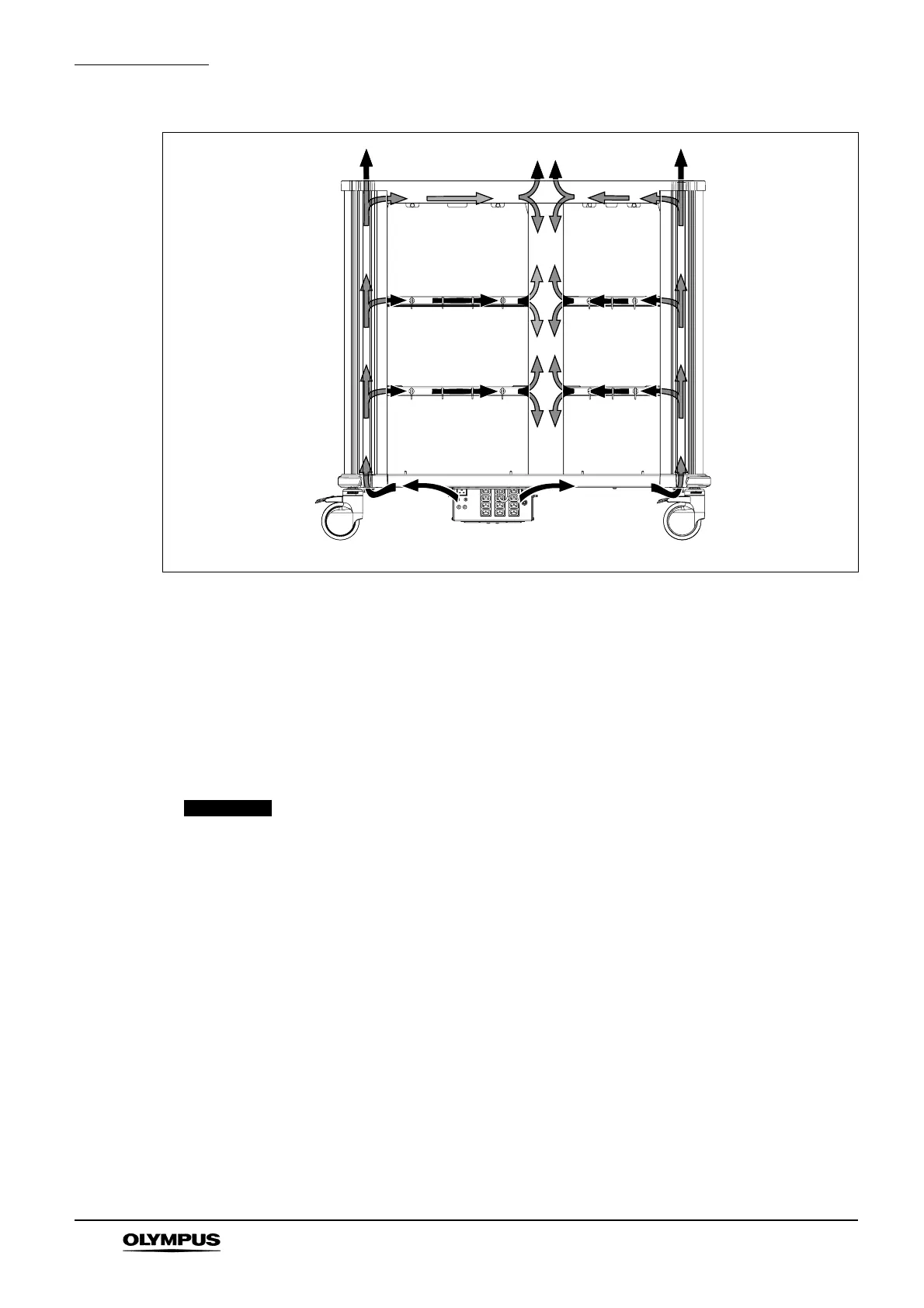

Figure 4.4
*****
*
*
*
*
*
*
* Denotes hidden cable ties
To Next Page
