OMAC B430 - Heating Jacket and Seal Flushing Connections; Mechanical Seal Overall Dimensions

15

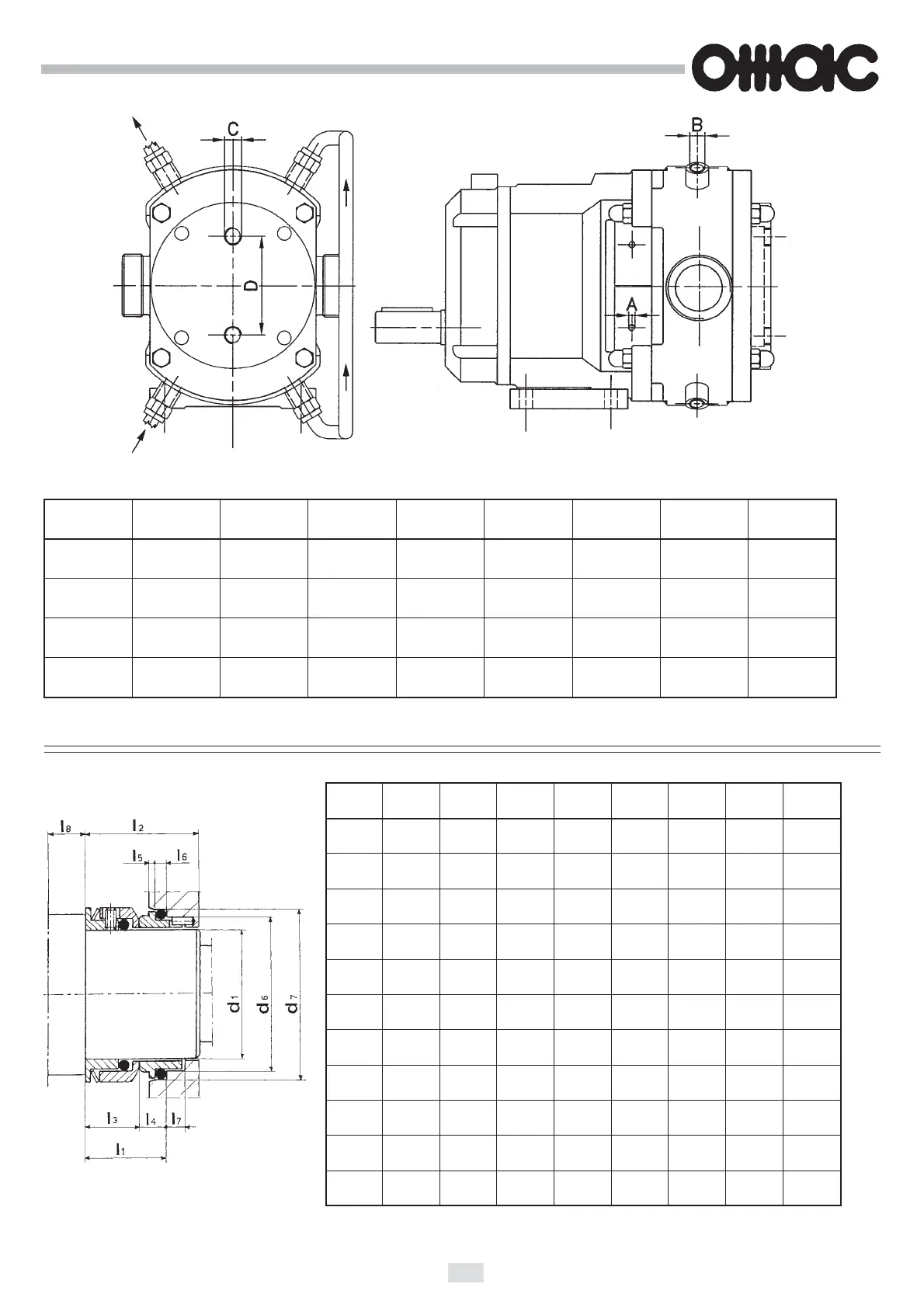

Tab. 15 - Heating jacket and seal flushing connections
Cylindrical GAS thread UNI 228 - Dimensions in mm
Tab. 16 - Mechanical seal overall dimensions in mm
B100 B1 B2 B3 B4 B470 - 490 B5 B6
A–1/8" 1/8" 1/8" 1/8" 1/8" 1/8" 1/4"
B–1/4" 1/4" 1/4" 1/2" 3/4” 3/4” 3/4"
C 1/8” 1/4" 1/4" 1/4" 1/2" 3/4” 3/4” 3/4"
D5675100 122 150 180 230 300
B100 B1 B2 B3 B4 B470-490 B5 B6
d
1 20 30 35 50 65 80 65 100
d
6 29 39 44 62 77 95 77 115
d
7 35 45 50 70 85 105 85 125
L
1 29,1 29,1 29,1 34,1 38,8 43,8 38,8 41,3
L
2 44 44 44 50 55,5 59 55,5 85
L
3 19,1 19,1 19,1 21,1 25,8 25,8 25,8 25,8
L
4 10 10 10 13 13 18 13 15,5
L
5 2222,52,5 3 2,5 3
L
6 55566767
L
7 99999999
L
8 2 9,5 14 14 16 21 45 56
