OMAC B430 - Seals for Pump Type B100

48

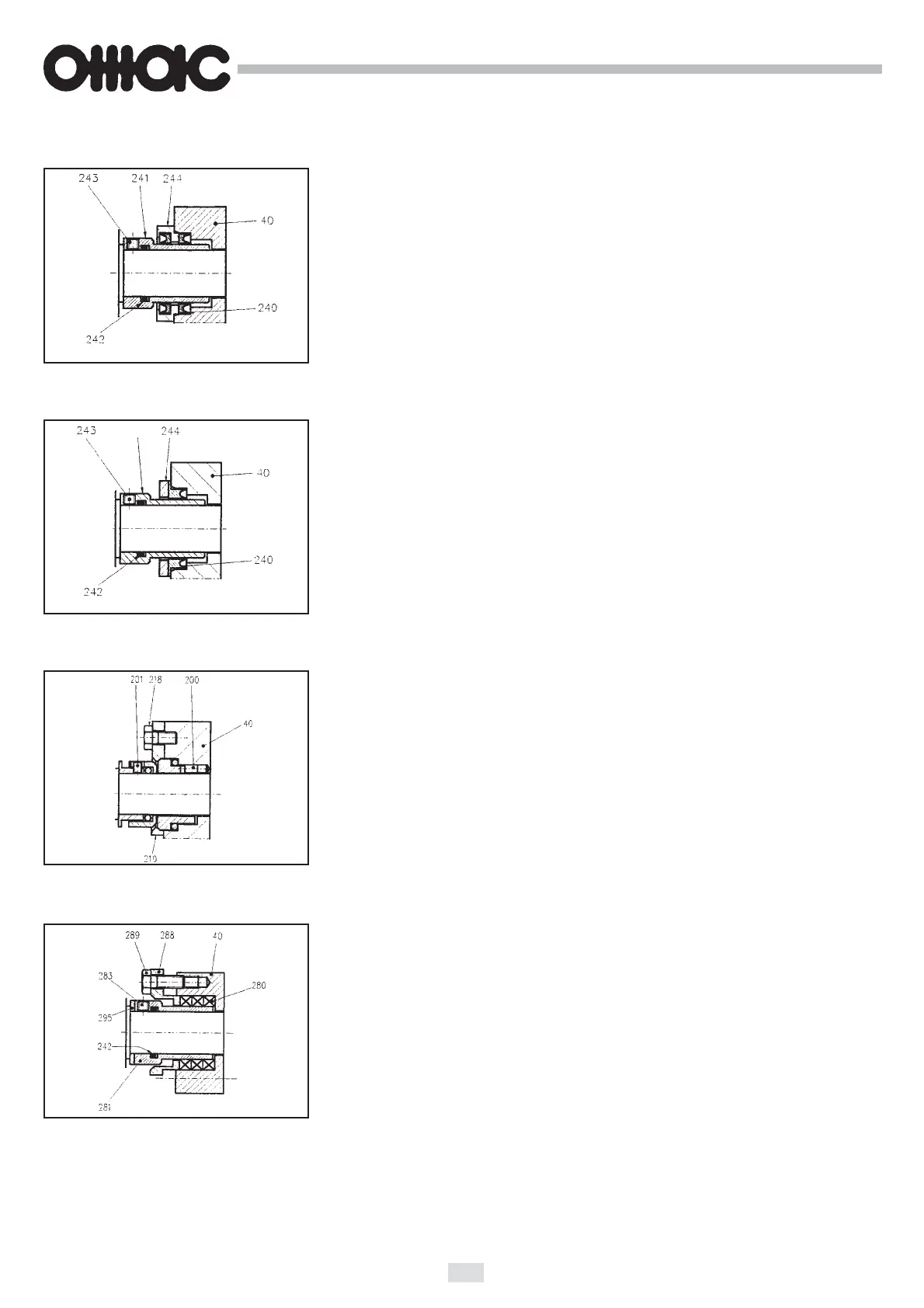

LIP SEAL
Pos. 242 = N.B.R. (Viton) O-ring
Pos. 240 = “UM” Viton rings
Fig. 42 Codice 0
SEALS FOR PUMP TYPE
Fig. 43 Codice 0
Fig. 44 Codice 3-4-5-8
S1 LIP SEAL
Pos. 242 = N.B.R. (viton) O-ring
Pos. 240 = “UM” polymer S1 rings
PACKING GLANDmmmmmmmmm
Pos. 242 = N.B.R. (Viton) O-ring
Pos. 280 = PTFE lubricated braid packing ring
BALANCED ROTARY MECHANICAL SEAL “U7K”
Code 3 • Stationary part = carbon
O-ring = EPDM (viton)
• Rotating part = aisi 316 s.s.
Code 4 • Stationary part = carbon
O-ring = EPDM (viton)
• Rotating part = tung. carbide
Code 5 • Stationary part = tung. carbide
O-ring = EPDM (viton)
• Rotating part = tung. carbide
Code 8 • Stationary part = silicon carbide
O-ring = EPDM (viton)
• Rotating part = silicon carbide
Fig. 45 Codice 1
