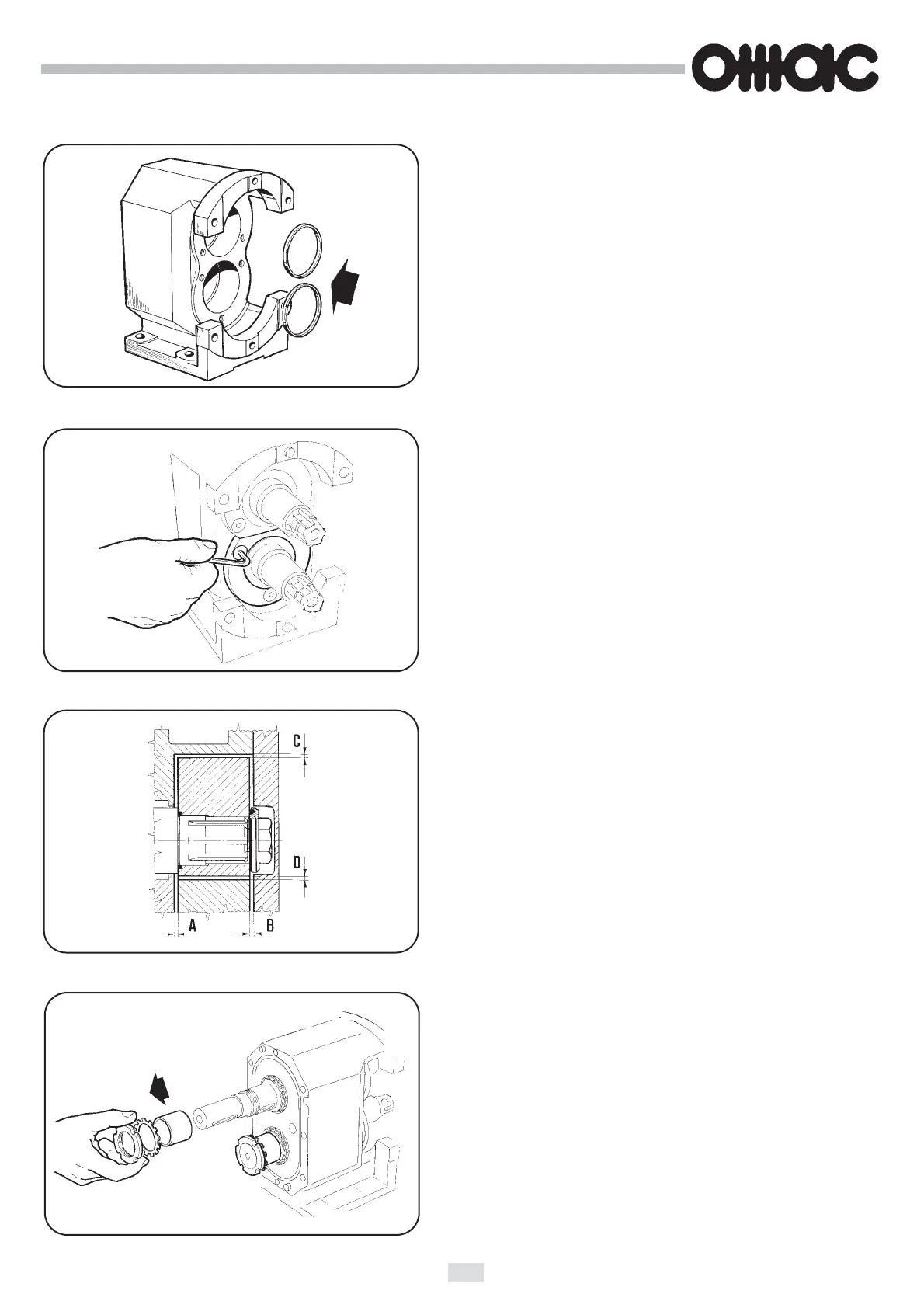

29. Set the spacers for axial shaft adjustment and assemble the
shafts with the already fixed bearings.
30. Set the O-ring gasket in its seat and assemble the bearing
retainers with oil lip seal already fixed. Assemble the rotor
case and rotors as previously described and check the plays
as per tab. 13.
31. If rotor clearances are not included in tolerances as per tab.
13, disassemble rotors, the rotor case and adjust the spacer
according to the requested dimension.
N.B. A spacer set can be requested to the manufacturer
company.
32. Remove the spacers used for dismounting and insert the keys
for gear drive in their seats with a lightly forced connection.
